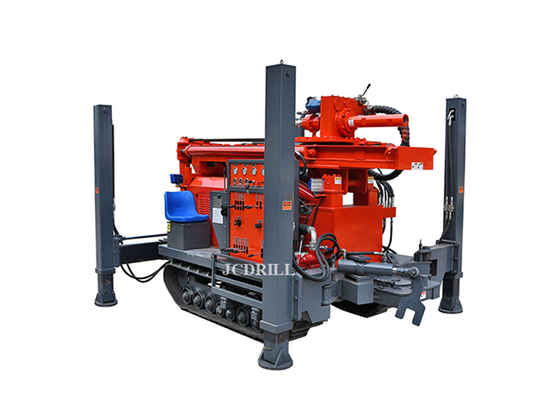

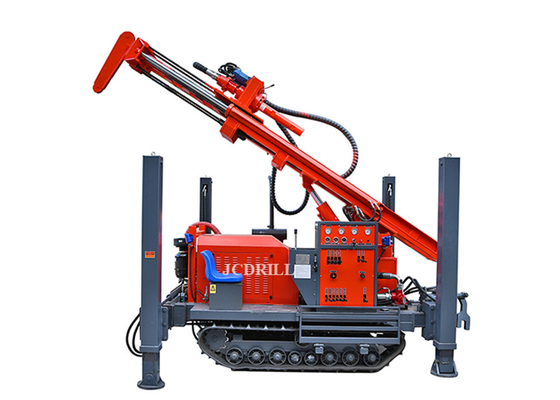

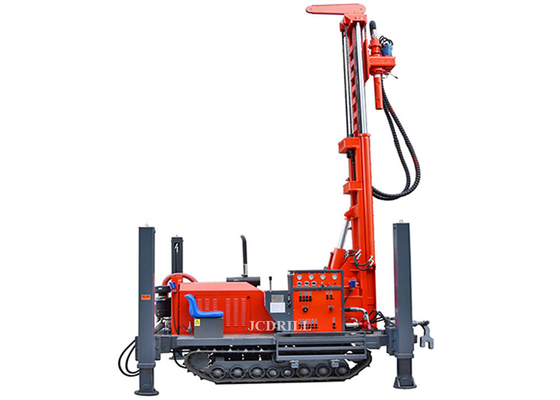

Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m CWD200

Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m  CWD200
Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m  CWD200 Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m  CWD200 Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m  CWD200

Large Image :  Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m CWD200

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 40HQ
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets/year

Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m CWD200

Hole Diameter: 90-450mm Hole Depth: 200m
Rotation Torque: 4500-6500Nm Rotation Speed: 0-90rpm
Drill Pipe Diameter: 76/89/102/114mm Drill Pipe Length: 3000mm
Geology Drilled: All Kinds Drilling Type: DTH & Mud Rotary
Feed Stroke: 3400mm Compressor Type: Rotary Screw/Movable
Engine Type: YUCHAI Mud Pump: BW450

CWD200 Multi-functional track mounted water well drilling rig

crawler drilling rig.jpg


CWD200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD200 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
drilling rigs.jpg
borehole drilling rig.png water well drilling rig.png JCDRILL drill rig.png
Right elevation Left elevation Front elevation



Specification Unit CWD200
Geology drilled   All Kind
Drilling Type   DTH & MUD
Crawler Type   Rubber Crawler(Steel Crawler Optional)
Operation System   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 200
Rotation Torque Nm 4500-6500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 14
Lifting force of Winch T 1.2
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUCHAI
Rated Horse power Kw 77
Compressor required(Optional)
Pressure Required Mpa 15-30
Air consumption m³/min 1.5-2.5
Mud Pump(Optional/Separate)
Model   BW250
Displacement L/Min 250
Discharge pressure (Mpa) Mpa 2.5-7
Net Weight Kgs 5400
Transportation dimension mm 4070*1700*2180
Ground Clearance mm 300


Hydraulic valve.jpg drilling rig engine.jpg       hydraulic pump.jpg
Famous Hydraulic Control Valve YUCHAI 70KW Engine High power hydraulic pump
stronge structure.jpg RUBBER CRAWLER.jpg     hydraulic winch.jpg
High Hydraulic Support Leg Heavy Duty Rubber Crawler 1.5Ton Hydraulic Tool Winch


drilling rig.jpg

borehole drilling rig.jpg drilling rig loading.jpg water drilling rig.jpg


Borehole Crawler Mounted Water Well Drilling Rig STEEL CRAWLER 200m  CWD200 15
