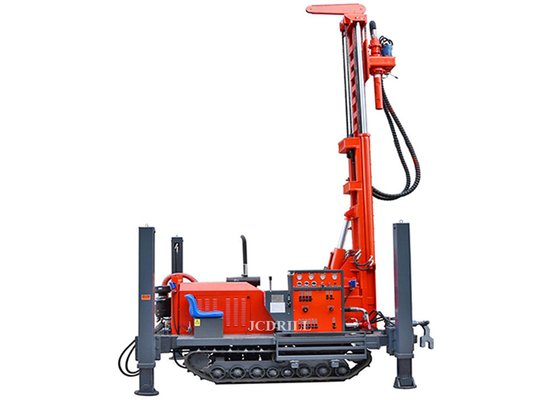

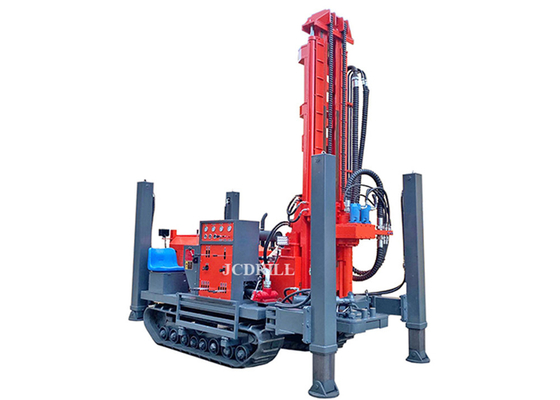

260m Depth Track CWD260 Water Drilling Machine Multifunctional

260m Depth Track CWD260 Water Drilling Machine Multifunctional
260m Depth Track CWD260 Water Drilling Machine Multifunctional 260m Depth Track CWD260 Water Drilling Machine Multifunctional 260m Depth Track CWD260 Water Drilling Machine Multifunctional 260m Depth Track CWD260 Water Drilling Machine Multifunctional 260m Depth Track CWD260 Water Drilling Machine Multifunctional 260m Depth Track CWD260 Water Drilling Machine Multifunctional 260m Depth Track CWD260 Water Drilling Machine Multifunctional

Large Image :  260m Depth Track CWD260 Water Drilling Machine Multifunctional

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD260
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

260m Depth Track CWD260 Water Drilling Machine Multifunctional

Description
Model Number: CWD260 Dimension: 4250*1900*2600m
Driling Diameter: 90-350mm Mud Pump: BW450
Drilling Depth: MAX.260 Weight: 6500KG
High Light:

260m water drilling machine

,

multifunctional water drilling machine

,

260m well drilling machine

CWD260 Multi-functional track mounted water well drilling rig

CWD260 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.


CWD260 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD260 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Quality Products

Beautiful Price

Excellent Service







COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE
STRONGER FRAME

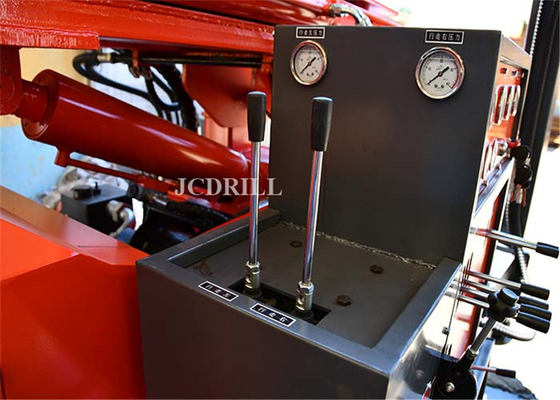

SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
water well drilling rig  CWD200 clawler mounted
water well drilling rig  CWD200 clawler mounted water well drilling rig  CWD200 clawler mounted water well drilling rig  CWD200 clawler mounted

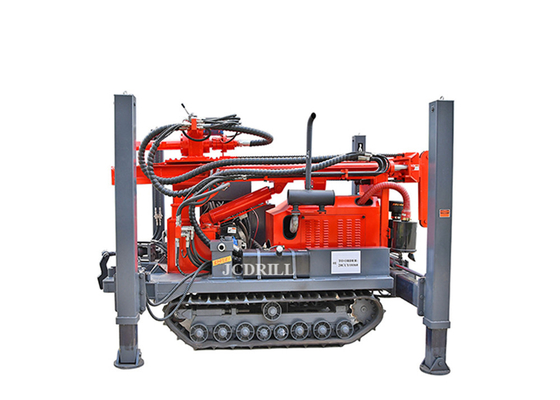

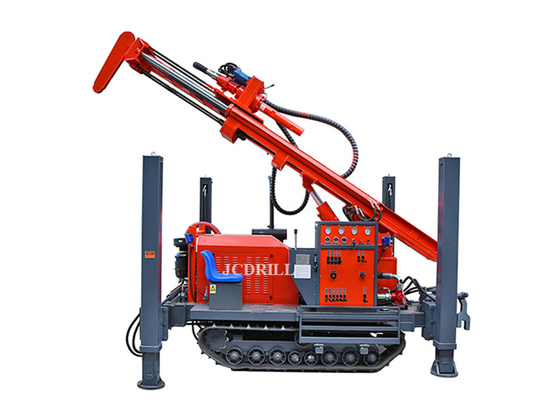

Right elevation Left elevation Front elevation



PRODUCT  SPECIFICATION

Specification Unit CWD260
Geology drilled   All kind
Drilling Type   DTH&Mud Rotary
Drill system and operation   Hydraulic
Hole Diameter mm φ90-φ350
Hole Depth m 260
Rotation Torque Nm 7000-9000
Rotation Speed rpm 0-90
Drill pipe diameter mm 89/102/114
Drill pipe length mm 3000
Max. Feed Speed M/min 18
Max. Lifting Speed M/min 5-20
Feed Stroke mm 3400
Max.Lifting Force Ton 13
Lifting force of Main Winch(Optional) T 4
Lifting force of Hoist Kgs 1500
Lifting Height of Tool Winch m 6
Engine
Diesel Engine type YUCHAI
Model YC4D95Z-T21
Rated Horse power Kw 85
Electrical System Volt 24
Compressor required
Compressor type Rotary Screw/Movable
Pressure Required Mpa 1.2-3.0
Air consumption m³/min 11-35
Mud Pump(Optional)
Type Hydraulic
Model BW450
Stroke mm 100
Displacement L/min 450
Discharge pressure(Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump Optional
Dimension
Net Weight Kgs 6500
Transportation dimension mm 4250*1900*2600
Ground Clearance mm 300
