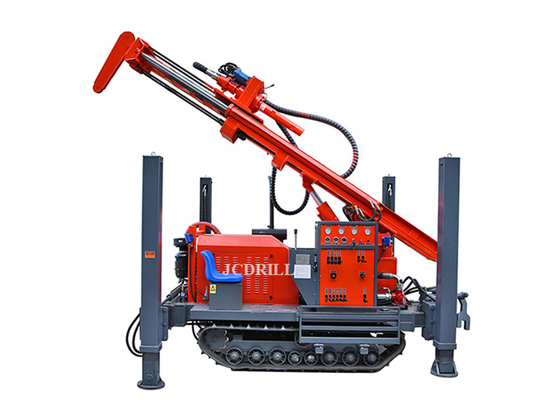

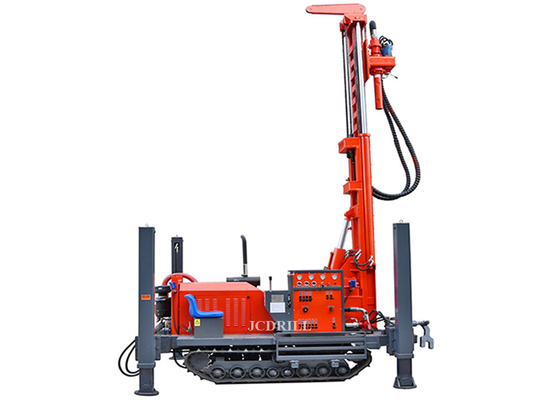

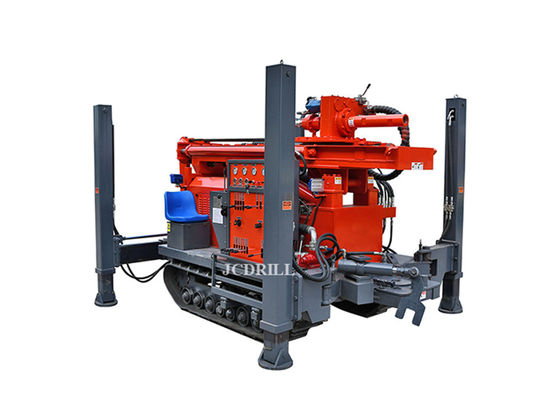

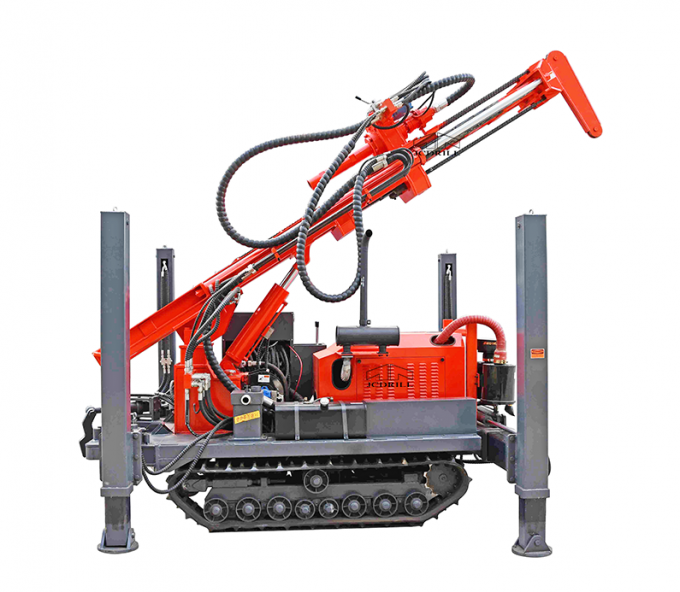

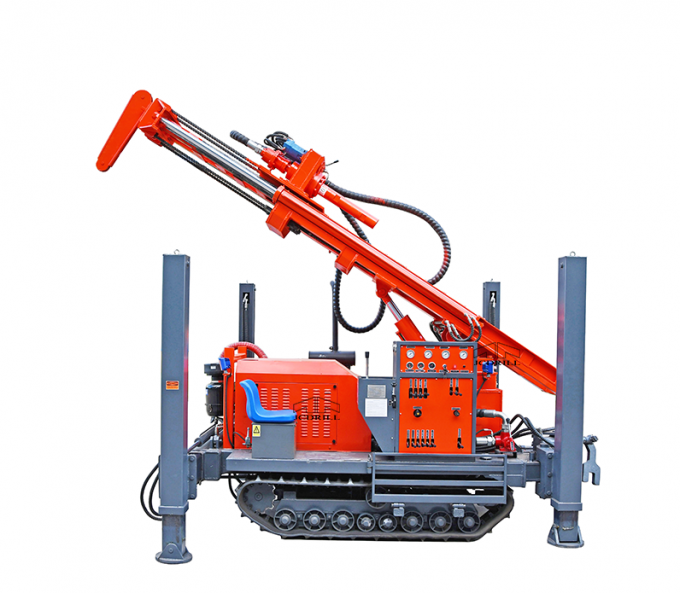

200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine

200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine
200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine 200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine 200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine 200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine 200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine 200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine

Large Image :  200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD200B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

200m Depth Crawler Track CWD200B Water Well Drilling Rig Machine

Description
Model Number: CWD200B Dimension: 3900*1700*2150m
Driling Diameter: 105-480mm Mud Pump: BW450
Drilling Depth: MAX.200m Weight: 5400KG
High Light:

200m water well drilling rig machine

,

ce water well drilling rig machine

,

200m well drilling rig

CWD200B Multi-functional track mounted water well drilling rig



CWD200B Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.


CWD200B crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD200B deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Quality Products

Beautiful Price

Excellent Service







COMPACT DIMENSIONS

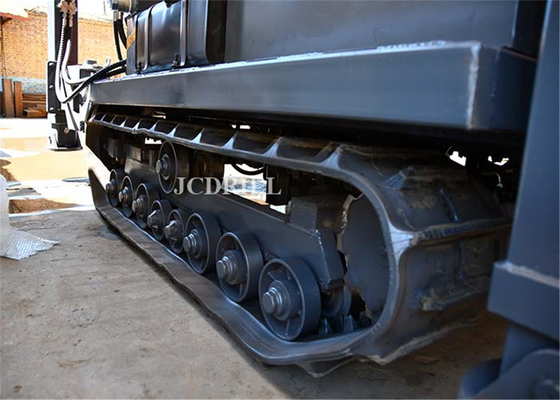

EXTENDING UNDERCARRIAGE
STRONGER FRAME

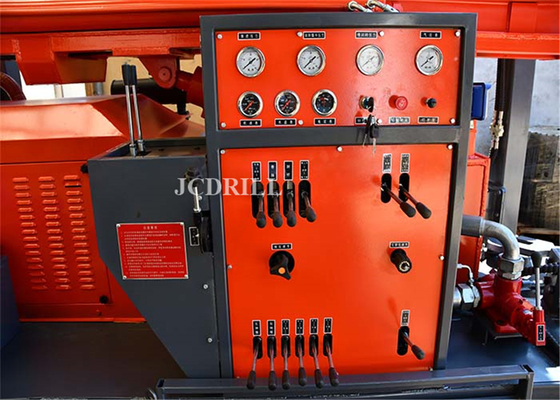

SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY

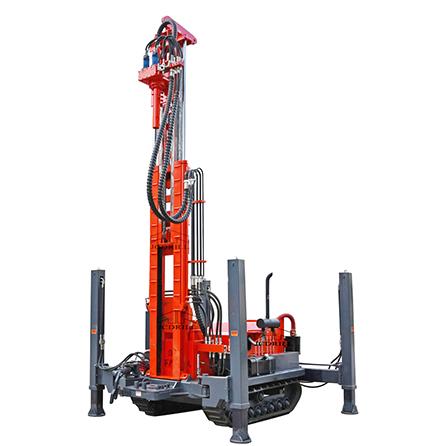

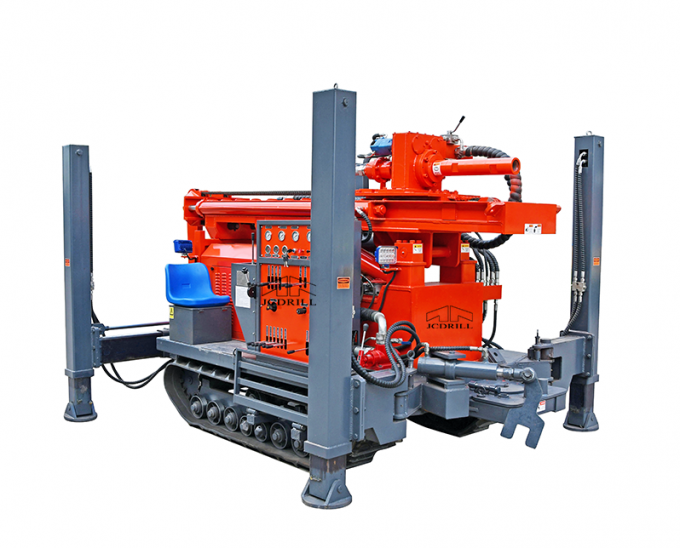

water well drilling rig  CWD200 clawler mounted
water well drilling rig  CWD200 clawler mounted water well drilling rig  CWD200 clawler mounted water well drilling rig  CWD200 clawler mounted
Right elevation Left elevation Front elevation



PRODUCTS SPECIFICATION

Specification Unit CWD200
Geology drilled   All kind
Drilling Type   DTH&Mud Rotary
Drill system and operation   Hydraulic
Hole Diameter mm φ90-φ450
Hole Depth m 200
Rotation Torque Nm 4500-6500
Rotation Speed rpm 0-90
Drill pipe diameter mm 76/89/102/114
Drill pipe length mm 3000
Max. Feed Speed M/min 18
Max. Lifting Speed M/min 5-12
Feed Stroke mm 3400
Max.Lifting Force Ton 14
Lifting force of Main Winch(Optional) T 4
Lifting force of Hoist Kgs 1500
Lifting Height of Tool Winch m 6
Engine
Diesel Engine type YUCHAI
Electrical System Volt 24
Rated Horse power Kw 77
Compressor required
Compressor type Rotary Screw/Movable
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional)
Type Hydraulic
Model BW450
Stroke mm 100
Displacement L/min 450
Discharge pressure(Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump Optional
Dimension
Net Weight Kgs 5400
Transportation dimension mm 3950*1700*2150
Ground Clearance mm 300
