Product Details:
|
| Model Number: | CWD1000 | Drilling Depth: | 1000m |
|---|---|---|---|
| Drilling Diameter: | 105-900mm | Drill Pipe Length: | 4.5m-6m |
| Usage: | Water Well Drilling | Drilling Methold: | DTH Drilling & Mud Drilling |
| Rotation Speed: | 0-100rpm | Engine Power: | 132kw |
| Drill Pipe: | 89/102/114mm | Mud Pump: | BW850 |
| Warranty: | 1year | Engine Brand: | Cummins |
| High Light: | 1000m portable water well drilling rig,1000m water well drilling rig machine,cummins portable water well drilling rig |
||

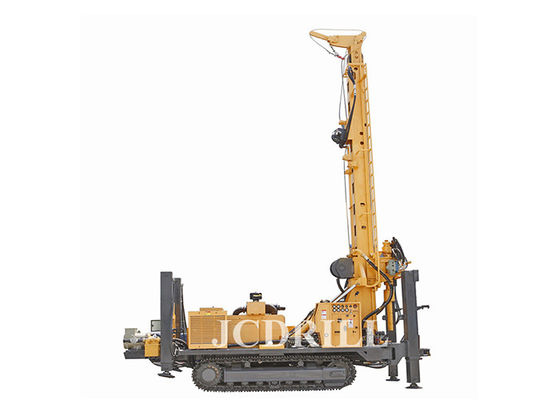

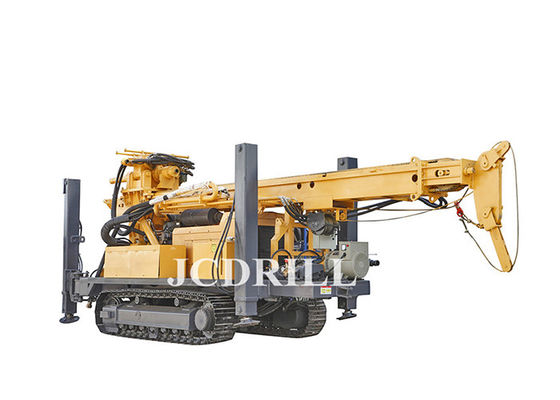

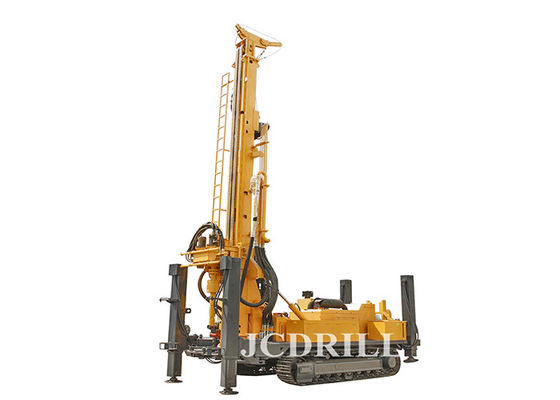

CWD1000 Heavy Duty 1000m Depth Track Water Well Drilling Machine
CWD1000 as water well drilling machine widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.The type of drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ105—Φ900 |
| 5 | Hole Depth | m | 1200 |
| 6 | Rotation Torque | N/M | 20000 |
| 7 | Rotation Speed | rpm | 0-140 |
| 8 | Drill pipe diameter | mm | 114/127 |
| 9 | Drill pipe length | mm | 6000 |
| 10 | Max. Feed Speed | M/min | 0-44 |
| 11 | Max. Lifting Speed | M/min | 5-23 |
| 12 | Feed Stroke | mm | 7600 |
| 13 | Max. Lifting force | Ton | 53 |
| 14 | Max.Pulldown Force | Ton | 10 |
| 15 | Lifting force of hoist | T | 1.5 |
| 16 | Lifting height of tool winch |
m | 40 |
| Engine | |||
| 17 | Diesel Engine type | CUMMINS | |
| 18 | Rated Horse power | Hp | 240 |
| 19 | Electrical System | Volt | 24 |
| Compressor required(Optional) | |||
| 20 | Compressor Type | Rotary Screw/Movable | |
| 21 | Pressure Required | Mpa | 1.65—8 |
| 22 | Air consumption | m³/min | 16-120 m³/min |
| Mud Pump(Optional) | |||
| 23 | Type | Hydrulic | |
| 24 | Model | BW850/5 | |
| 25 | Stroke | mm | 260 |
| 26 | Displacement | L/Min | 850 |
| 27 | Discharge pressure (Mpa) | Mpa | 5 |
| 28 | Suction tube diameter | mm | 76 |
| 29 | Discharge pipe diameter | mm | 51 |
| Dimension | |||
| 30 | Net Weight | T | 19 |
| 31 | Shipping Length | mm | 6500 |
| 32 | Shipping Width | mm | 2200 |
| 33 | Shipping Height | mm | 3200 |
| 34 | Ground Clearance |
mm | 300 |
Application
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
