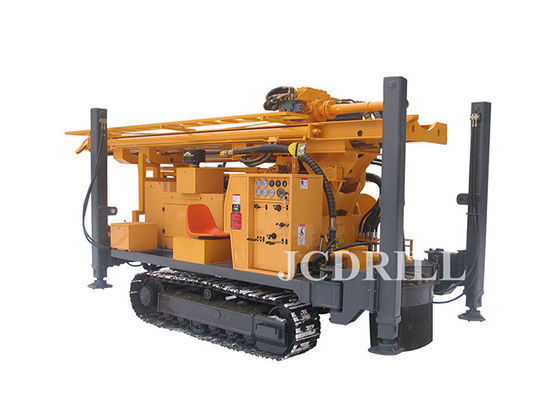

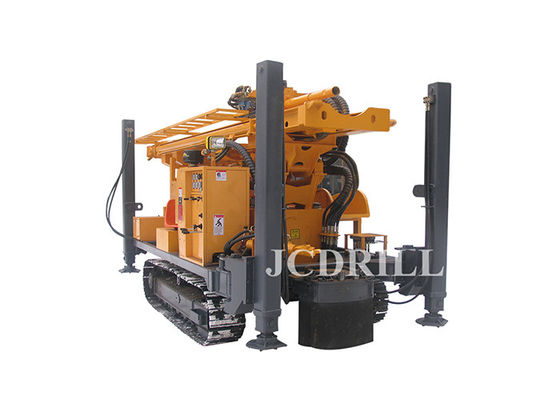

Crawler Moving 400m Small Portable Water Well Drilling Rigs

Crawler Moving 400m Small Portable Water Well Drilling Rigs
Crawler Moving 400m Small Portable Water Well Drilling Rigs Crawler Moving 400m Small Portable Water Well Drilling Rigs

Large Image :  Crawler Moving 400m Small Portable Water Well Drilling Rigs

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: CWD400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Export Packing
Delivery Time: One Month
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Year

Crawler Moving 400m Small Portable Water Well Drilling Rigs

Condition: New Power Type: Diesel Engine
Drilling Depth: 400m Drilling Diameter: 105-450mm
Rotation Torque: 9200N.M Rotation Speed: 0-100 RPM
Drill Pipe Dia: 89/102/114/127mm Drill Pipe Length: 3000mm
Lifting Force: 20ton Diesel Engine: 112KW
Dimension: 6800x2250x2650mm Weight: 12 T
Color: Customized Drilling Method: DTH&Mud Drilling
High Light:

crawler small portable water well drilling rigs


crawler moving portable drilling rig for water well


400m small portable water well drilling rigs

CWD400 JCDRILL Portable Crawler Moving Water Well Drilling Machine                                                                                                              CWD400 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well
drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in
industry and agriculture, national defense building foundation, geological exploration, geothermic well and other
foundation working, it is popular at home and abroad.
CWD400 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air
DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the
offstage efficiency is ten times than traditional rotary drilling.
CWD400 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer,
and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be
discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions

Crawler Moving 400m Small Portable Water Well Drilling Rigs 0


1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary
time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system
are set up on the chassis.
4.It's a hydraulic rotary drilling rig with directional circulation. It can equipped with BW450/BW850 mud pump which
adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a Cummins engine,112kw Cummins engine drives the large displacement high
pressure plunger pump and it is characterized by powerful dynamic and stable performance.

5.The rotary head,have two gear,rotation speed is 0-40 and100rpm stepless adjustment and the rotary torque is 9200Nm.

6.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7.It can set up a generator which is convenient to welding or illuminate for work at night.

8.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering
9.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case
and mud pump clutch system are also hydraulic operated.

10.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m
and 8m lifting height.
11.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
12.Competitive in price, low cost of maintain.

Crawler Moving 400m Small Portable Water Well Drilling Rigs 1


1.Overall parameters
Drilling depth 100-1000 m
Maximum open hole caliber 140-450 mm
Diameter of drill rod 89/102/114/127 mm
Drilling Type DTH & Mud Rotary
Drilling angle 90~75
Rotation Speed 0-120 RPM
Lifting Force 5-25 T
Weight 9-20 T
2.Diesel Engine
Brand Yuchai/Cummins
Power 80-140KW
Net Weight 12 T
Shipping Length 6800mm
Shipping Width 2250mm
Shipping Height 2650mm
Ground Clearance 300mm

Packing Delivery

Crawler Moving 400m Small Portable Water Well Drilling Rigs 2
