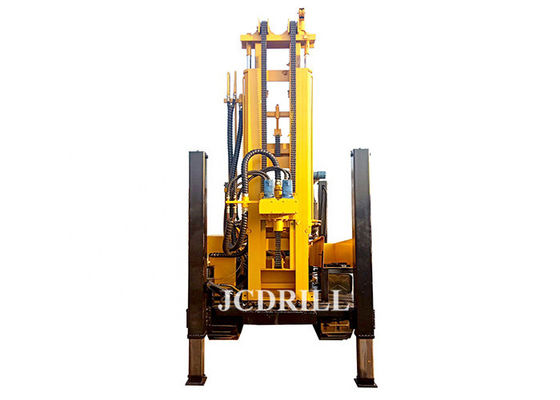

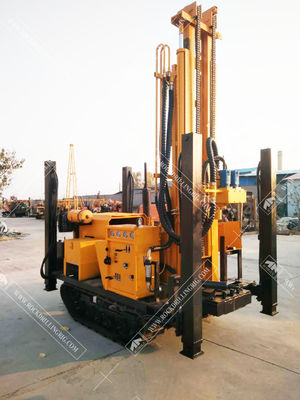

55kw CE Crawler Hydraulic Water Well Drilling Rig

Drilling Water Well Hydraulic Crawler Drilling Machine for Sale
CWD180 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	90-305
5	Hole Depth	m	180
6	Rotation Torque	N/M	4200-5600
7	Rotation Speed	rpm	0-100
8	Drill pipe diameter	mm	76/89
9	Drill pipe length	mm	3000
10	Max. Feed Speed	M/min	0-25
11	Max. Lifting Speed	M/min	5-14
12	Feed Stroke	mm	5200
13	Max. Lifting force	Ton	12
14	Max.Pulldown Force	Ton	4
15	Lifting force of hoist	T	1.5
16	Lifting height of tool winch	m	40
Engine
17	Diesel Engine type	QUANCHAI
18	Rated Horse power	Kw	55
19	Electrical System	Volt	24
Compressor required(Optional)
20	Compressor Type	Rotary Screw/Movable
21	Pressure Required	Mpa	1.05—4.5
22	Air consumption	m³/min	16—60
Mud Pump(Optional)
23	Type		Hydrulic
24	Model		BW250
25	Stroke	mm	110
26	Displacement	L/Min	250
27	Discharge pressure (Mpa)	Mpa	2.5-7
28	Suction tube diameter	mm	76
29	Discharge pipe diameter	mm	51
Dimension
30	Net Weight	T	4.8
31	Shipping Length	mm	3600
32	Shipping Width	mm	1700
33	Shipping Height	mm	2150
34	Ground Clearance	mm	300

Characteristics
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a diesel engine,55kw Quanchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,have two gear,rotation speed is 0-100rpm and the rotary torque is 4200-5600Nm.
Our Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on.
