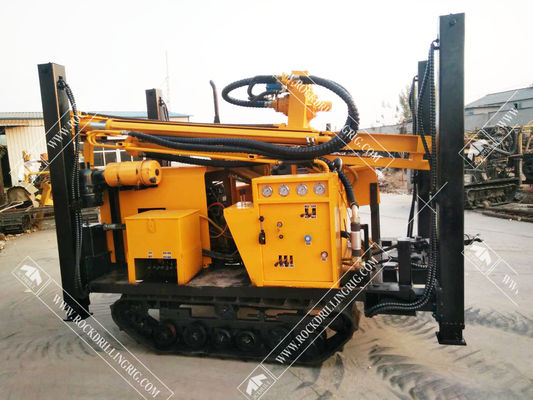

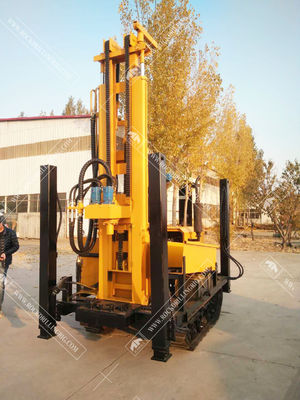

Small Fully Hydraulic Crawler Drilling Machine For 180m

Small Fully Hydraulic Crawler Drilling Machine For 180m
Small Fully Hydraulic Crawler Drilling Machine For 180m Small Fully Hydraulic Crawler Drilling Machine For 180m Small Fully Hydraulic Crawler Drilling Machine For 180m

Large Image :  Small Fully Hydraulic Crawler Drilling Machine For 180m

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 40HQ
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets/year

Small Fully Hydraulic Crawler Drilling Machine For 180m

Description
Net Weight: 4.8T Length: 3600mm
Width: 1700mm Height: 2150mm
Engine: QUANCHAI Rated Horse Power Of Engine: 55KW
Electrical System: 24 Volt Drill Pipe Diameter: 76/89mm
Drill Pipe Length: 3000mm Max. Feed Speed: 0-25m/min
Max.Lifting Force: 12ton
High Light:

180m hydraulic crawler drilling machine

,

crawler drilling machine fully hydraulic

,

small hydraulic crawler drilling machine

Small Fully Hydraulic Crawler Type of Water Well Drilling Machine for Drilling 180m

CWD180 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

Small Fully Hydraulic Crawler Drilling Machine For 180m 0Small Fully Hydraulic Crawler Drilling Machine For 180m 1

Specification

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm 90-305
5 Hole Depth m 180
6 Rotation Torque N/M 4200-5600
7 Rotation Speed rpm 0-100
8 Drill pipe diameter mm 76/89
9 Drill pipe length mm 3000
10 Max. Feed Speed M/min 0-25
11 Max. Lifting Speed M/min 5-14
12 Feed Stroke mm 5200
13 Max. Lifting force Ton 12
14 Max.Pulldown Force Ton 4
15 Lifting force of hoist T 1.5
Small Fully Hydraulic Crawler Drilling Machine For 180m 216 Lifting height of tool winch m 40
Engine
17 Diesel Engine type QUANCHAI
18 Rated Horse power Kw 55
19 Electrical System Volt 24
Compressor required(Optional)
20 Compressor Type Rotary Screw/Movable
21 Pressure Required Mpa 1.05—4.5
22 Air consumption m³/min 16—60
Mud Pump(Optional)
23 Type   Hydrulic
24 Model   BW250
25 Stroke mm 110
26 Displacement L/Min 250
27 Discharge pressure (Mpa) Mpa 2.5-7
28 Suction tube diameter mm 76
29 Discharge pipe diameter mm 51
Dimension
30 Net Weight T 4.8
31 Shipping Length mm 3600
32 Shipping Width mm 1700
33 Shipping Height mm 2150
34 Ground Clearance mm 300

Small Fully Hydraulic Crawler Drilling Machine For 180m 3
