|Type:||Casing Shoe Diamond Core Bit||Available Size:||BW , NW , HW , PW / NQ , HQ , PQ|
|Usage:||Mining Exploration Diamond Drilling||Product Name:||Core Drill Bits|
|Working Layer:||6mm, 8mm,10mm,12mm||Color:||Black|
|Applicaion:||All Conventional And Wireline Core Barrel|
diamond core drill bit,
casing shoe bit

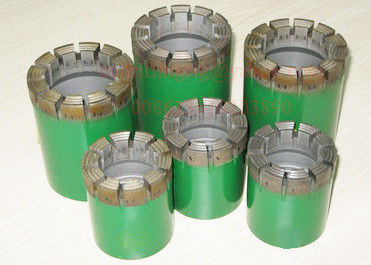

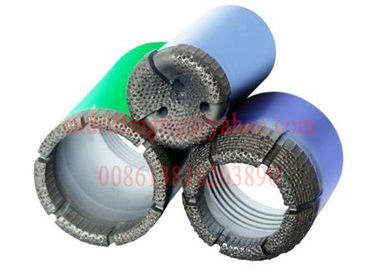

NW HW Diamond Casing Shoe Diamond Core Bit , Durable Impregnated Diamond Core Drill Bit
Casing shoes and rod shoes are designed to drill in casings or rods in difficult over burden material to position the rods or casing in the drilling hole.
The interior is smooth and sufficiently large enough to allow free passage of coring equipment such as bits, reaming shells, core barrels and drill rods.
They are manufactured to withstand difficult drilling conditions: for example, unconsolidated overburdened or broken abrasive materials.
Whatever form of casing is, casing shoe must be fitted on top of casing when put into drill hole. The edges of casing shoe exposed to rocks are very few. Casing shoes are connected with casing by means of thread.
Outer diameter of casing shoe is same as bit’s,with its inner diameter equal to or slightly less than casing’s. Such design make it is possible for core tube, drill rod and core barrel to pass through in order to extend geological exploration

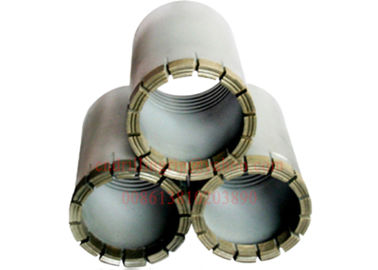

Casing Shoe Bit
The inside diameter of the casing shoe bit is not set with diamonds sometimes(surface set Type) and flush with the inside diameter of the casing. Basically,the corresponding size of Drill Bits and Core Barrels have to get through the inner diameter of the casing shoe bits freely.
The inside diameter of the Casing Bits are set with diamonds and is smaller than the Casing Shoe Bits. It will not permit the passage of the core barrel.
Main functions of casing shoe:
1): protect casing ends from distortion.
2): help casing pass through stratum to bed rock.
3): carry mud to earth surface.
4): help down-pass of casing when drill rod is in hole
cashing shoe bits
Manufacture of diamond drilling tools casing shoes Q W X Metric Series in china for many years ,with ISO 9001 certificate and quality control.
|Dimensions of Core Bits|
|Q Series||AQ, BQ, NQ, NQ2,NQ3,HQ, HQ2,HQ3,PQ,PQ2,PQ3|
|T, TT, T2&TB Series||T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 Core line, T2-86, T2-86 Core line, T2-101,T2-101Core line|
|T6 Series||T6-76, T6-86, T6-101, T6-116, T6-131, T6-146|
|B Series (ISO3552-1)||B36, B46, B56, B66, B76, B86, B101, B116, B131, B146|
|WF Series:||HWF, PWF, SWF, UWF, ZWF|
|WT Series:||RWT, EWT, AWT, BWT, NWT, HWT (Single Tube/Double Tube)|
|WG Series:||EWG, AWG, BWG, NWG, HWG (Single Tube/Double Tube)|
|WM Series:||EWM, AWM, BWM, NWM|
|N Guage Core Bits||WLN, WLN2, WLN3, NMLC, NWG NX, NWM, NWT, TNW|
|H Gauge Core Bits||WLH, WLH-3.830, WLH-3.895, WLH3, WLHTT, HMLC, HWF-long, HWM,HWT|
All Chinese Sizes
Casing shoes Size from , BW, NW, HW, PW (include NQ, HQ, PQ drilling rod casing shoe)
1. A hard matrix is durable for use in changing formations with both high and low thrust drilling;
2. A medium-hard matrix for use in moderately abrasive and fractured formation.
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
