Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ

Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ
Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ

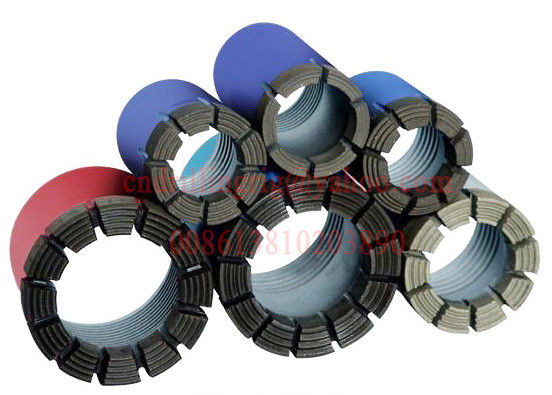

Large Image :  Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: HQ3
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year

Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ

Description
Material: Synthetic Diamond, Natural Diamond Available Size: Q Series, T2 Series, T6 Series
Usage: Mining Exploration Diamond Drilling Crown Profile: Standard
Waterways: Standard /Face Discharge /Turbo /Spiral Thread: DCDMA Standard
Color: Black Applicaion: All Conventional And Wireline Core Barrel
Crown Height: 12mm 16mm 25mm Matrix Hardness: F1-F14
Standard: DCMDA Weight: 2.2kgs
High Light:

diamond core drill bit

,

casing shoe bit

PCD NQ HQ PQ Polycrystalline Compact Diamond Core Bit , DCDMA Standard





Characteristics

1. There are several sizes of PDC cutters with high productivity and long service life.
2. Wearing cutters can be replaced to be utilized again.
3. PDC coring bits are of all standard drilling sizes and many region-specific sizes.



Specification

PDC Drill Bit
This PDC drill bit is a fixed pattern with a designed type of matrix on the top and equipped with natural diamonds on both sides. There are two types of the PDC drill bits: coring and non-coring drill bits. They are used to drill coal, gas and oil in soft to medium hard forms. The PDC drill bits consist of: 28mm, 32mm, 42mm, 45mm, 48mm, 56mm, 65mm, 76mm, 85mm, 96mm, 99mm, 114mm, and 123mm. The thread is NW male thread. Samples are available.



PDC Coring Bit
It is applied in coal exploration from soft to medium hard forms. The PDC coring bits include: AQ, BQ, BQ3, NQ, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, and PQTT.



PDC Drill Bit
This PDC drill bit is also used in coal exploration from soft to medium forms as a base drilling. The PDC coring bits contain HWF, 412, PWF, SWF, NQ3, HQ3, NQTT, HQTT, PQ3, and PQTT of the face discharged.





Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ 0    Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ 1

Application

The PDC bit is short for polycrystalline compact diamond bits. It is made up of tough, anti-friction matrix and gauge reinforcement. The PDC coring bit is suitable in homogeneous soft to medium sedimentary forms.

Packing& Delivery                                                                                                                                        ​

Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ 2

Service

Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​

Polycrystalline Compact Diamond Core Drill Bit DCDMA Standard PCD NQ HQ PQ 4
