TWD150 Towable Trailer Hydraulic Water Well Drilling Rig

Name: TWD150 Towable Trailer Hydraulic Water Well Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: TWD150
Price: 44.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	TWD150
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	4Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

Drilling Capacity:

90-355mm

Drill Depth:

200M

Optional Engine Brand:

YUCHAI, CUMMINS, WEICHAI, YUCHAI

Rated Speed:

45-115rpm

Torque:

4200-5600N.M.

Feeding Stroke:

350mm

Pull-up Capacity:

12 Ton

Air Consumption:

1.5-2.5 M³/min

Supply Ability:

4Sets Per Month

Highlight:

towable trailer water well drilling rig

hydraulic water well drilling rig

RC drilling rig with warranty

Product Description

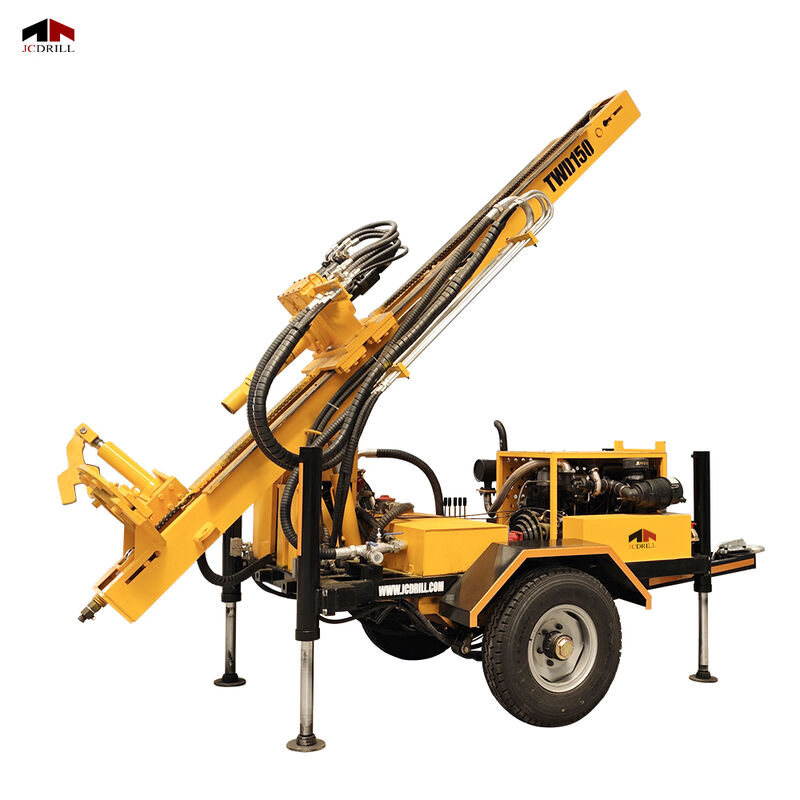

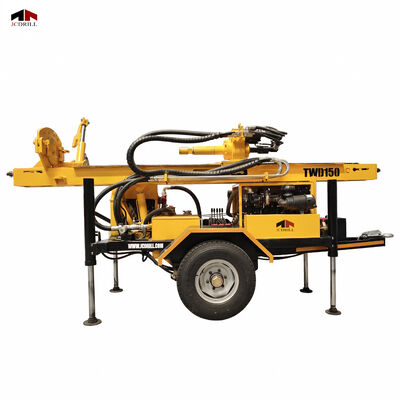

TWD150 Towable Trailer Hydraulic Water Well Drilling Rig

The TWD150 is a compact towable trailer hydraulic water well drilling rig designed for shallow and medium depth borehole drilling. It can be towed by vehicles such as SUVs or pickup trucks, making transportation between job sites much easier. With 150 m drilling depth and 90 to 254 mm drilling diameter, it is suitable for rural water wells, irrigation wells, domestic water supply, and small scale drilling projects.

Technical Specifications

Specification	Unit	TWD180	TWD200
Geology drilled		All Kind	All Kind
Drilling Type		DTH & MUD	DTH & MUD
Drill system and operation		Hydraulic	Hydraulic
Hole Diameter	mm	Φ90--Φ305	Φ90--Φ355
Hole Depth	m	180	200
Rotation Torque	Nm	4200-5600	4200-5600
Rotation Speed	rpm	45-115	0-115
Drill pipe diameter	mm	76/89/102	76/89/102
Drill pipe length	mm	3000	3000
Max. Feed Speed	M/min	2-17	2-17
Max. Lifting Speed	M/min	1.5-12.4	1.5-12.4
Feed Stroke	mm	350	350
Max. Pull back Capacity	T	12	14
Lifting force of Winch	T	1.2(Optional)	1.5

Engine

Diesel Engine type		4Cylinder,water cooling	4Cylinder,water cooling
Diesel Engine Brand		Quanchai	Yuchai
Rated Horse power	Kw	55	77

Compressor required(Optional)

Pressure Required	Mpa	15-30	15-30
Air consumption	m³/min	1.5-2.5	1.5-2.5

Mud Pump(Optional/Separate)

Model		BW250	BW250/BW450
Displacement	L/Min		250/450
Discharge pressure (Mpa)	Mpa	2.5-7	2.5-7/2-5

Trailer

Trailer Type		4 wheels trailer,front wheels with steering
Mobility		Towed by pickup or light truck

Dimension

Net Weight	T	3750	4100
Shipping LxWXH	mm	400018202150	415018502160
Ground Clearance	mm	300	305

Key Features

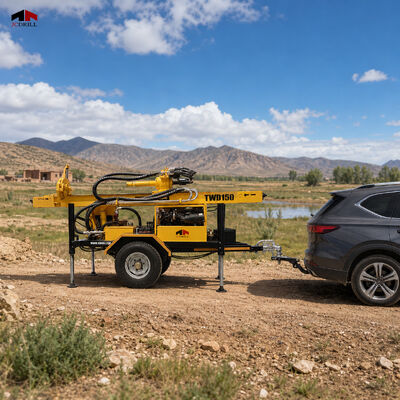

Towable Trailer Structure: The TWD150 adopts a towable trailer mounted design and can be moved by common vehicles such as SUVs or pickup trucks. This makes the rig highly convenient for contractors who need to transfer between scattered drilling sites, especially in rural areas, farms, villages, and remote water supply projects.
Compact and Easy to Transport: Compared with larger crawler or truck mounted rigs, the TWD150 has a more compact structure and lower transport requirements. Users do not need special heavy transport equipment for short distance movement, which helps reduce mobilization cost and improves job site flexibility.
150 m Practical Drilling Capacity: With a maximum drilling depth of 150 m, the rig is suitable for common shallow and medium depth water well drilling work. It can meet many household water supply, farm irrigation, and small community water project requirements while keeping the machine economical and easy to operate.
Flexible Drilling Diameter Range: The TWD150 supports drilling diameters from 90 mm to 254 mm, allowing it to meet different borehole sizes and water well construction needs. This flexibility makes it practical for household wells, agricultural wells, and small engineering drilling tasks.
Diesel Powered Hydraulic Drilling: The rig uses diesel power and hydraulic drilling control, allowing it to work independently in field environments without relying on grid electricity. The hydraulic rotary system provides stable output and smoother operation, helping improve drilling efficiency in soil, sand, clay, and suitable weathered formations.

Applications

Rural drinking water wells
Agricultural irrigation wells
Household borehole drilling
Farm and livestock water wells
Village water supply projects
Remote area water well drilling
Small construction site boreholes
Shallow geological drilling

Frequently Asked Questions

Q1: Is the TWD150 self propelled?

A1: No. The TWD150 is a towable trailer type drilling rig. It can be moved by vehicles such as SUVs or pickup trucks.

Q2: What is the main advantage of the towable design?

A2: The towable design makes transportation easier and helps reduce transfer cost between different drilling sites. It is especially useful for rural, farm, and village water well projects.

Q3: What is the maximum drilling depth of the TWD150?

A3: The maximum drilling depth is 150 m.

Q4: What drilling diameter can the TWD150 support?

A4: The drilling diameter range is 90 mm to 254 mm.

Q5: Can the TWD150 be used in remote areas without electricity?

A5: Yes. The rig is diesel powered and can work independently in remote field environments.

Q6: What projects is the TWD150 suitable for?

A6: It is suitable for rural drinking water wells, farm irrigation wells, household boreholes, village water supply projects, and small scale water well drilling work.
