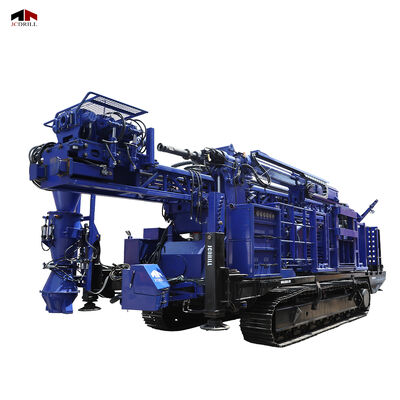

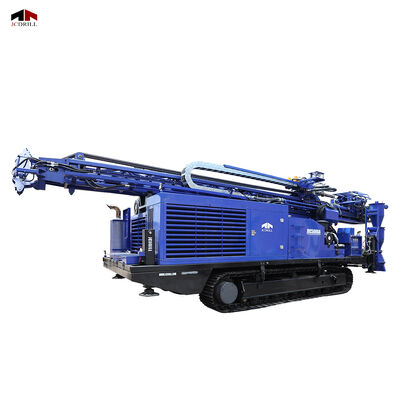

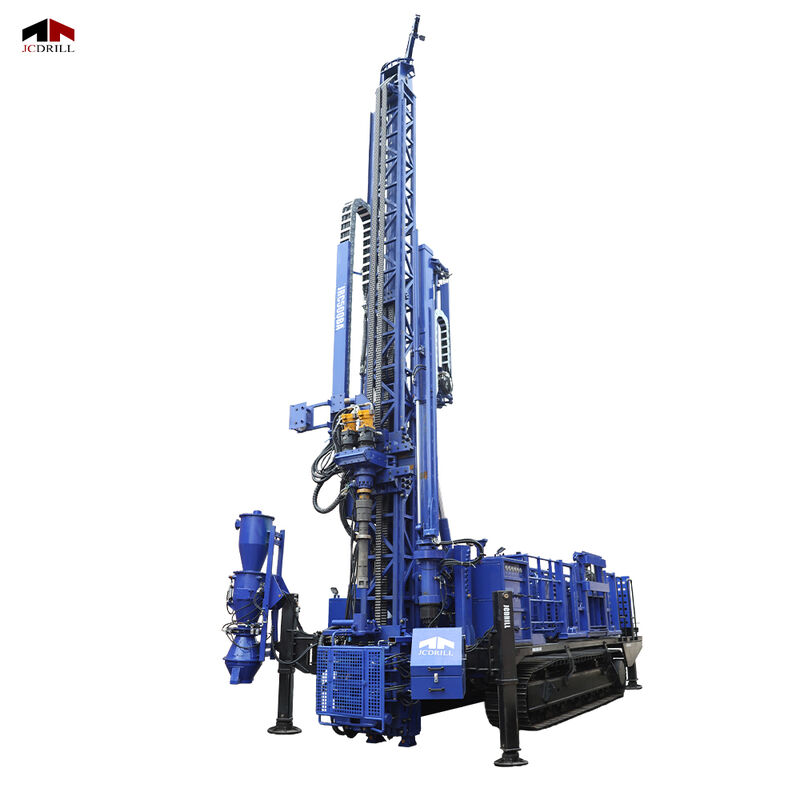

JRC500BA Integrated Automatic Rod Handling Crawler Hydraulic RC DTH Drilling Rig

Name: JRC500BA Integrated Automatic Rod Handling Crawler Hydraulic RC DTH Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JRC500BA
Price: 44.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	JRC500BA
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	4Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

Drilling Capacity:

105-450mm

Drill Depth:

500M

Optional Engine Brand:

YUCHAI, CUMMINS, WEICHAI, YUCHAI

Rated Speed:

0-74-148rpm

Torque:

11800-5900N.M.

Feeding Stroke:

7600mm

Pull-up Capacity:

12 Ton

Air Consumption:

35/1235m³/min/CFM

Supply Ability:

4Sets Per Month

Highlight:

automatic rod handling RC drilling rig

hydraulic RC DTH drilling rig

integrated crawler drilling rig

Product Description

JRC500BA Integrated Automatic Rod Handling Crawler Hydraulic RC DTH Drilling Rig

The JRC500BA is a flagship fully hydraulic crawler drilling rig designed for high efficiency RC and DTH drilling in demanding mineral exploration projects. With 500 m drilling depth, 105 to 450 mm hole diameter, automatic rod handling, on-board air compressor, three-layer cyclone sampling, and remote control operation, it delivers strong technical integration and reliable deep hole drilling performance.

Technical Specifications

Specification	Unit	JRC500BA
Geology Drilled		All kinds
Drilling Type
Drill system and operation		Hydraulic
Max. Hole Diameter	mm	105-450
Max. Hole Depth	m	500
RC Drill pipe diameter	mm	102/114/127
Drill pipe length	mm	6000
Rotation Unit
Rotation Torque	N.M	11800-5900
Rotation Speed	rpm	0-74-148
Mast
Compensation distance	mm	1500
Drilling Angle range	°	45-90
Feeding System
Feeding Structure		Cylinder & Chain
Max. Feed Speed	M/min	0-8.02
Max. Lifting Speed	M/min	4.1
Feed Stroke	mm	7600
Pull back Capacity	T	40
Push down Capacity	T	0-15
Winch
Lifting force of tool winch	T	1.5
Rope Diameter	mm	Φ10
Auxiliary winch	T	0.5
Rope Diameter	mm	6
Cooling system
Engine system		CUMMINS Engine fan with radiator
Hydraulic System		Hydraulic Driven Cooler
Pipe Rack
Capacity (114x6m RC Drill pipe)	Pcs	30
Power Unit
Diesel Engine Model		6LTAA8.9-C325
Rated Horse power	kW	239
Fuel Tank Capacity	L	100
Compressor (On Board)
Model		JAC35/34
Pressure Required	Bar/Psi	34/493
Air Consumption	m³/min/CFM	35/1235
Hydraulic System
Pump Model		L8V-107-107
Pump type		Variable piston pump group
Sampling Collection System
Hydraulic blow-off valve		Standard
Cyclone Type		Three-layer cyclone & sampler
Hammer Oil tank
Tank Capacity	L	16
Control System
Control type		Handle + remote control
Dimension
Net Weight	Ton	39.5
Shipping Dimension	mm	12800×3200×3600
Gradeability	°	22
Walking Speed	km/h	1.5-2.5

Key Features

Automatic Rod Handling System: The JRC500BA is equipped with an automatic rod handling system to improve rod changing efficiency during deep hole drilling. This system helps reduce manual labor intensity, enhances site safety, and supports more continuous drilling operation.
Integrated On-board Air Compressor: The rig integrates a JAC35/34 on-board air compressor directly onto the crawler frame, delivering 35 m³/min air volume at 34 bar pressure. This compact integration reduces dependence on external compressor equipment and improves transfer efficiency.
Powerful Deep Hole Drilling Capacity: With a maximum drilling depth of 500 m and hole diameter range from 105 mm to 450 mm, the JRC500BA is built for demanding exploration work. Its 40 t pullback capacity and 15 t push down capacity provide strong support for complex geological formations.
High Performance Hydraulic System: Powered by a Cummins 6LTA8.9-C325 engine rated at 239 kW, the rig uses a fully hydraulic drive system with a variable piston pump group for stable power transmission and reliable drilling performance.
Advanced RC Sampling System: The three-layer cyclone and sampler support efficient sample separation and collection during reverse circulation drilling, improving sample recovery stability and supporting accurate geological evaluation.

Applications

Mineral exploration drilling
Reverse circulation drilling
DTH drilling
Geological survey
Deep hole exploration
Mining investigation
Hard rock drilling
Resource exploration projects

Product Keywords

Portable drilling rig, full hydraulic drilling rig, wireline diamond drilling, modular core drilling rig, JCD150, geological exploration equipment, mining core drill, quarry drilling rig, high-efficiency drill rig, remote area drilling

Contact Information

JCDRILL
Beijing JCDRILL
Beijing Jincheng Mining Technology Co., Ltd.

Frequently Asked Questions

Q1: What drilling methods does the JRC500BA support?

A1: The JRC500BA supports Reverse Circulation drilling and DTH drilling, making it suitable for mineral exploration and deep hole drilling applications.

Q2: What is the maximum drilling depth of the JRC500BA?

A2: The maximum drilling depth is 500 m.

Q3: What is the drilling diameter range?

A3: The hole diameter range is 105 mm to 450 mm.

Q4: Does the JRC500BA include an automatic rod handling system?

A4: Yes. The rig is equipped with an automatic rod handling system to improve rod changing efficiency, reduce manual work, and enhance drilling safety.

Q5: Is the air compressor integrated into the rig?

A5: Yes. The JRC500BA uses an on-board JAC35/34 air compressor mounted on the crawler frame, providing 35 m³/min air consumption at 34 bar pressure.

Q6: What engine does this drilling rig use?

A6: The rig is powered by a Cummins 6LTA8.9-C325 diesel engine with rated power of 239 kW.

Q7: What drill pipe sizes are supported?

A7: The rig supports RC drill pipe diameters of 102 mm, 114 mm, and 127 mm, with a standard drill pipe length of 6000 mm.

Q8: What after-sales service does JCDRILL provide?

A8: JCDRILL provides installation guidance, on-site technical training, startup and commissioning support, spare parts supply, and long-term technical consultation for customers.
