New Design Truck Mounted Versatile Reverse Circulation and Diamond Core Drilling Rig

Name: New Design Truck Mounted Versatile Reverse Circulation and Diamond Core Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CRD1000
Price: 122.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CRD1000
MOQ:	1Set
Price:	Negotation
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	20Set

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Type:

RC& Wireline Core Drilling Rig

Drill Depth:

500, 700, 1000

Drill Diameter:

BQ, NQ, HQ, PQ

Drill Angle:

45°-90°

Max Rotation Toque:

3530-1410

Application:

Mining

Engine:

Cumm1ns

Engine Power:

132kw

Packaging Details:

Standard export transportation package

Supply Ability:

20Set

Highlight:

truck mounted core drilling rig

versatile diamond core drill

reverse circulation drilling rig

Product Description

New Design Truck Mounted Versatile Reverse Circulation and Diamond Core Drilling Rig

CRD1000 Full Hydraulic Truck-Mounted Drilling Rig is a mobile drilling rig specially designed for geological exploration projects in areas with road access. Mounted on a truck chassis, it combines excellent mobility with stable and efficient drilling performance.

The rig is mainly suitable for wireline diamond core drilling, and consists of a truck chassis, diesel power unit, hydraulic system, centralized control panel, mast, main winch, wireline winch, drill head, feeding system, foot clamp and other core components.

All surface coring functions are fully hydraulic driven, ensuring precise control, smooth operation and high reliability. The integrated truck-mounted design enables rapid deployment and convenient transportation while maintaining a robust structure and strong adaptability to complex working environments.

CRD1000 can operate in unconsolidated formations, with drilling cuttings discharged by mud circulation, making it suitable for complicated geological conditions. The main drive system, drilling mast, transfer case and mud pump clutch are all hydraulically operated, ensuring efficient and stable drilling performance.

Technical Specifications

Specification	Unit	CRD1000
Drilling Method		Wireline Diamond Core Drilling
Drill depth	m	500,700,1000
Drilling Diameter		BQ,NQ,HQ,PQ
Mobility		Truck
Mast compensation		Standard
Drive Head
Rotation torque	Gear-1 Nm/ Gear-2 Nm	3530-1410/ 1845-740
Speed	Gear-1 Rpm/ Gear-2 Rpm	10-550/ 20-1060
Drill Tower
Tower Height	mm	9960
Load Capacity	kgs	30000
Max. Drill pipe length	m	6
Main Winch
Dia. Of wirerope	mm	20
Reel capacity	m	26
Wireline Coring Winch
Dia. Of wirerope	mm	6
Reel capacity	m	1500
Drill Pipe
Drill pipe length	m	3-6
Drill pipe diameter		BQ,NQ,HQ,PQ
Mud pump
Max.Flow capacity	L/Min	250
Max. working pressure	Mpa	2.5-7

Key Features

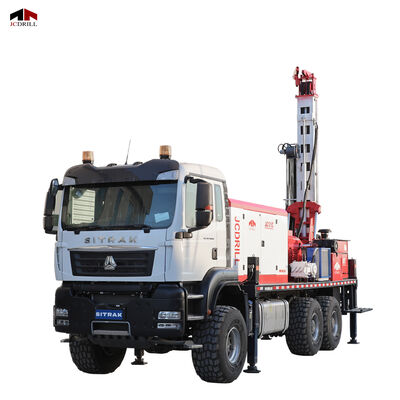

SINOTRUK SITRAK 6×6 Truck-Mounted Mobility
CRD1000 is mounted on a SINOTRUK SITRAK 6×6 heavy-duty truck chassis, offering excellent off-road capability and superior stability. The 6×6 drive system enables reliable transportation and operation in mountainous, muddy and rugged terrains, while ensuring fast relocation between drilling sites via road access.

SINOTRUK SITRAK 6×6 Truck chassis showing mobility features

Full Hydraulic Drilling System
All major drilling functions are fully hydraulic driven, including rotation, feeding, lifting, mast control, transfer case and mud pump clutch. The hydraulic system ensures smooth, stable and precise control, enhancing drilling accuracy and operational reliability.

High-Torque Dual-Gear Rotary Head
The rotary head features a dual-gear design with stepless speed adjustment, allowing the rig to adapt to different geological formations. With a rotary torque range of 970-3930 Nm, CRD1000 provides strong penetration force and stable core drilling performance.

Centralized Control Console
A centralized control console integrates all drilling operations into a single control platform. This design reduces auxiliary time, simplifies operation and significantly improves overall drilling efficiency.

Directional Circulation & Mud Drilling Capability
CRD1000 is a hydraulic rotary drilling rig with directional mud circulation. When equipped with a BW250 mud pump, slurry is used as the flushing fluid to effectively discharge cuttings, ensuring stable drilling in clay, sand, gravel and weathered rock formations.

Applications

CRD1000 Full Hydraulic Truck-Mounted Drilling Rig is widely used in:

Geological exploration
Mineral exploration and resource investigation
Wireline diamond core drilling projects
Engineering geological survey
Exploration projects in areas with road access

Suitable for drilling in:

Unconsolidated layers
Clay and sand formations
Gravel and weathered rock
Complex geological structures

Frequently Asked Questions

Q1: What drilling method is CRD1000 mainly used for?

A: CRD1000 is mainly designed for wireline diamond core drilling, suitable for geological and mineral exploration projects.

Q2: Is the rig fully hydraulic?

A: Yes. All major functions, including drilling, feeding, lifting, mast operation, transfer case and mud pump clutch, are fully hydraulic driven.

Q3: Can the rig work in unconsolidated formations?

A: Yes. The rig can operate in unconsolidated layers, with drilling cuttings discharged through mud circulation, making it suitable for complex geological conditions.

Q4: What engine is used in this drilling rig?

A: The rig is powered by a 132 kW CUMM1NS diesel engine, providing strong power output and stable performance.

Q5: Is the rig easy to transport and deploy?

A: Yes. The truck-mounted integrated design ensures convenient road transportation, fast deployment and strong adaptability to different working sites.
