Product Details:
|
| Model Number: | JCD1000 | Dimension: | 5100×2200×2650mm |
|---|---|---|---|
| Driling Diameter: | BQ,NQ,HQ,PQ | Drilling Depth: | Max.1000m |
| Weight: | 9300Kgs | Power: | Diesel Engine |
| Color: | Customised | Drill Pipe Diameter: | BQ,NQ,HQ,PQ |
| High Light: | 1000m diamond core drilling rig,cold mining diamond core drilling rig,cold mining diamond core drill rigs |
||

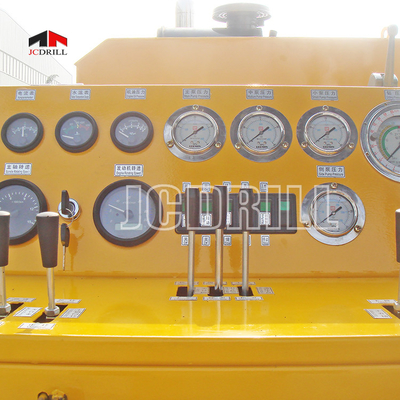

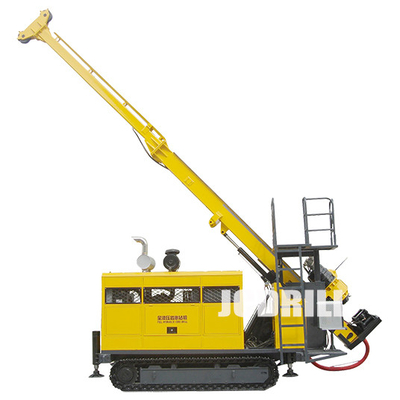

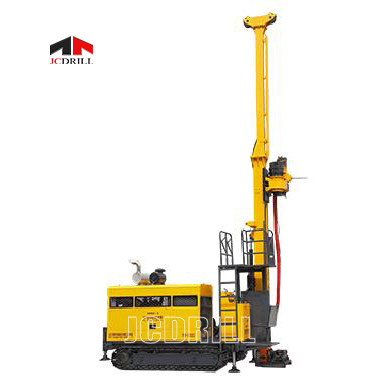

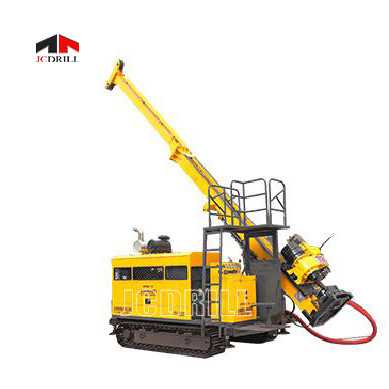

>> Introduction
|
>> The JCD1000 hydraulic core drilling rig of full hydraulic and rotator adopted the technology of wire-line coring, has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China. The crawler drilling rig adopts full hydraulic driving, traveling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. |
 |
>> It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and
other industries.
>> The JCD1000 hydraulic core drilling rig is equipped with a series motor driving pump. The feeding and lifting of rotator
are driven in the structure of cylinder directly pushing, with a 3.5m (11.5 feet) stroke. The rotation of spindle is driven by a
single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulically with steeples
change. The hydraulic geological drill rig is simple in structure. It is light and easy for transference; the mast has the functions
of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and
relocation. The spindle hole is in large diameter.
>> Advantage
Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump,
the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home
and abroad.
High Efficiency Crawler Drilling Rig
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters
(19.7 feet) length of drill rod, all these guarantee the drill rig's high operation and performance efficiency.
Environmental Protection Hydraulic Crawler Drill Rig
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation
and performance.
Energy Saving Drilling Rig
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation
to the lowest level.
With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be
selected in the full hydraulic core drill rig of present domestic market.
>> Specification
| Diesel Engine of JCD1000 hydraulic core drilling rig | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) |
| Displacement | 5.9L (1.56 US Gallons) | |
| Power | 132Kw (180HP) | |
| Rated RPM (Factory setting) | 2200rpm | |
| Drilling Capacity of hydraulic geological drill rig | BQ hydraulic core drilling rig | 1000m(3280feet) |
| NQ hydraulic core drilling rig | 700m(2296 feet) | |
| HQ geological drill rig | 500m(1640 feet) | |
| PQ hydraulic geological drill rig | 300m(984 feet) | |
| Rotation Motor | Hydraulic Motor-variable Maker: SAUER-DANFOSS | |
| RPM | Four Shifts/ Steeples Change 0-1100 RPM | |
| Ratios | 1st 14.422:1 2nd 8.171:1 3rd 4.519:1 4th 2.652:1 | |
| Drill Head JCD1000 hydraulic core drilling rig | Head Opener | Pivoting style, Manual actuated |
| Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N | |
| Max. Torque hydraulic geological drill rig | 3700 N·m(2727 lbf·ft) | |
| Hold Diameter | 121 mm(4.76 inch) | |
| Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
| Max. Feeding Power hydraulic core drilling rig | 60 kN(13480 lbf) | |
| Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system. | Maker: DANFOSS 1st Pump: 148LPM at 31.5MPa 2nd Pump:120LPM at 28MPa 3rd Pump: 50 LPM at 16MPa | |
| Capacity JCD1000 hydraulic core drilling rig | 310 L (82 US Gallons) | |
| Hoisting force (single wire) | 57kN(12814 lbf) (bare drum) | |
| Hoisting Speed (single wire) | 38-70m/min(bare drum) | |
| Hoist hydraulic geological drill rig | Steel Wire Diameter | 18 mm(0.71 inch) |
| Steel Wire Length | 50 m(164 feet) | |
| Hoisting Force (single wire) | 1200 Kg(2646 lb) (bare drum) | |
| Hoisting Speed (single wire) | 60-90m/min (bare drum) | |
| Steel Wire Diameter | 5.3 mm(0.2 inch) | |
| 1000 m(3280 feet) | ||
| Mast Height | 9.6 m(31.49 feet) | |
| Mas Steel Wire Lengtht Adjusting Angle |
0°—90° | |
| Drilling Angle | 45º off horizontal to 90ºvertical down | |
| Feed Pull | 15000kg(33075 lb) | |
| Mast | Feed Thrust | 6000kg(13230 lb) |
| Rod Pull | 3m or 6m(9.84feet or 19.68feet) | |
| Feeding Stroke | 3500 mm(137.80 inch) | |
| Slippage Stroke | 600 mm(23.62 inch) | |
| Type | Reciprocating pump Triplex Plunger | |
| Mud Pump | Model | BW160/10 |
| Stroke | 70mm(2.76 inch) | |
| Discharge pressure | 2.5, 4.0, 6.5, 10.0 Mpa (363, 580, 943, 1450 psi) | |
| Clamping Scope | 55.5-110 mm(2.19-4.33 inch) through hole Φ154mm(6.06 inch) | |
| Weight (platform type) | 9300 Kg(20506 lb) | |
| Others | Dimensions (L×W×H) | 5100×2200×2650mm (200×86.6×104.3 inch) |
| Transport Way | Crawler |
