Product Details:
|
| Model Number: | JCD1500 | Dimension: | 6250 * 2240 * 2750 Mm |
|---|---|---|---|
| Driling Diameter: | BQ,NQ,HQ,PQ | Drilling Depth: | Max.1500m |
| Weight: | 13000Kgs | Power: | Diesel Engine |
| Color: | Customised | Drill Pipe Diameter: | BQ,NQ,HQ,PQ |
| High Light: | 1500m diamond core rig,geological exploration diamond core rig,geological exploration diamond core drilling rig |
||
>> Introduction
|

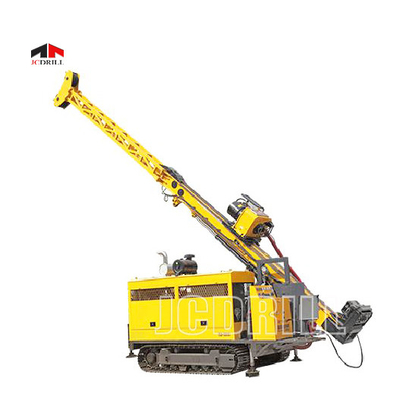

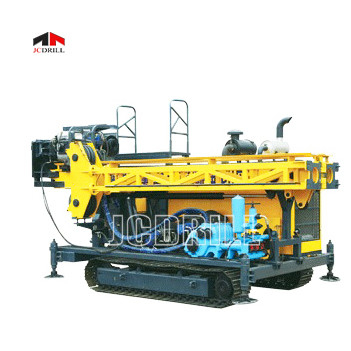

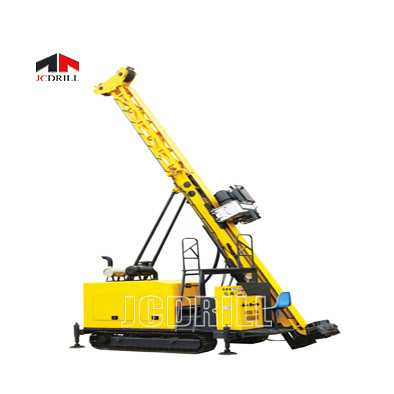

>> The JCD1500 new model Full Hydraulic Core Drill Rig is developed by us with reference of advanced
JCD1500 hydraulic wireline diamond core drilling rig is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly. |
 |
>> Characteristic
>> The hydraulic geological drill rig is simple in structure. It is light and easy for transference; the mast has the functions of
sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation.
The spindle hole is in large diameter.
>> The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and
good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition.
The rig looks pretty in overall structure and embodies the design thought of people oriented.
>> Specification
| Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) |
| Displacement | 8.3L (2.19 US Gallons) | |
| Power | 145kW (195HP) | |
| Rated RPM(Factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 1500 m(4920 feet) |
| NQ | 1300 m(4264 feet) | |
| HQ | 1000 m(3280 feet) | |
| PQ | 680 m(2230 feet) | |
| Drill Head | Rotation Motor | Double Hydraulic Motors –variable and Reversible Maker:SAUER-DANFOSS |
| RPM | Two Shifts/ Stepless Change 0-1145 RPM | |
| Ratios | 1st 8.776:1 2nd 2.716:1 |
|
| Head Opener | sidewise sliding way with hydraulic drive | |
| Max. Torque | 4650 N·m(3427 lbf·ft) | |
| Hold Diameter | 121 mm(4.76 inch) | |
| Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
| Max. Feeding Power | 75 kN(16860 lbf) | |
| Primary Pump Package | Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. | Maker: DANFOSS 1st Pump:150LPM at 31.5MPa 2nd Pump:120LPM at 28MPa 3rd Pump: 120 LPM at 28MPa |
| Hydraulic Tank | Capacity | 420 L (111 US Gallons) |
| Capacity of Main Hoist | Hoisting Speed (single wire) | 44m/min(bare drum) |
| Hoisting force (single wire) | 77kN(17310 lbf) | |
| Steel Wire Diameter | 18 mm(0.71 inch) | |
| Steel Wire Length | 60 m(196.85 feet) | |
| Capacity of Wireline Hoist | Hoisting Speed (single wire) | 100m/min (bare drum) |
| Hoisting Force (single wire) | 12 kN(2698 lbf) (bare drum) | |
| Steel Wire Diameter | 6 mm(0.24 inch) | |
| Steel Wire Length | 1500 m(4920 feet) | |
| Mast | Mast Height | 11.2 m(37.74 feet) |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle | 45°—90° | |
| Feeding Stroke | 3800 mm(150 inch) | |
| Slippage Stroke | 1100 mm(43.3 inch) | |
| Feed Pull | 15000kg(33075 lb) | |
| Feed Thrust | 7500kg(16538 lb) | |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW250 | |
| Stroke | 100mm(3.9 inch) | |
| Output volume | 250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min) |
|
| Discharge pressure | 2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 psi) |
|
| Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.18-4.63 inch) through hole Φ154mm(6.06 inch) |
| Other | Weight | 13000 Kg(28665 lb) |
| Dimensions (L × W ×H ) | 6250×2240×2750mm (20.5×7.34×9.02 ft) |
|
| Transport Way | Steel Crawler |
