Dual Motor Compact Size Dth Pneumatic Drilling Rig Crawler Mounted Drilling Rig Fully Hydraulic

>> Products Description

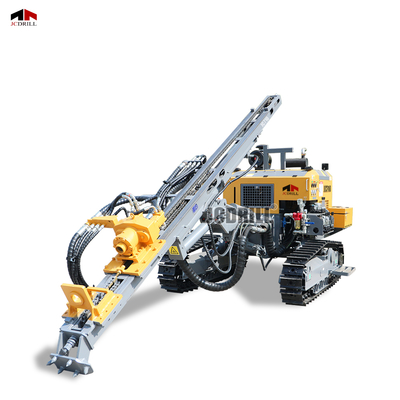

JC710 offers a balanced combination of compact design, efficient power transmission, and stable holeforming performance. It is particularly suited for applications such as slope anchoring, geothermal wells, and urban foundation projects where space is limited  and flexibility is essential. JC710 supports drilling depths up to 30m with a hole diameter range of φ90-152mm, ideal for shallow hardrock penetration. The system employs a φ64 mm × 3000mm drill rod and accommodates both 3" and 4" DTH hammers, enabling flexible configuration for different geological conditions.The rotation system delivers a maximum torque of 2400N·m and adjustable speeds up to 150rpm, ensuring stable rotation across various strata. The feed mechanism is powered by a robust hydraulic oil cylinder, with a 3340mm stroke and 900mm extension, producingup to 15kN of feed force and 25kN of lifting capacityallowing the rig to maintain control in fractured rock and gravel formations.
Hole range: 90-115mm
Hole depth: 30m
78kW YUCHAI engine
Equipped with a Yuchai YCD4T22T-105A diesel engine rated at 78kW, JC710 ensures reliable output while maintaining fuel efficiency with its 70L tank. The rig operates effectively with air compressors delivering 9-15m³/min at 0.8-1.6MPa, making it compatible with  common low-to-medium pressure air systems.With a total weight of only 4.6tons and a transport dimension of 5550×2050×2600mm, JC710 offers excellent transportability. Its 35° climbing capacity and 450mm ground clearance provide superior off-road performance, especially on rugged or sloped job sites. Optional winch integration and intuitive control layout enhance its operational flexibility.

>> Paremeter

>> Features

>> Control System: Rear-mounted operator station offers intuitive layout and centralized control for efficient field operation. Streamlined interface enhances precision and reduces operator fatigue in long working sessions.
>> Engine & Air Supply: Powered by a 78 kW Yuchai diesel engine (model YCD4T22T-105A), matched with air demand of 9-15 m³/min and pressure up to 1.6MPa, suitable for medium-depth DTH drilling across various terrains.
>> Drilling & Rotation Unit: Delivers up to 2400 N·m torque and 0-150 rpm rotary speed. Designed for both 3" and 4" hammers, the system ensures smooth and reliable drilling in hole diameters from φ90-152 mm.
>> Feed Mechanism: Oil-cylinder feed with 3340mm stroke and 15kN thrust delivers stable penetration, while 25kN lifting force enhances rod handling efficiency. Compact feed design supports quick repositioning in tight spaces.
>> Mobility & Structure: The compact frame, 4636kg total weight, and 450mm ground clearance ensure excellent off-road performance. Crawler-mounted chassis enables 35°climbing, making it ideal for slope anchoring and rugged conditions.

>> Application

Slope Anchoring & Retaining Walls:
The crawler chassis, 35° gradeability, and 450 mm ground clearance make JC710 a strong performer on steep or uneven surfaces.

Urban Foundation & Micropile Work:
Its compact size (only 4.6 t) and 78 kW engine provide efficient hole-forming in tight construction sites, underground garages, or building retrofit projects.

Shallow Geothermal & Residential Wells:
The rig's ability to handle both 3" and 4" hammers and air compressors from 9–15 m³/min makes it suitable for low-noise, low-emission heat pump drilling in populated areas.

>> FAQ

Q1: What is the maximum drilling depth and diameter of JC710?
A1: JC710 can drill up to 30 meters deep with borehole diameters ranging from φ90 to 152 mm. It's compatible with both 3" and 4" DTH hammers.

Q2: Is JC710 suitable for sloped or mountainous terrain?
A2: Yes. With a 35° climbing ability, crawler chassis, and 450 mm ground clearance, JC710 performs well on rugged or inclined job sites.

Q3: What air compressor is required for JC710?
A3: The rig works with compressors supplying 9–15 m³/min at 0.8–1.6 MPa, supporting low-to-medium pressure DTH applications.

Q4: How is JC710 transported and operated in urban areas?
A4: Weighing only 4636 kg and measuring 5550×2050×2600 mm, JC710 is compact enough for containerized transport and narrow urban roads.

Q5: Can JC710 be used for geothermal drilling?
A5: Absolutely. JC710 is well-suited for shallow geothermal well drilling, offering quiet, fuel-efficient operation with a 78 kW Yuchai engine.
