Versatile Pneumatic Diesel Power DTH And Auger Drill Surface Compact Drilling Rig

>> Products Description

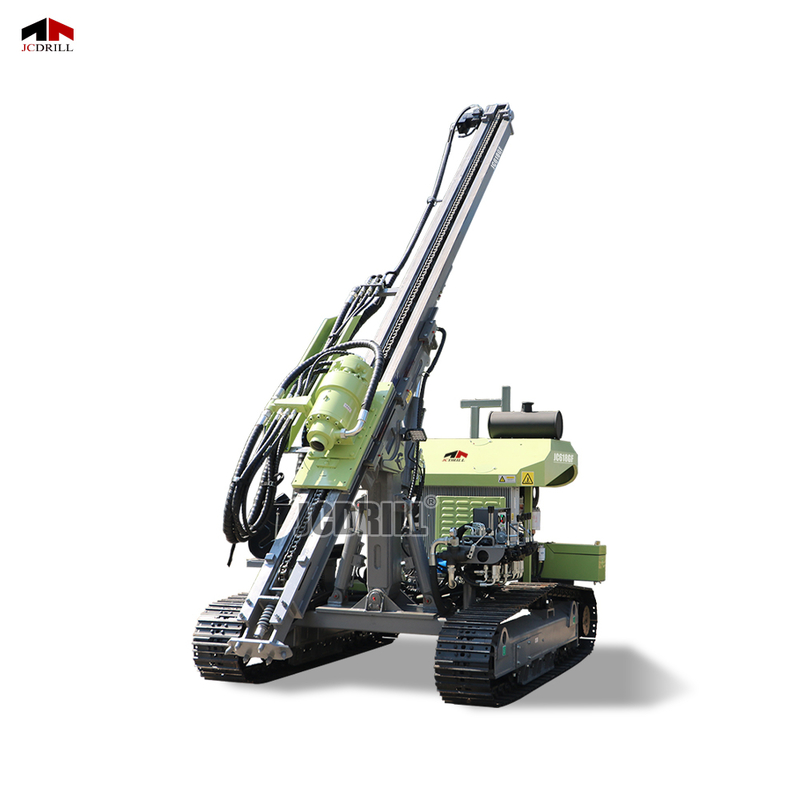

>> Designed for flexible deployment across diverse drilling environments, JC618GF is a compact yet powerful down-the-hole drilling rig tailored for shallow large-diameter hole applications. Its optimized structure and high adaptability make it ideal for municipal  construction, geothermal drilling, small-scale quarries, and pipeline foundation projects. JC618GF supports a wide hole diameter range from φ90 to φ400mm, making it highly versatile across unconsolidated layers and mixed formations. With a maximum rotary torque of 8000N·m and adjustable rotary speed up to 80rpm, it delivers stable torque output for oversized hole drilling while maintaining control and precision. The feed system uses a motor-driven mechanism with a 3300mm feed stroke and 900mm extension. It
provides 18kN of feeding force and 20kN of lifting force, enabling smooth rod advancement and retraction even under unstable ground conditions. The rig's core motion components are configured for reliable performance with minimal mechanical complexity. Powered by a YUNNEI YN48GBZ diesel engine rated at 92kW, JC618GF delivers dependable output while remaining fuel-efficient, supported by a 100-liter onboard fuel tank. It matches seamlessly with external air compressor systems requiring 1.0-2.4MPa pressure and 15-50m³/min air volume, ensuring compatibility with a wide range of pneumatic setups.
Hole range: 90-400mm
Hole depth: 10m

The whole machine weighs only 5.2 tons, with a compact footprint of 6400×2200×2550mm for easy transport. A tramming speed of 0-2km/h, 25° climbing ability, and 380mm ground clearance give JC618GF strong off-road capability and maneuverability in constrained or rugged job sites. With a design focus on operational efficiency, durability, and large-bore drilling flexibility.

>> Paremeter

>> Features

>> Control Platform: Rear-mounted centralized control system enables streamlined operation. Optimized layout improves operator visibility and access, ensuring smooth workflow in confined work environments.
>> Power System: Equipped with a 92 kW Yunnei YN48GBZ engine, delivering stable output. With air demand up to 50 m³/min and pressure range of 1.0- 2.4 MPa, it adapts easily to a wide range of DTH drilling needs.
>> Rotary and Feed System: High-torque rotary head delivers up to 8000 N·m with variable speed up to 80rpm. Motor-driven feed system offers 3300 mm stroke and 18 kN thrust, providing reliable penetration in soft to medium formations.
>> Mobility and Structure: Compact structure with 5.2 t weight and 380 mm ground clearance ensures agility across rugged terrain. Crawler-type drive allows 2 km/h tramming speed and 25° climbing capacity.
>> Drilling Capability: Supports φ90- 400 mm hole diameter with dual rod diameter options (φ76 / φ89), enabling flexible adaptation to various drilling tasks in foundation or shallow water well projects.

>> Application

Municipal Construction and Pipeline Foundations
JC618GF is ideal for urban infrastructure work such as pipe laying, bridge footings, and pole foundations. Its compact 5.2 t frame and φ90–400 mm hole diameter range make it perfect for large-diameter holes in constrained workspaces.

Shallow Geothermal Well Drilling
Its torque stability and variable-speed rotary head allow efficient drilling in soft to mixed formations for geothermal heat pump systems, up to 10 m deep.

Agricultural and Rural Water Supply Projects
With rod compatibility up to φ89 mm and high airflow adaptability (15–50 m³/min), JC618GF suits shallow water well construction in rural areas requiring cost-effective, mobile drilling equipment.

Small-Scale Quarry Operations
In soft and medium-hard quarries, JC618GF offers reliable oversized hole formation for extraction and blasting preparation.

>> FAQ

Q1: What drilling applications is JC618GF suitable for?
A1: JC618GF is ideal for shallow drilling applications such as municipal construction, geothermal wells, pipeline foundations, rural water wells, and small quarries.

Q2: What is the maximum hole size this rig can drill?
A2: It supports large boreholes ranging from φ90 to φ400 mm, making it one of the most versatile compact rigs for oversized shallow holes.

Q3: How deep can JC618GF drill?
A3: The maximum drilling depth is 10 meters, ideal for shallow foundation, geothermal, and water supply applications.

Q4: What type of air compressor does it require?
A4: JC618GF is compatible with external air compressors delivering 15–50 m³/min airflow at 1.0–2.4 MPa working pressure.

Q5: What kind of engine powers the rig?
A5: The rig is equipped with a 92 kW YUNNEI YN48GBZ diesel engine, delivering consistent performance with a 100-liter fuel tank for long shifts.

Q6: What is the rotary torque and speed range?
A6: The rotary head delivers up to 8000 N·m torque and operates at adjustable speeds up to 80 rpm, suitable for large-diameter, low-speed applications.

Q7: Is the machine easy to transport and maneuver?
A7: Yes. With a transport size of 6400×2200×2550 mm, 5.2 t weight, 25° climbing capacity, and 0–2 km/h tramming speed, it is highly mobile on both road and rugged terrain.

Q8: What rod diameters are supported?
A8: The rig supports φ76 mm and φ89 mm rods, each 3 m in length, enabling flexible adaptation to project-specific needs.
