Product Details:
Payment & Shipping Terms:
|
| Rotation Torque: | 5600 N·m | Drilling Rod: | 76*3000 Mm |
|---|---|---|---|
| Drilling Depth: | Max.60m | Max.Travel Speed: | 2-3Km/h |
| Rotation Speed: | 0-92 R/min | Rated Horse Power: | 70/74 Kw |
| Air Consumption: | 11-21m³/min | ||
| Highlight: | Hydraulic DTH Crawler Mine Drill Machine,JCDRILL Crawler Mine Drill Machine,Blasting Hole Crawler Mine Drill Machine |
||

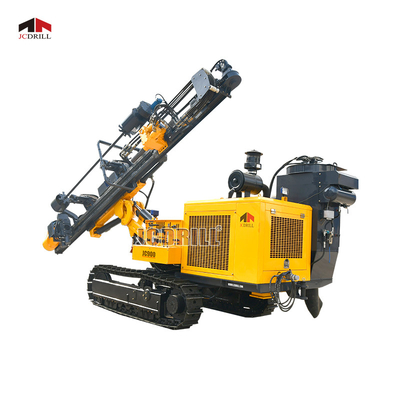

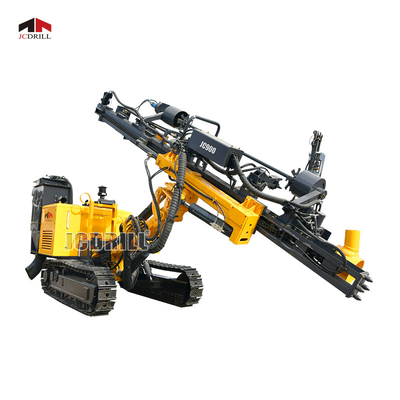

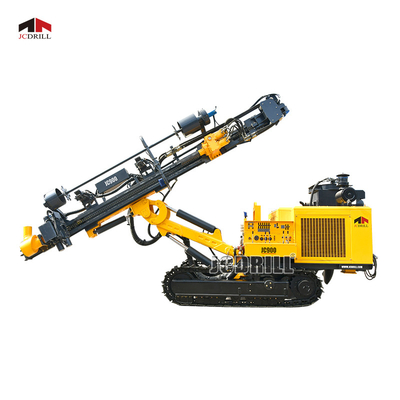

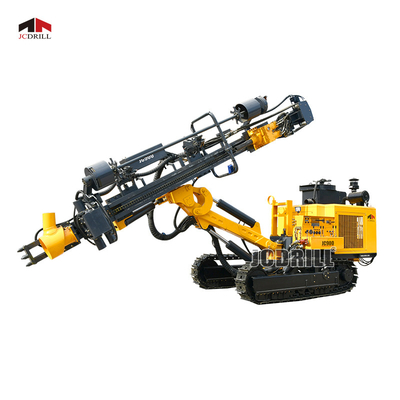

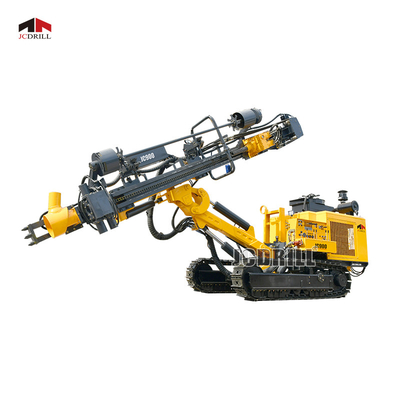

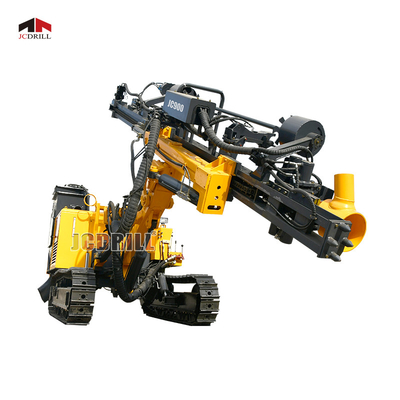

Improved Performance of JC900 Hydraulic Drilling RigThe JC900 hydraulic down-the-hole drilling rig boasts better performance than its previous generation. This is mostly due to its fully optimized structure, lower drilling footage cost, and more user-friendly design.
The power unit of the JC900 drilling rig is composed of a diesel engine (or electric motor) and a hydraulic oil pump set. The hydraulic motor has been optimized to provide auxiliary movements required for drilling, feeding, lifting, walking and hydraulic cylinder positioning.
The JC900 drilling rig provides an impressive rotating torque. Its new planetary gearbox has a more compact structure with a larger reduction ratio, which results in a higher torque transmission efficiency, and smoother operation. Unlike its previous generation, the new planetary gearbox does not require additional components such as damping points for shock absorption.
The JC900 hydraulic down-the-hole drilling rig imported rotary seals with good sealing performance and long life, as well as a polymer liner that is wear-resistant and does not require lubrication, which makes it more convenient. The manganese steel guide rail frames are firm and wear-free. With its exceptional drilling performance, the unconsolidated layer is not easy to jam, and the hole formation rate is high.
Imported rotary seals offer excellent sealing performance and a long lifespan. Moreover, its wear-resistant polymer liner eliminates the need for lubrication, making operation more convenient. The frame of the equipment is constructed using manganese steel guide rails, which goes to show its firmness and durability.
The Yuchai 70kW supercharged engine (with optional Cummins 74kw) is an extremely powerful engine that is also easy to maintain.
The two-stage air filter system in use ensures that the engine only draws in clean air. This feature makes it safe and reliable for extended use.
Even in high-temperature environments, the normal operation of both the engine and hydraulic system is guaranteed by the oil-water integrated radiator.
With strong climbing ability and the ability to tow air compressors, the original imported walking motor can move at two different speeds, the faster one saving shift time. With maintenance-free support rollers that do not require oil and track guards that prevent derailment, it can even be equipped with a walking motor that you can operate without power.
Unlike similar drilling machines, the multi-angle, extended-function drill arm of this device can drill horizontal, front and rear angled, and lateral angled holes. This makes it 20% more effective than similar drilling rigs.
As a result of its state-of-the-art design, the back of rg is equipped with an Operating System that allows the drill operator to observe and centrally control all aspects of the machinery and hydraulic system. The pneumatic operating system is both convenient and safe, as it allows the operator to control it with only one hand while traveling. Furthermore, its original imported control valve ensures that its performance is more reliable than other drilling machines available on the market.
In addition, the hydraulic and mechanical double lock ensures not just the stable output of the large torque of the hydraulic motor, but also guarantees a longer service life than other models that use a worm and gear.
Lastly, the traveling system of the back of rg is powered by high power hydraulic motors which are imported. Each crawler is driven by a closed-end reducing gear, and is capable of breaking through the spring brake system. Similarly, its air clutch provides the same power in both positive and negative directions, and can achieve a gradeability of up to 35° whilst dragging a compressor.
| Specification | Unit | JC900 |
| Drilling Specifiication | ||
| Rock Hardness | ||
| Hole Diameter | mm | 90-178 |
| Hole Depth | M | 22/60 |
| Drilling Rod | mm | 76*3000 |
| Drill Rod Tank | 6+1 | |
| Rotary Head | ||
| Rotation Torque | Nm | 5600 |
| Rotation Speed | rpm | 0-92 |
| Feeding System | ||
| Max. Feed force | KN | 16 |
| Max. Lifting force | KN | 20 |
| Max. Feed Speed | M/min | 15 |
| Max. Lifting Speed | M/min | 15 |
| Boom&Guide | ||
| Max Swing of Boom | 45° left / 45° right | |
| Max Dump of Boom | Up23,Down55 | |
| Max swing of Guide | 90(L)/31(R) or 31(L)/90(R) | |
| Max Dump of Guide | Up55,Down30 | |
| Mast Extension | mm | 4115 |
| Engine | ||
| Manufacturer | YUCHAI/CUMMINS | |
| Rated Horse power | Kw | 70/74 |
| Type | 4 cylinder,water cooling | |
| Air Consunmption demand | ||
| Air Consumption | M³/min | 11-21m³/min(1.2-2.4 Mpa) |
| Compressor Tpye | Rotary/Screw/Movable | |
| General Specifiication | ||
| Max.Travel Speed | Km/h | 2~3 |
| Truck width | mm | 300 |
| undervarrage floating degree | ° | ±15 |
| Gradeablility | ° | 24 |
| Net Weight | kg | 9500 |
| Shipping Dimension(L*W*H) | mm | 7500*2210*3250 |
| Ground Clearance | mm | 252 |
| Dust Collector(Optional) | ||
| Motor Speed | Rpm | 3300 |
| Filter quantity | 20 |
The Rock Drilling Rig product technical support and services include:
- On-site installation and commissioning
- Training and technical guidance for operators and maintenance personnel
- Regular maintenance and inspection services
- Troubleshooting and repair services
- Spare parts and accessories supply
- Upgrades and retrofits
- Technical consultation and customization services
Q: What is the brand name of the rock drilling rig?
A: The brand name of the rock drilling rig is JCDRILL.
Q: What is the model number of the rock drilling rig?
A: The model number of the rock drilling rig is JC900.
Q: Where is the rock drilling rig made?
A: The rock drilling rig is made in Hebei, China.
Q: What certifications does the rock drilling rig have?
A: The rock drilling rig has ISO and CE certifications.
Q: What is the minimum order quantity for the rock drilling rig?
A: The minimum order quantity for the rock drilling rig is 1 set.
Q: What is the price of the rock drilling rig?
A: The price of the rock drilling rig is negotiable.
Q: How is the rock drilling rig packaged for shipment?
A: The rock drilling rig is packaged in a standard export ocean transportation package.
Q: What is the delivery time for the rock drilling rig?
A: If the product is in stock, the delivery time for the rock drilling rig will be determined based on the location of the buyer.
Q: What are the payment terms for the rock drilling rig?
A: The payment terms for the rock drilling rig are T/T, L/C, D/P, Western Union, and MoneyGram.
Q: What is the supply ability of the rock drilling rig?
A: The supply ability of the rock drilling rig is 2000 sets per year.
