Mining Machinery Hydraulic DTH Down The Hole Drilling Surface Crawler Blasting Drill Rig

Mining Machinery Hydraulic DTH Down The Hole Drilling Surface Crawler Blasting Drill Rig

Application

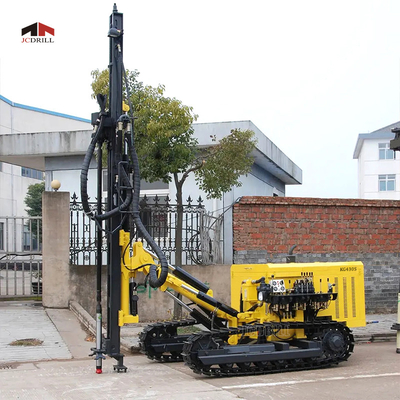

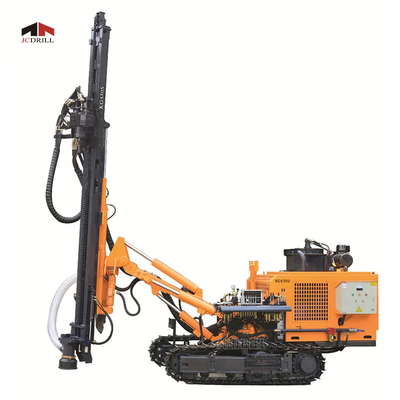

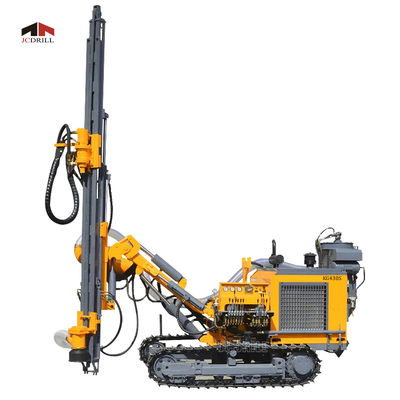

The KG430S down the hole drill rig mine drilling rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position.The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity, and the additional ring makes handling and lifting convenient.

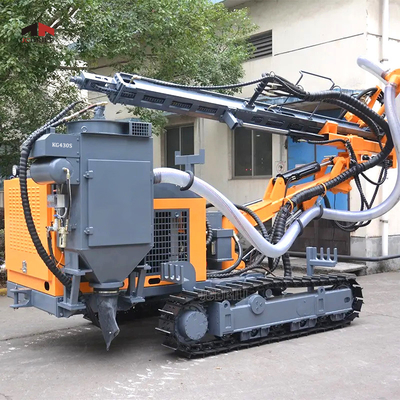

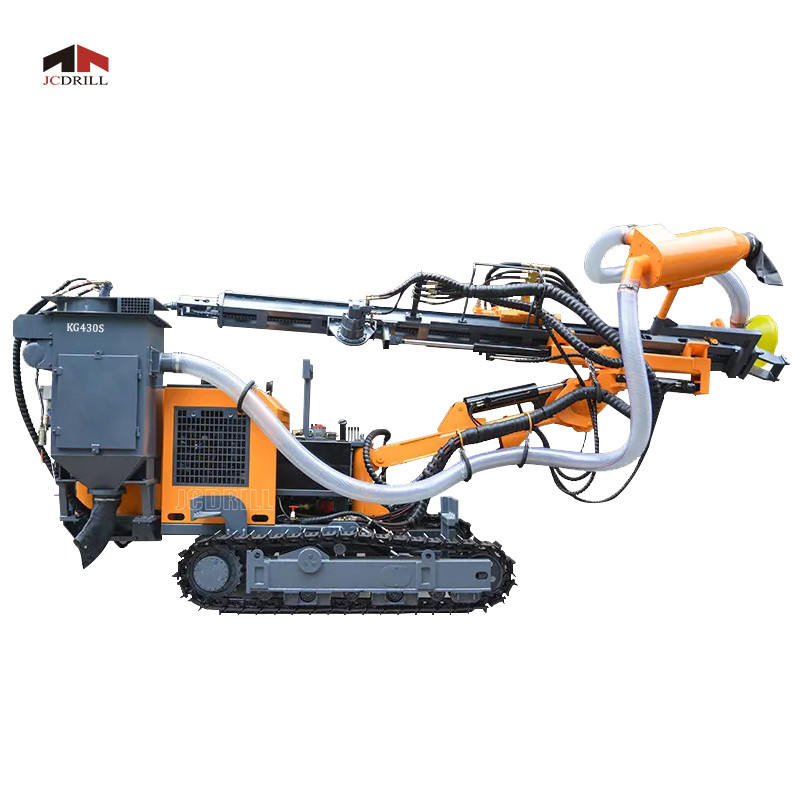

The KG430SH down the hole mine drilling rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Pneumatic Drilling Rig Hengwang pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.

Characteristics

DTH Mining Drilling Rig

1.Turn-around machine. The structure of newly designed planetary reduction box is more compact than that of straight tooth type reducer with greater reduction ratio, more efficient torque moment transmission, and more smooth operation.
2. Maintenance-free propulsion mechanism. Belongs to a new generation of products,it applied more advanced technology, the propulsion mechanism doesn't need routine oil maintenance.
3. Maintenance-free chassis. Enhanced engineering machinery crawler & box structure crawler frame are sturdy and durable; Maintenance-free thrust wheels, no need for oil injection.
4. Control console. Centralized control console provides convenient operational control of drilling rig; Fast propulsive and lifting operation reduce the auxiliary time and enhance the working efficiency.
5. Drive device.Yuchai 59KW turbocharged engine (Cummins optional) is featured by the strong power and easy maintenance.
6. Drilling arm .Multi-angle elongate functional drilling arm drills larger scope,its sectorial area of drilling work extends 20% .

>> About JCDRIL

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.   We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.   With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

>> Certification

>> FAQ

Q: Are you original manufacturer?	Q: Which payment terms are available to us?	Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.	A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.	A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?	Q: How about after sales service?	Q:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.	A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."	A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
