Product Details:
Payment & Shipping Terms:
|
| Type: | Rotary Drilling Rig | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Dimension: | 5750*2100*2650(mm) | Drilling Diameter: | 80-105mm |
| Weight: | 4500 KG | Drilling Depth: | Max.25m |
| Air Consumption: | 7-15m3/min | Diesel Power: | 77hp/58kw |
| Drill Pipe: | Φ64x3000mm | Model Number: | KG320 |
| Rotation Speed: | 0-140r/min | Rotation Torque: | 1250N·m |
| Rock Rigidity: | F=6-20 | ||
| Highlight: | rock hydraulic rock drilling machine,rock dth drilling machine,rock dth drilling rig |
||
Hydraulic Crawler Borehole Mining Pneumatic DTH Mining Drilling Rig Machine Prices
Application

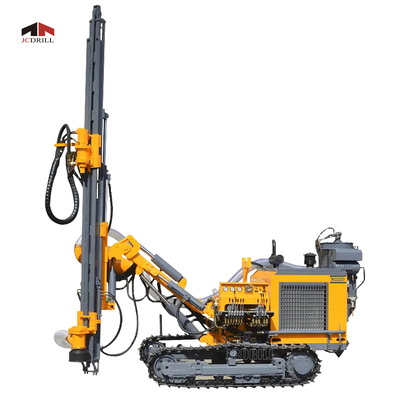

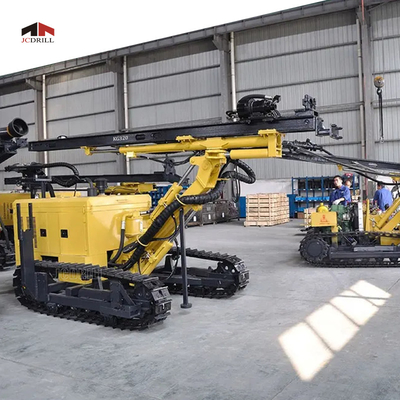

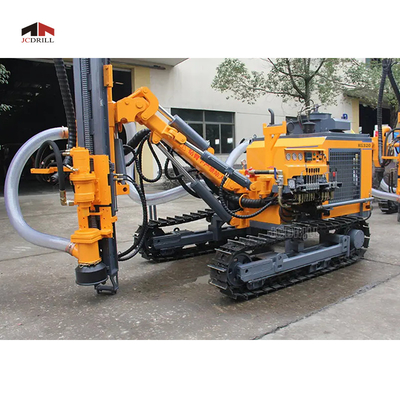

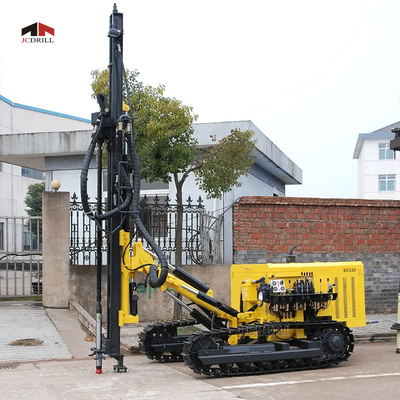

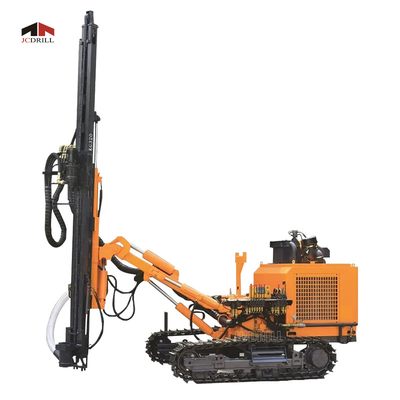

The KG320/KG320H crawler DTH mine drilling rig for stone quarry is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved,thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable.The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.

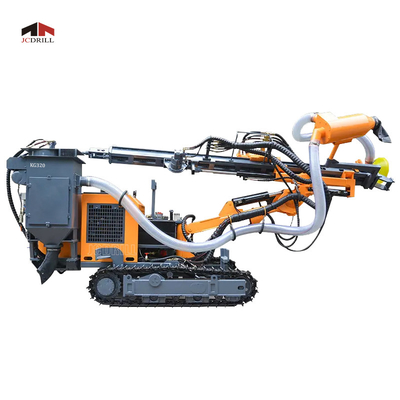

The KG320H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Characteristics
DTH Mining Drilling Rig
1. With additional ring (plate), makes handling and lifting easier.
2. Can do both vertical and horizontal hole drilling, can do horizontal hole digging at a low level.
3. With China III diesel engine, environmental protection.
4. Hydraulic system has been improved, leading to increase system flow and rotary speed.
