Product Details:
|
| Application: | Rock Balsting Drilling Rig | Drilling Depth: | 40m |
|---|---|---|---|
| Drilling Diameter: | 90-165mm | Drill Rod: | 3000mm |
| Rock Hardness: | F=8-16 | Rotation Speed: | 0-100rpm |
| Working Pressure: | 1.05-2.46Mpa | Air Consumption: | 11.3-21 M³/min |
| Feed Stroke: | 3.66m | Dust Collector: | Wet & Dry Optional |
| DTH HAMMER: | QL40 DHD340 DHD350Q | Size: | 5900×2210×1470mm |
| High Light: | hydraulic mining drilling rig,dth hammer mining drilling rig,blast hole crawler mounted drilling rig |
||

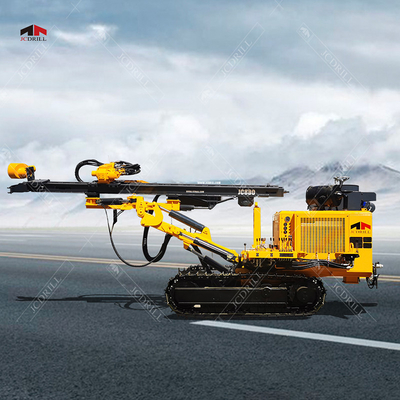

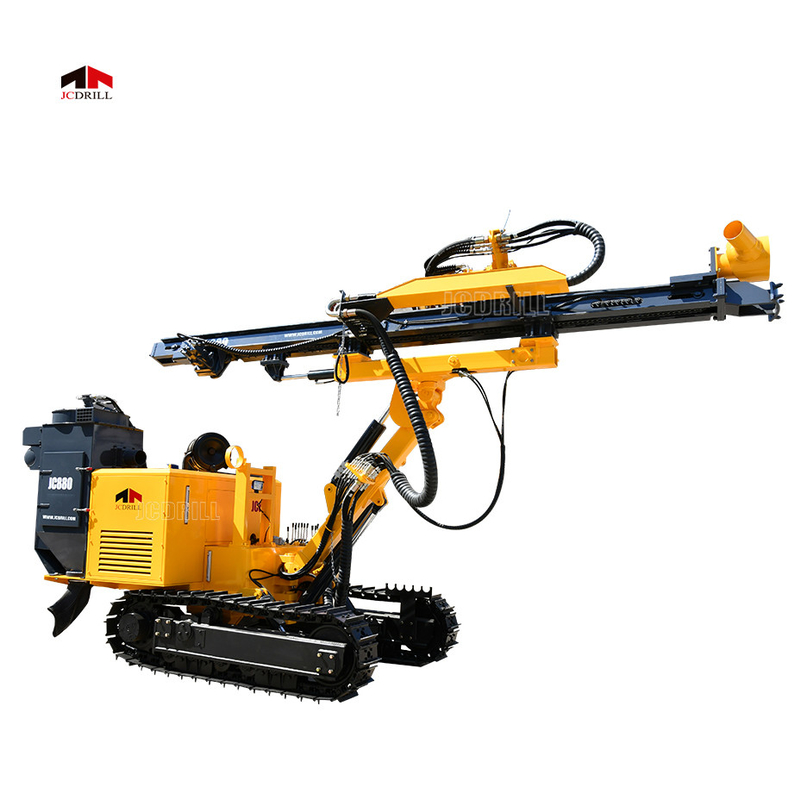

Open Mining Hydraulic DTH Hammer Blast Hole Portable Rock Drilling Rig JC880
Application
JC880 hydraulic down-hole rock drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind.This mobile drilling rig is convenient and efficient to operate. This drill rig is the best replacement for traditional pneumatic drills in most operation. The drilling rig is compact in structure, simple in operation, light in total weight. JC880 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries.JC880 rock blasting drilling machine is also used for anchor in road, railway, power station, civil engineering and building etc.
Specifiction
| 1 | Rock Hardness | F=6-20 | |
| 2 | Hole Diameter | mm | 90-165 |
| 3 | Hole Depth | m | 40 |
| 4 | Drilling Rod Diameter | mm | 60,76,89 |
| 5 | Rotation Torque | Nm | 4500 |
| 6 | Rotation Speed | rpm | 0-100 |
| 7 | Max. Feed force | KN | 30 |
| 8 | Max. Lifting force | KN | 30 |
| 9 | Max. Feed Speed | M/min | 15 |
| 10 | Max. Lifting Speed | M/min | 15 |
| 11 | Max Swing of Boom | ° | 45° left / 45° right |
| 12 | Max Dump of Boom | ° | up60 down20 |
| 13 | Max Swing of Guide | ° | 30(L) / 91(R) |
| 14 | Max Dump of Guide | ° | 180 |
| 25 | Guide Extension | mm | 1200 |
| 15 | Feed Stroke | m | 3 |
| 16 | Manufacturer | CUMMINS | |
| 17 | Electrical System | 24 | Volt |
| 18 | Compressor Pressure Required | M³/min | Φ≤115 11.3m2/min(1.4 Mpa) |
| Φ≤140 13m2/min(1.4 Mpa) | |||
| Φ≤165 17m2/min(1.4 Mpa) | |||
| Φ≤165 21m2/min(2.4 Mpa) | |||
| 19 | Max. Travel Speed | Km/h | 2 |
| 20 | Gradeability | ° | 24 |
| 21 | Net Weight | kg | 6100 |
| 22 | Shipping Length | mm | 6900 |
| 23 | Shipping Width | mm | 2200 |
| 24 | Shipping Height | mm | 2200 |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
