Product Details:
|
| Name: | Mine Blast Hole Rock Drilling Rig Machine For Granite | Application: | Rock Balsting Drilling Rig |
|---|---|---|---|
| Drilling Depth: | 40m | Drilling Diameter: | 90-165mm |
| Drill Rod: | 3000mm | Rock Hardness: | F=8-16 |
| Rotation Speed: | 0-100rpm | Working Pressure: | 1.05-2.46Mpa |
| Air Consumption: | 11.3-21 M³/min | Feed Stroke: | 3.66m |
| Keyword: | Crawler Mounted Drilling Rig | Dust Collector: | Wet & Dry Optional |
| DTH HAMMER: | QL40 DHD340 DHD350Q | Size: | 5900×2210×1470mm |
| High Light: | mine blast hole rock drilling rig,granite rock drilling rig,granite crawler mounted drilling rig |
||

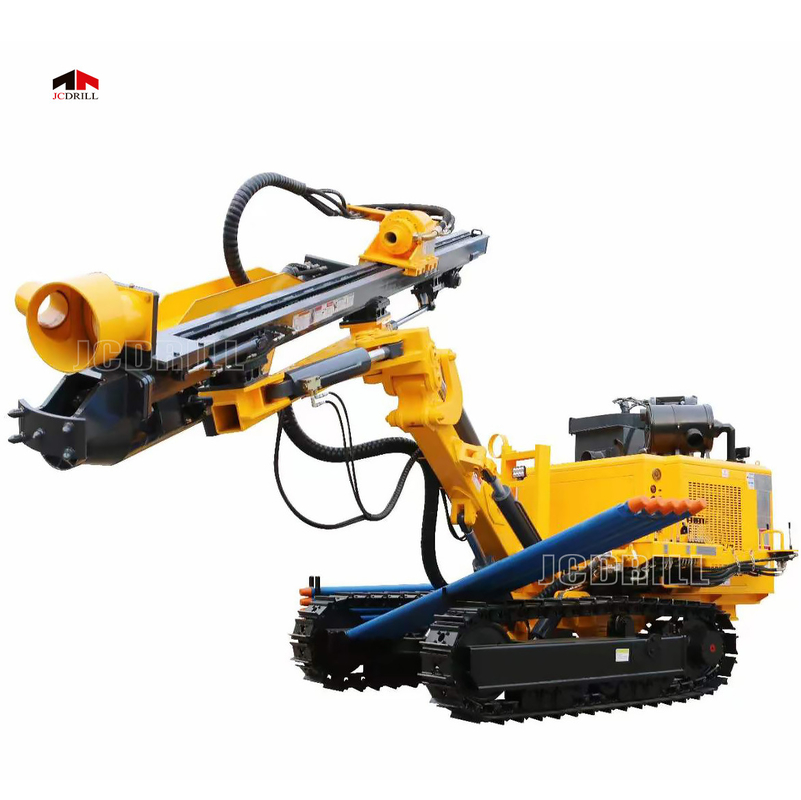

Blast Hole Rock Drilling Machine Drilling Rig for Granite JC880
Application
JC880 hydraulic down-hole rock drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind.This mobile drilling rig is convenient and efficient to operate. This drill rig is the best replacement for traditional pneumatic drills in most operation. The drilling rig is compact in structure, simple in operation, light in total weight. JC880 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries.JC880 rock blasting drilling machine is also used for anchor in road, railway, power station, civil engineering and building etc.
Specifiction
| 1 | Rock Hardness | F=6-20 | |
| 2 | Hole Diameter | mm | 90-165 |
| 3 | Hole Depth | m | 40 |
| 4 | Drilling Rod Diameter | mm | 60,76,89 |
| 5 | Rotation Torque | Nm | 4500 |
| 6 | Rotation Speed | rpm | 0-100 |
| 7 | Max. Feed force | KN | 30 |
| 8 | Max. Lifting force | KN | 30 |
| 9 | Max. Feed Speed | M/min | 15 |
| 10 | Max. Lifting Speed | M/min | 15 |
| 11 | Max Swing of Boom | ° | 45° left / 45° right |
| 12 | Max Dump of Boom | ° | up60 down20 |
| 13 | Max Swing of Guide | ° | 30(L) / 91(R) |
| 14 | Max Dump of Guide | ° | 180 |
| 25 | Guide Extension | mm | 1200 |
| 15 | Feed Stroke | m | 3 |
| 16 | Manufacturer | CUMMINS | |
| 17 | Electrical System | 24 | Volt |
| 18 | Compressor Pressure Required | M³/min | Φ≤115 11.3m2/min(1.4 Mpa) |
| Φ≤140 13m2/min(1.4 Mpa) | |||
| Φ≤165 17m2/min(1.4 Mpa) | |||
| Φ≤165 21m2/min(2.4 Mpa) | |||
| 19 | Max. Travel Speed | Km/h | 2 |
| 20 | Gradeability | ° | 24 |
| 21 | Net Weight | kg | 6100 |
| 22 | Shipping Length | mm | 6900 |
| 23 | Shipping Width | mm | 2200 |
| 24 | Shipping Height | mm | 2200 |
Packing& Delivery
