Product Details:
|
| Name: | Crawler Type Rock Blast Hole Drilling Machine 90-165mm Diameter | Application: | Rock Balsting Drilling Rig |
|---|---|---|---|
| Drilling Depth: | 40m | Drilling Diameter: | 90-165mm |
| Drill Rod: | 3000mm | Rock Hardness: | F=8-16 |
| Rotation Speed: | 0-100rpm | Working Pressure: | 1.05-2.4Mpa |
| Air Consumption: | 11.3-21 M³/min | Feed Stroke: | 3.66m |
| Keyword: | Blast Hole Drilling Machine | Dust Collector: | Wet & Dry Optional |
| High Light: | crawler type blast hole drilling machine,rock blast hole drilling machine,crawler rock drilling rig |
||

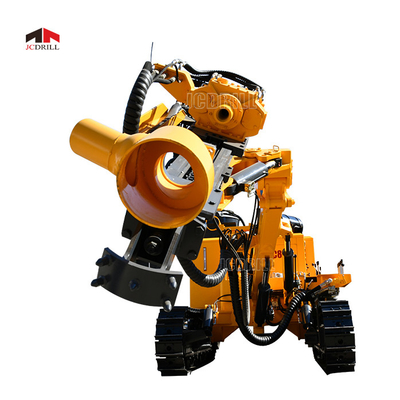

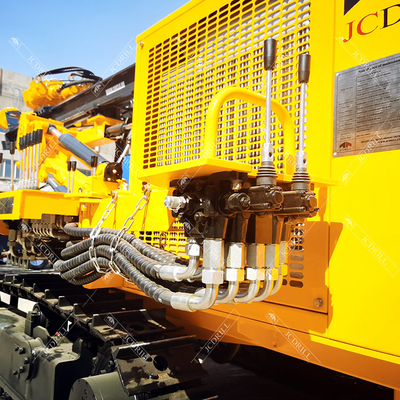

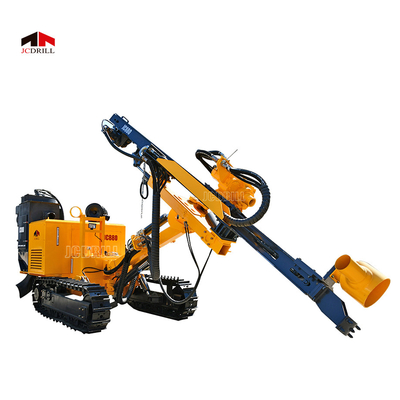

JC880 40m Drilling Capacity DTH Drilling Machine
The JC880 hydraulic drilling rig is a new product made by our factory. It is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world. JC880 is reasonable in design, excellent in performance, easy for operation, and convenient for maintenance.
Specifiction
| 1 | Rock Hardness | F=6-20 | |
| 2 | Hole Diameter | mm | 90-165 |
| 3 | Hole Depth | m | 40 |
| 4 | Drilling Rod Diameter | mm | 60,76,89 |
| 5 | Rotation Torque | Nm | 4500 |
| 6 | Rotation Speed | rpm | 0-100 |
| 7 | Max. Feed force | KN | 30 |
| 8 | Max. Lifting force | KN | 30 |
| 9 | Max. Feed Speed | M/min | 15 |
| 10 | Max. Lifting Speed | M/min | 15 |
| 11 | Max Swing of Boom | ° | 45° left / 45° right |
| 12 | Max Dump of Boom | ° | up60 down20 |
| 13 | Max Swing of Guide | ° | 30(L) / 91(R) |
| 14 | Max Dump of Guide | ° | 180 |
| 25 | Guide Extension | mm | 1200 |
| 15 | Feed Stroke | m | 3 |
| 16 | Manufacturer | CUMMINS | |
| 17 | Electrical System | 24 | Volt |
| 18 | Compressor Pressure Required | M³/min | Φ≤115 11.3m2/min(1.4 Mpa) |
| Φ≤140 13m2/min(1.4 Mpa) | |||
| Φ≤165 17m2/min(1.4 Mpa) | |||
| Φ≤165 21m2/min(2.4 Mpa) | |||
| 19 | Max. Travel Speed | Km/h | 2 |
| 20 | Gradeability | ° | 24 |
| 21 | Net Weight | kg | 6100 |
| 22 | Shipping Length | mm | 6900 |
| 23 | Shipping Width | mm | 2200 |
| 24 | Shipping Height | mm | 2200 |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
