Hydraulic 40m Depth Rock Drilling Rig Blasting Machine

Hydraulic 40m Depth Rock Drilling Rig Blasting Machine
Hydraulic 40m Depth Rock Drilling Rig Blasting Machine Hydraulic 40m Depth Rock Drilling Rig Blasting Machine Hydraulic 40m Depth Rock Drilling Rig Blasting Machine

Large Image :  Hydraulic 40m Depth Rock Drilling Rig Blasting Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JC880
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export ocean transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000Set/year

Hydraulic 40m Depth Rock Drilling Rig Blasting Machine

Description
Name: Hydraulic 40m Depth Rock Drilling Rig Blasting Machine Application: Rock Balsting Drilling Rig
Drilling Depth: 40m Drilling Diameter: 90-165mm
Drill Rod: 3000mm Rock Hardness: F=8-16
Rotation Speed: 0-100rpm Working Pressure: 1.05-2.4Mpa
Air Consumption: 11.3-21 M³/min Feed Stroke: 3.66m
Keyword: Rock Mining Drilling Equipment Dust Collector: Wet & Dry Optional
High Light:

hydraulic rock drilling rig

,

40m depth rock drilling rig

,

rock mining drilling equipment

JC880 40m Drilling Capacity DTH Drilling Machine



JC880 Hydraulic rock Drilling Rig, an up-to-date multifunctional product is a thoroughly new-type hydraulic rock drilling rig developed on the basis of the market demand and the advanced techniques in the world.

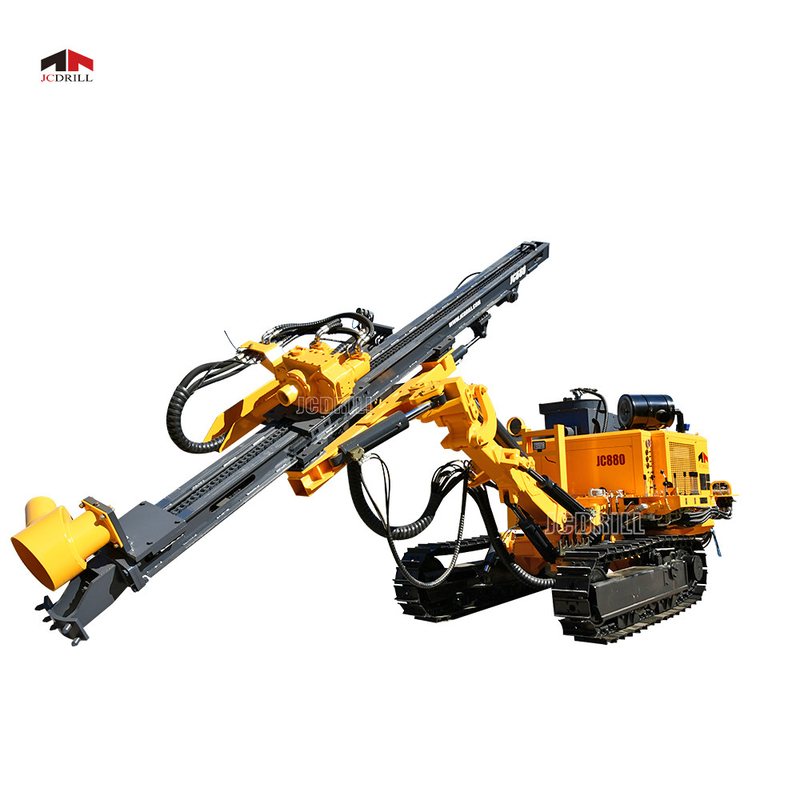

Hydraulic 40m Depth Rock Drilling Rig Blasting Machine 0

Specifiction

1 Rock Hardness F=6-20
2 Hole Diameter mm 90-165
3 Hole Depth m 40
4 Drilling Rod Diameter mm 60,76,89
5 Rotation Torque Nm 4500
6 Rotation Speed rpm 0-100
7 Max. Feed force KN 30
8 Max. Lifting force KN 30
9 Max. Feed Speed M/min 15
10 Max. Lifting Speed M/min 15
11 Max Swing of Boom ° 45° left / 45° right
12 Max Dump of Boom ° up60 down20
13 Max Swing of Guide ° 30(L) / 91(R)
14 Max Dump of Guide ° 180
25 Guide Extension mm 1200
15 Feed Stroke m 3
16 Manufacturer   CUMMINS
17 Electrical System 24 Volt
18 Compressor Pressure Required M³/min Φ≤115 11.3m2/min(1.4 Mpa)
Φ≤140 13m2/min(1.4 Mpa)
Φ≤165 17m2/min(1.4 Mpa)
Φ≤165 21m2/min(2.4 Mpa)
19 Max. Travel Speed Km/h 2
20 Gradeability ° 24
21 Net Weight kg 6100
22 Shipping Length mm 6900
23 Shipping Width mm 2200
24 Shipping Height mm 2200

Packing& Delivery

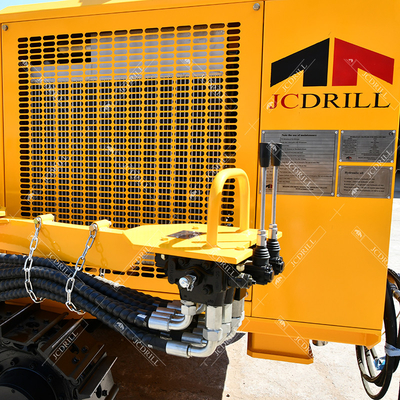

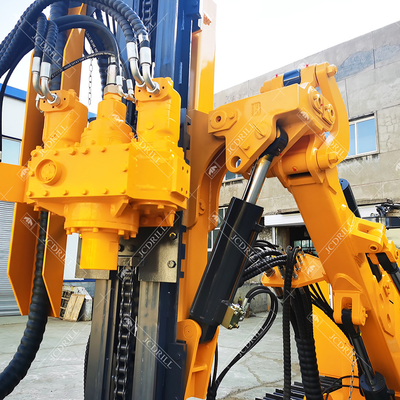

Hydraulic 40m Depth Rock Drilling Rig Blasting Machine 1 Hydraulic 40m Depth Rock Drilling Rig Blasting Machine 2

Service

12'' High Pressure DTH hammer for fundation,construction and borehole drilling ,305-445mm hole range

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
