Product Details:
|
Name: | 74kw Cummins Engine Dth Underground Drill Rig Rock Blasting Machine | Application: | Rock Balsting Drilling Rig |
---|---|---|---|
Drilling Depth: | 40m | Drilling Diameter: | 90-165mm |
Drill Rod: | 3000mm | Rock Hardness: | F=8-16 |
Rotation Speed: | 0-100rpm | Working Pressure: | 1.05-2.4Mpa |
Air Consumption: | 11.3-21 M³/min | Feed Stroke: | 3.66m |
Keyword: | Hard Rock Drilling Machine | Dust Collector: | Wet & Dry Optional |
High Light: | cummins engine underground drill rig,dth hard rock drilling machine,rock underground drill rig |

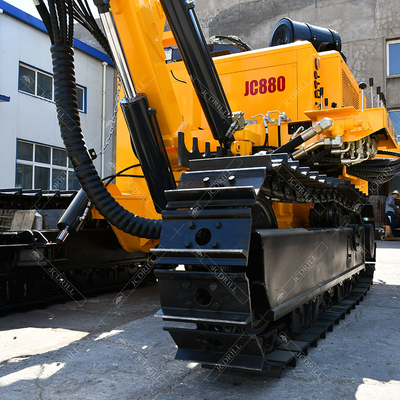

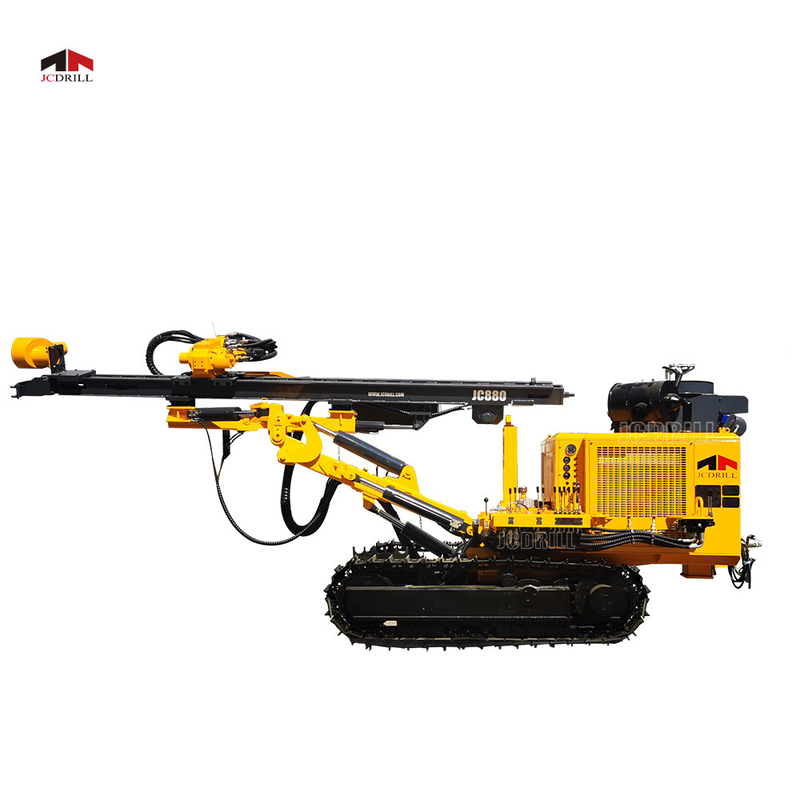

JC880 40m Drilling Capacity DTH Drilling Machine
JCDRILL rock drilling rig is suitable to be used in anchor in road, railway, power station, civil engineering and building. JC880 is excellent in performance, high in working efficiency, easy for operation and it can efficiently keep the operators from danger.
Specifiction
1 | Rock Hardness | F=6-20 | |
2 | Hole Diameter | mm | 90-165 |
3 | Hole Depth | m | 40 |
4 | Drilling Rod Diameter | mm | 60,76,89 |
5 | Rotation Torque | Nm | 4500 |
6 | Rotation Speed | rpm | 0-100 |
7 | Max. Feed force | KN | 30 |
8 | Max. Lifting force | KN | 30 |
9 | Max. Feed Speed | M/min | 15 |
10 | Max. Lifting Speed | M/min | 15 |
11 | Max Swing of Boom | ° | 45° left / 45° right |
12 | Max Dump of Boom | ° | up60 down20 |
13 | Max Swing of Guide | ° | 30(L) / 91(R) |
14 | Max Dump of Guide | ° | 180 |
25 | Guide Extension | mm | 1200 |
15 | Feed Stroke | m | 3 |
16 | Manufacturer | CUMMINS | |
17 | Electrical System | 24 | Volt |
18 | Compressor Pressure Required | M³/min | Φ≤115 11.3m2/min(1.4 Mpa) |
Φ≤140 13m2/min(1.4 Mpa) | |||
Φ≤165 17m2/min(1.4 Mpa) | |||
Φ≤165 21m2/min(2.4 Mpa) | |||
19 | Max. Travel Speed | Km/h | 2 |
20 | Gradeability | ° | 24 |
21 | Net Weight | kg | 6100 |
22 | Shipping Length | mm | 6900 |
23 | Shipping Width | mm | 2200 |
24 | Shipping Height | mm | 2200 |
