Product Details:
|
| Model Number: | TWD300B DTH Water Well Drilling Rig | Drilling Depth: | 300m |
|---|---|---|---|
| Drilling Diameter: | 405mm | Drill Pipe Length: | 3000mm 4500mm |
| Usage: | Drilling Water Well | Drilling Methold: | DTH Drilling MUD Rotary |
| Engine Power: | 85KW Or Others | Mud Pump: | BW450 |
| Chassis: | Trailer Mounted Water Well Drilling Rig | ||
| High Light: | 300m portable water well drilling rigs,dth portable water well drilling rigs,300m dth borewell machine |
||

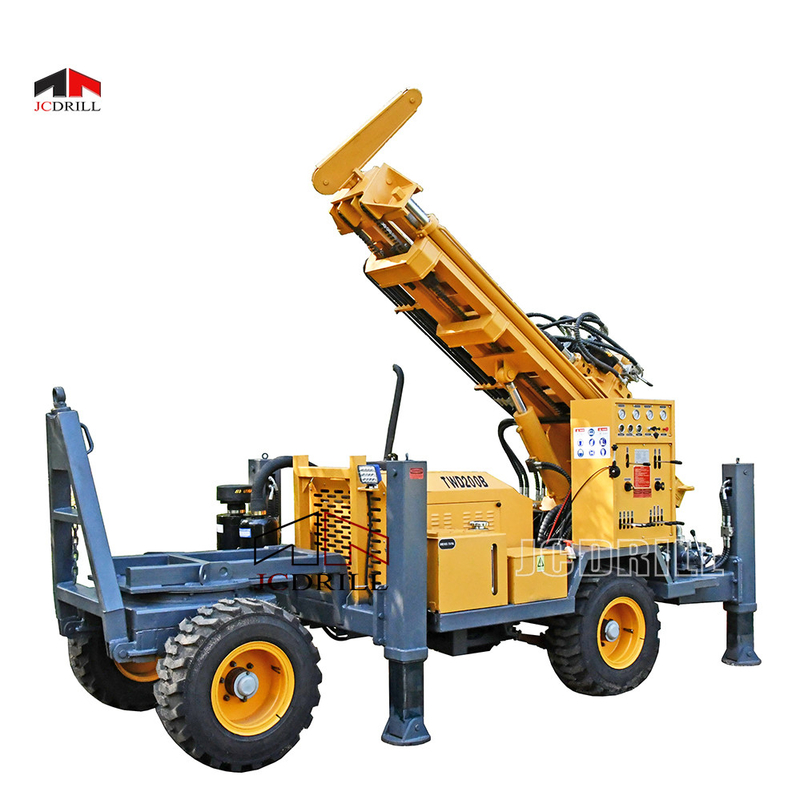

300m Wheel Portable Mounted DTH Water Well Drilling Rig
>> Introduction
TWD Series It is multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.High efficiency , having a larger torque of the turntable ,mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working.
>> TWD300 Trailer type water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It supports rotary
drilling mode and dth with high-pressure air, foam and mud according to different geological conditions abd land formation.
>> Specification
| Specification | Unit | TWD300B |
| Geology drilled | All Kind | |
| Drilling Type | DTH & MUD | |
| Drill system and operation | Hydraulic | |
| Hole Diameter | mm | Φ90—Φ450 |
| Hole Depth | m | 300 |
| Rotation Torque | Nm | 3500-8500 |
| Rotation Speed | rpm | 45-115 |
| Drill pipe diameter | mm | 76/89/102 |
| Drill pipe length | mm | 3000/4500(Optional) |
| Max. Feed Speed | M/min | 2-17 |
| Max. Lifting Speed | M/min | 1.5-12.4 |
| Feed Stroke | mm | 450 |
| Max. Pull back Capacity | T | 15 |
| Lifting force of Winch | T | 1.2(Optional) |
| Engine | ||
| Diesel Engine type | 4Cylinder,water cooling | |
| Diesel Engine Brand | Yuchai | |
| Rated Horse power | Kw | 90 |
| Compressor required(Optional) | ||
| Pressure Required | Mpa | 1.5-2.5 |
| Air consumption | m³/min | 15-30 |
| Mud Pump(Optional/Separate) | ||
| Model | BW250/BW450 | |
| Displacement | L/Min | |
| Discharge pressure (Mpa) | Mpa | 2-5 |
| Trailer | ||
| Trailer Type | 4 wheels trailer,front wheels with steering | |
| Mobility | Towed by pickup or light truck | |
| Dimension | ||
| Net Weight | T | 4300 |
| Shipping LxWXH | mm | 4300*1820*2150 |
| Ground Clearance | mm | 320 |
>> Characteristic
|
85KW,4Cylinder,water cooling Diesel Engine
Famous Brand Hydraulic System |
|
Big Torque & Fast Rotation Speed |
|
|
>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency. >> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis. >> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. >> The power of drilling rig comes from a diesel engine,High power diesel engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance. >> The rotary head,have two gear,rotation speed is 0-80 and115rpm stepless adjustment and the drilling rigs with high rotary torque. >> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling. >> It can set up a generator which is convenient to welding or illuminate for work at night. >> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation. |
>> Package & Delivery
>> Overseas Service&Project
>> About us
|
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
|
>> FAQ
|
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." |
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
|
