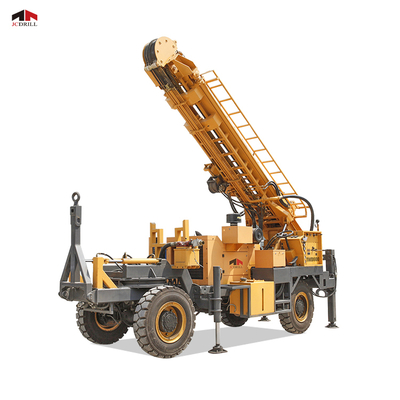

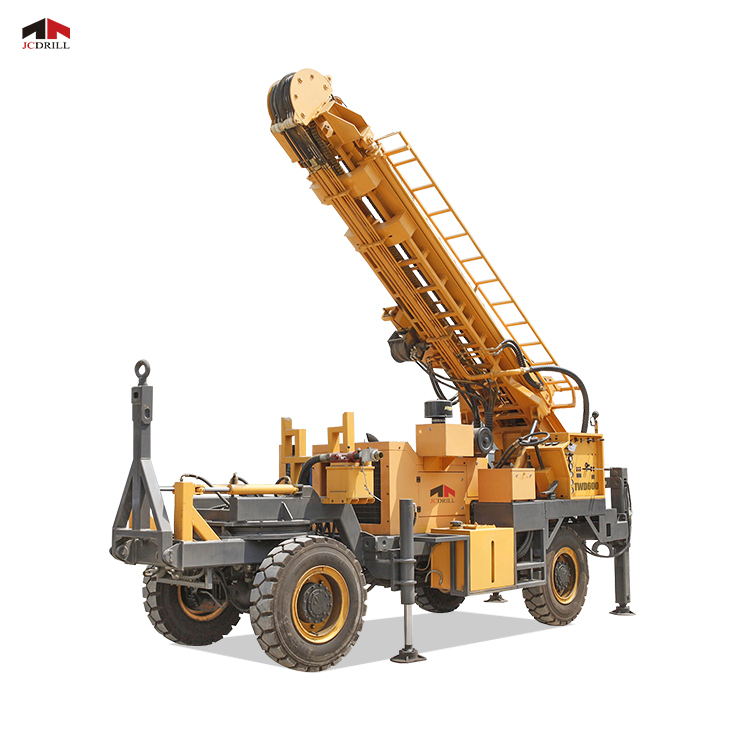

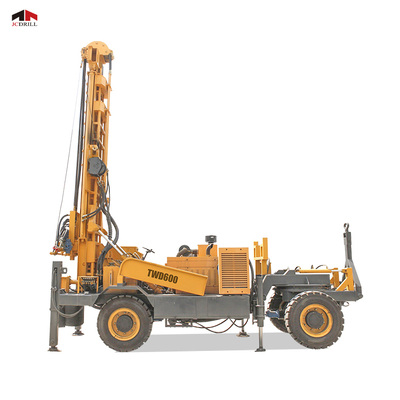

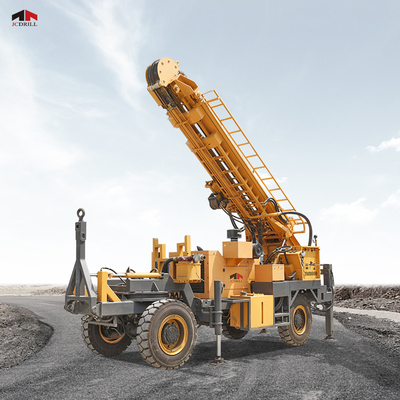

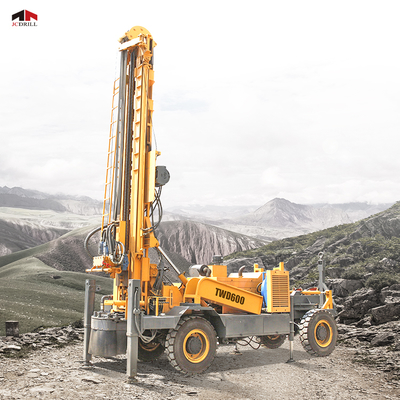

TWD600 Hydraulic Four Wheels Trailer Mounted Water Well Drilling Rig

Name: TWD600 Hydraulic Four Wheels Trailer Mounted Water Well Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: TWD600
Price: 14,010.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	TWD600
MOQ:	1Set
Price:	Negotation
Payment Terms:	T/T,L/C,D/P,Western Union,MoneyGram
Supply Ability:	2000 Set/Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO,CE

Model Number:

TD600

Dimension:

5800*2100*2850m

Driling Diameter:

100-450mm

Engine:

CMS

Drilling Depth:

MAX.600m

Weight:

5400kg 11000kg

Supply Ability:

2000 Set/Sets per Year

Highlight:

hydraulic water well drilling rig

portable water well drilling rig 600m depth

water well drilling rig 450mm diameter

Product Description

TWD600 Trailer Mounted CMS Hydraulic Water Well Drilling Rig

Product Specifications

Attribute	Value
Model Number	TD600
Dimension	580021002850mm
Drilling Diameter	100-450mm
Engine	CMS
Drilling Depth	MAX.600m
Weight	5400kg - 11000kg

Product Description

TWD600 Trailer Mounted Water Well Drilling Rig is a high-efficiency, multi-functional full hydraulic drilling rig. With its larger torque turntable, it's ideal for water wells in industrial and agricultural applications, national defense building foundations, geological exploration, geothermal wells, and other foundation work. This rig is popular both domestically and internationally.

The TWD600 can drill in all formations using mud drilling for soft formations and air DTH hammer for rock drilling. The DTH Hammer significantly improves efficiency in rock drilling, with air pressure discharging slag at rates ten times faster than traditional rotary drilling.

This deep water well drilling rig operates in unconsolidated layers using cutting or rotary drilling with mud discharge, or impact drilling with pressure air discharge. Its hydraulic system makes it suitable for drilling in complex geological conditions.

Technical Parameters

No.	Item	Unit	TWD600
1	Geology Drilled		All Kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill System and Operation		Hydraulic
4	Hole Diameter	mm	105-450mm
5	Hole Depth	m	600
6	Rotation Torque	Nm	6000-12000
7	Rotation Speed	rpm	0-110
8	Drill Pipe Diameter	mm	89/102/114
9	Drill Pipe Length	mm	4500
10	Max.Feed Speed	T	18
11	Max. Lifting Speed	M/min	5-20
12	Feed Stroke	mm	5000
13	Max. Pull Back Capacity	T	30
14	Lifting Force of Main Winch(Optional)	T	4
15	Lifting Force of Hoist	T	1.5
16	Lifting Height of Tool Winch	m	6
Engine
17	Diesel Engine Type		CUMMINS
18	Rated Horse Power	Kw	132
19	Electrical System	Volt	24
Compressor Required
20	Compressor Type		Rotary Screw/Movable
21	Pressure Required	Mpa	1.05-2.46
22	Air Consumption	M3/min	16-30
Mud Pump
23	Power Type		Hydraulic
24	Model		BW850
25	Stroke	mm	100
26	Displacement	L/Min	850
27	Discharge Pressure	Mpa	2-3
Trailer
28	Type		Heavy Duty
29	Wheel Quantity		4 Wheels
Dimension
30	Net Weight	T	12
31	Shipping Length	mm	10500
32	Shipping Width	mm	2100
33	Shipping Height	mm	2850

Product Configuration

Key Features

Dual drilling capability: air DTH Hammer drilling and mud drilling
Centralized control console for efficient operation and monitoring
Hydraulic system with rapid pulling and lifting to enhance efficiency
Comprehensive component setup on chassis including main drive system, transfer case, gearbox, and more
Powerful Yuchai engine (93kw) driving high-pressure plunger pump for stable performance
Two-gear rotary head with 0-80 and 160rpm stepless adjustment and 6900Nm torque
Adjustable pulling force suitable for deep hole drilling
Optional generator for welding or night work illumination
Main winch available for high-efficiency drilling on mud rock and weathering formations
Hydraulic operation of landing legs, drilling tower, transfer case, and mud pump clutch system
Tools winch for auxiliary lifting and casing operations
Competitive pricing with low maintenance costs

Product Loading

Frequently Asked Questions

Q: Are you original manufacturer?

A: Yes, we JCDRILL are an official leading manufacturer of drilling machinery in China with a complete product line.

Q: Which payment terms are available?

A: We accept T/T (30% deposit, 70% before shipment) or 100% irrevocable L/C without "soft clauses".

Q: How long is the delivery time?

A: Typically 3-15 days for production, with most regular machines available for immediate delivery within 15 days.

Q: What about after-sales service?

A: We provide 365*24 year-round service with a 15-minute response time and 24-hour job completion policy.

Q: How about spare parts availability?

A: We maintain spare parts centers across continents with delivery within 72 hours to one week.
