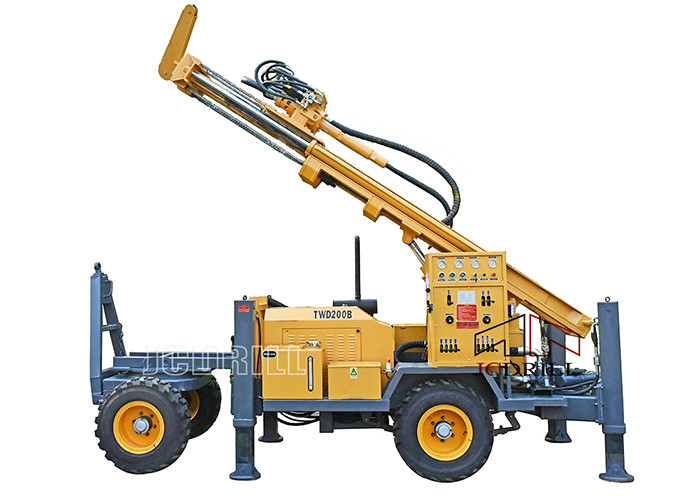

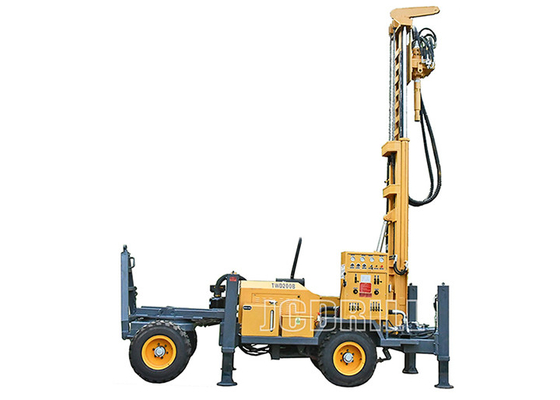

Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic

Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic
Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic
Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic

Large Image :  Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD300B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

Ce 300m Deep Water Well Rotary Drilling Machine Portable Full Hydraulic

Description
Model Number: TWD300B Water Well Drilling Rig Drilling Depth: 300m
Drilling Diameter: 405mm Drill Pipe Length: 3000mm 4500mm
Usage: Drilling Water Well Drilling Methold: DTH Drilling MUD Rotary
Engine Power: 85KW Or Others Mud Pump: BW450
Chassis: Trailer Mounted Water Well Drilling Rig
High Light:

hydraulic water well rotary drilling machine

,

300m rotary water well drilling rigs

,

300m water well rotary drilling machine

300m Deep Portable Full Hydraulic Water Well Rotary Drilling Rig





>> Introduction



TWD Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

>> TWD300 Trailer type water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It has rotary
drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions.

>> TWD series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.



>> Specification



Specification Unit TWD300B
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ450
Hole Depth m 300
Rotation Torque Nm 3500-8500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000/4500(Optional)
Max. Feed Speed M/min 2-17
Max. Lifting Speed M/min 1.5-12.4
Feed Stroke mm 450
Max. Pull back Capacity T 15
Lifting force of Winch T 1.2(Optional)
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   Yuchai
Rated Horse power Kw 90
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate)
Model   BW250/BW450
Displacement L/Min
Discharge pressure (Mpa) Mpa 2-5
Trailer
Trailer Type   4 wheels trailer,front wheels with steering
Mobility   Towed by pickup or light truck
Dimension
Net Weight T 4300
Shipping LxWXH mm 4300*1820*2150
Ground Clearance mm 320







>> Characteristic


85KW,4Cylinder,water cooling Diesel Engine



Famous Brand Hydraulic System

Big Torque

&

Fast Rotation Speed

gear box.jpg
c.jpg >> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a diesel engine,High power diesel engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 0-80 and115rpm stepless adjustment and the drilling rigs with high rotary torque.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>> Package & Delivery


>> Overseas Service&Project




>> About us



JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.











>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
