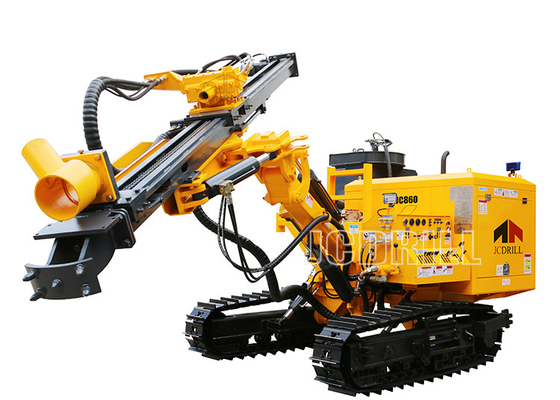

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860
90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860

Large Image :  90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE ISO9001:2000
Model Number: JC860 DTH horizontal air rock blasting hole drilling rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: usd
Delivery Time: 15 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000/year

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860

Description
Dimension(L*W*H): 6000*2000*2480mm Drilling Diameter:: 90mm-152mm
Air Consumption-Flow Rate: 11.3-21m3/min Rotation Speed: 0-112rpm
Weight: 5500 KG Drilling Depth: Max.40m
Rotation Torque: 2650Nm Drilling Rod Diameter: 60,76,89 Optional
High Light:

90mm dth drilling rig

,

blasting hole dth drilling rig

,

90mm horizontal drilling rig



DTH horizontal air rock blasting hole drilling rig JC860

>> Introduction of the drilling rig

JC860 hydraulic down-hole drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate.

JC860 DTH drilling rig is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight.

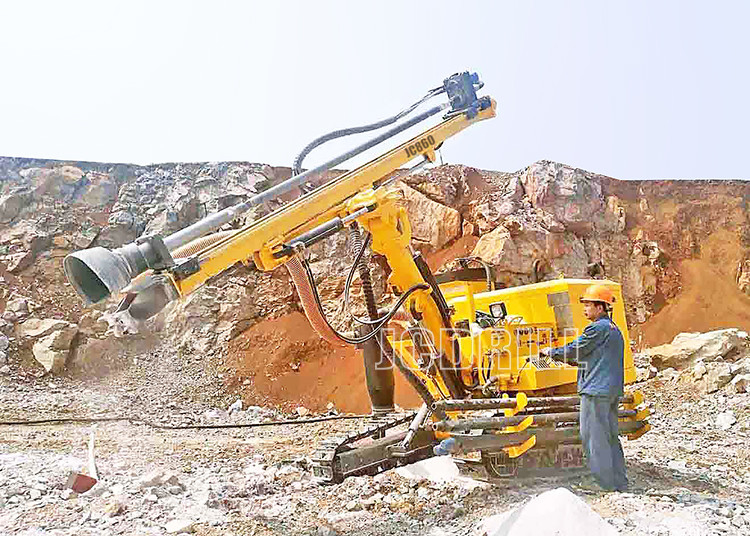

JC860 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.



The Rugged track was driven by hydraulic motor with high traveling ability.The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 0

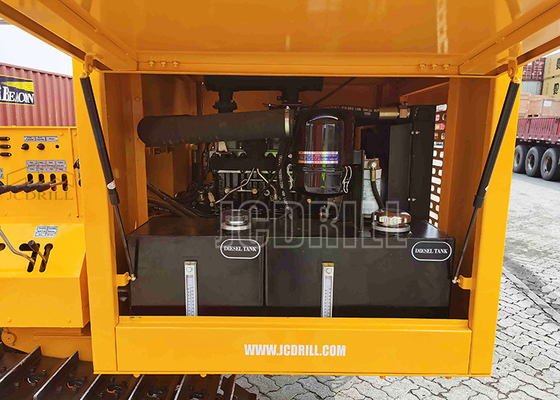

>> Characteristics of the drilling rig

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 1

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 2

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 3

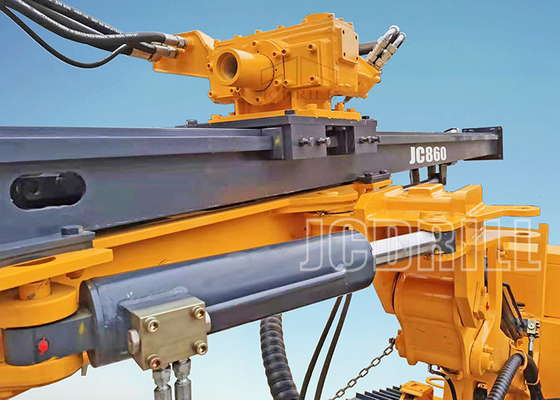

>> The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.

>> The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.

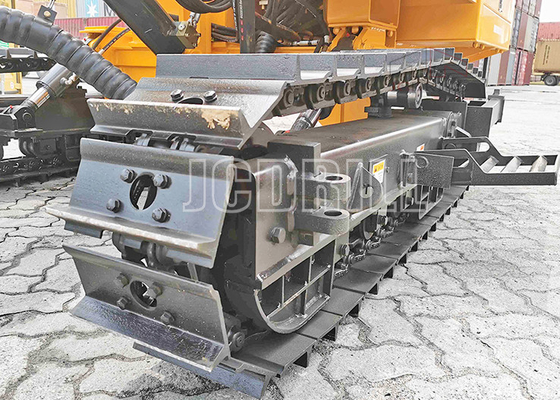

>> The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.

>> The carriage with rollers provides for minimal wear to the drill guide.

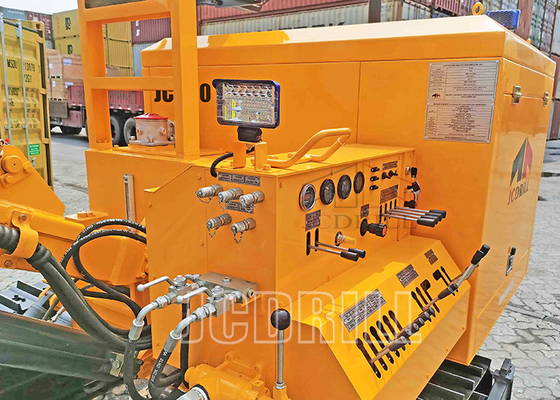

>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.

>> The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.

>> The special compensation device makes a full protection of drill rod threads.

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 4

>> Specification of the drilling rig

Specification Unit JC860
Drilling Specification
Rock Hardness F=6-20
Hole Diameter mm 90-152
Hole Depth m 40
Drilling Rod Diameter mm 60,76,89
Rotary Head
Rotation Torque Nm 2650
Rotation Speed(Normal and Fast) rpm 0-82/0-112
Feeding System
Max. Feed force KN 25
Max. Lifting force KN 30
Max. Feed Speed M/min 15
Max. Lifting Speed M/min 15
Boom&Guide
Max Swing of Boom ° 45° left / 45° right
Max Dump of Boom ° up60 down20
Max Swing of Mast ° 30(L) / 91(R) or91(L) / 30(R)
Max Dump of Mast ° 180
Feed Stroke m 3.2
Engine
Manufacturer   YUCHAI
Rated Horse power Kw 63
Type   4Cylinder,water cooling
Air Compressor demand
Air Consumption M³/min 11.3-21m2/min(1.4-2.4 Mpa)
Compressor Type Rotary Screw/Movable
Dust Collector
Dry/Wet   Optional
General Specification
Max. Travel Speed(Slow/Fast) Km/h 2/3
Gradeability ° 24
Net Weight kgs 5500
Shipping Dimension(L*W*H) mm 6000*2000*2480
Ground Clearance mm 252

>> Package & Shipment

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 5

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 6

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 7

>> Overseas Service&Project

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 8

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 9

90mm Dth Drilling Rig Horizontal Air Rock Blasting Hole Jc860 10

>> About JCDRILL


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.









>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.



A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
