Product Details:
|
| Dimension(L*W*H): | 6000*2000*2480mm | Drilling Diameter:: | 90mm-152mm |
|---|---|---|---|
| Air Consumption-Flow Rate: | 11.3-21m3/min | Rotation Speed: | 0-112rpm |
| Weight: | 5500 KG | Drilling Depth: | Max.40m |
| Rotation Torque: | 2650Nm | Drilling Rod Diameter: | 60,76,89 Optional |
| High Light: | 152mm rock drilling rig,blasting rock drilling rig,152mm rock drilling equipment |
||

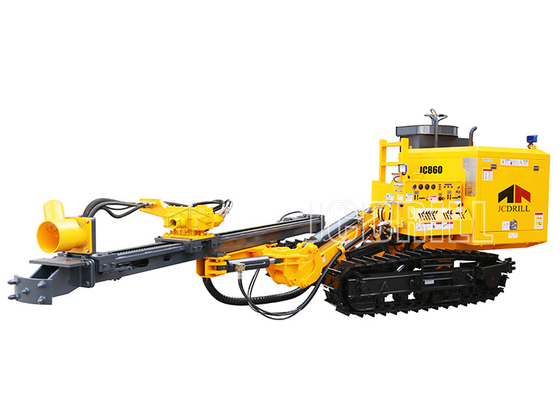

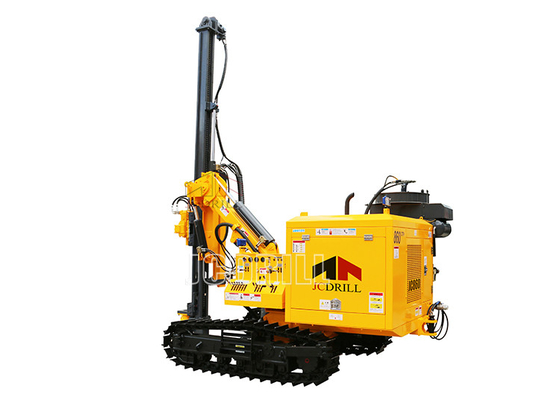

Track full hydraulic rock blasting mining drilling machine JC860
>> Introduction of the drilling rig
|
JC860 hydraulic down-hole drill is a multi-functional drill rig driven by internal combustion engine, the drilling power
It is convenient and efficient to It is also used for anchor in road, railway, power station, civil engineering and building etc |
 |
>> Specification of the drilling rig
| Specification | Unit | JC860 |
| Drilling Specification | ||
| Rock Hardness | F=6-20 | |
| Hole Diameter | mm | 90-152 |
| Hole Depth | m | 40 |
| Drilling Rod Diameter | mm | 60,76,89 |
| Rotary Head | ||
| Rotation Torque | Nm | 2650 |
| Rotation Speed(Normal and Fast) | rpm | 0-82/0-112 |
| Feeding System | ||
| Max. Feed force | KN | 25 |
| Max. Lifting force | KN | 30 |
| Max. Feed Speed | M/min | 15 |
| Max. Lifting Speed | M/min | 15 |
| Boom&Guide | ||
| Max Swing of Boom | ° | 45° left / 45° right |
| Max Dump of Boom | ° | up60 down20 |
| Max Swing of Mast | ° | 30(L) / 91(R) or91(L) / 30(R) |
| Max Dump of Mast | ° | 180 |
| Feed Stroke | m | 3.2 |
| Engine | ||
| Manufacturer | YUCHAI | |
| Rated Horse power | Kw | 63 |
| Type | 4Cylinder,water cooling | |
| Air Compressor demand | ||
| Air Consumption | M³/min | 11.3-21m2/min(1.4-2.4 Mpa) |
| Compressor Type | Rotary Screw/Movable | |
| Dust Collector | ||
| Dry/Wet | Optional | |
| General Specification | ||
| Max. Travel Speed(Slow/Fast) | Km/h | 2/3 |
| Gradeability | ° | 24 |
| Net Weight | kgs | 5500 |
| Shipping Dimension(L*W*H) | mm | 6000*2000*2480 |
| Ground Clearance | mm | 252 |
>> Characteristics of the drilling rig
1.The Rugged track was driven by hydraulic motor with high traveling ability.
2.The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling
cost are lower.
3.The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more
suitable for operation in complex worksites.
4.The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best
price-performance ratio than air rig.
5.The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.
6.The carriage with rollers provides for minimal wear to the drill guide.
7.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and
guide dump.
8.The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.
9.The special compensation device makes a full protection of drill rod threads.

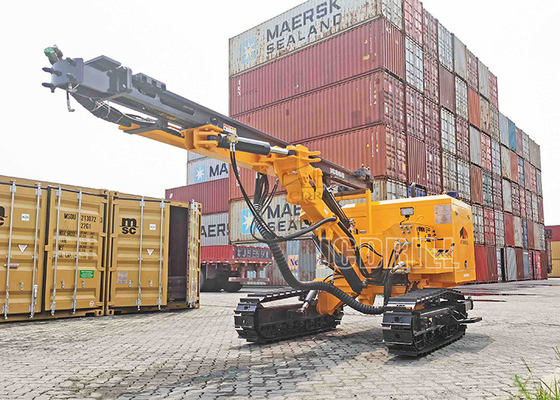

>> Package & Shipment
