Crawler Mounted 40m Rock Drilling Rig Blasting Mining

Crawler Mounted 40m Rock Drilling Rig Blasting Mining
Crawler Mounted 40m Rock Drilling Rig Blasting Mining
Crawler Mounted 40m Rock Drilling Rig Blasting Mining Crawler Mounted 40m Rock Drilling Rig Blasting Mining Crawler Mounted 40m Rock Drilling Rig Blasting Mining Crawler Mounted 40m Rock Drilling Rig Blasting Mining Crawler Mounted 40m Rock Drilling Rig Blasting Mining Crawler Mounted 40m Rock Drilling Rig Blasting Mining

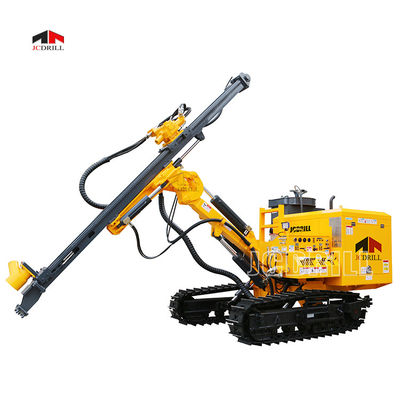

Large Image :  Crawler Mounted 40m Rock Drilling Rig Blasting Mining

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE ISO9001:2000
Model Number: JC860 rock blasting mining drilling rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: usd
Delivery Time: 15 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000/year

Crawler Mounted 40m Rock Drilling Rig Blasting Mining

Description
Dimension(L*W*H): 6000*2000*2480mm Drilling Diameter:: 90mm-152mm
Air Consumption-Flow Rate: 11.3-21m3/min Rotation Speed: 0-112rpm
Weight: 5500 KG Drilling Depth: Max.40m
Rotation Torque: 2650Nm Drilling Rod Diameter: 60,76,89 Optional
Highlight:

40m rock drilling rig

,

crawler mounted rock drilling rig

,

40m rock drilling equipment

Crawler mounted rock blasting mining drilling rig JC860



>> Specification of the drilling rig

Specification Unit JC860
Drilling Specification
Rock Hardness F=6-20
Hole Diameter mm 90-152
Hole Depth m 40
Drilling Rod Diameter mm 60,76,89
Rotary Head
Rotation Torque Nm 2650
Rotation Speed(Normal and Fast) rpm 0-82/0-112
Feeding System
Max. Feed force KN 25
Max. Lifting force KN 30
Max. Feed Speed M/min 15
Max. Lifting Speed M/min 15
Boom&Guide
Max Swing of Boom ° 45° left / 45° right
Max Dump of Boom ° up60 down20
Max Swing of Mast ° 30(L) / 91(R) or91(L) / 30(R)
Max Dump of Mast ° 180
Feed Stroke m 3.2
Engine
Manufacturer   YUCHAI
Rated Horse power Kw 63
Type   4Cylinder,water cooling
Air Compressor demand
Air Consumption M³/min 11.3-21m2/min(1.4-2.4 Mpa)
Compressor Type Rotary Screw/Movable
Dust Collector
Dry/Wet   Optional
General Specification
Max. Travel Speed(Slow/Fast) Km/h 2/3
Gradeability ° 24
Net Weight kgs 5500
Shipping Dimension(L*W*H) mm 6000*2000*2480
Ground Clearance mm 252

>> Introduction of the drilling rig

JC860 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries.

The feed and rotary head were driven by
hydraulic motor, therefore, the air and oil
consumption and total drilling cost are lower.

The hydraulic feed and rotary head put
out the biggest feeding force and largest
rotary torque, which makes it more suitable
for operation in complex worksites.

The drill is compact in structure, simple in operation, light in total weight.

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 0

>> Characteristics of the drilling rig

>> The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.

>> The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.

>> The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.

>> The carriage with rollers provides for minimal wear to the drill guide.

>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.

>> The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.

>> The special compensation device makes a full protection of drill rod threads.



Crawler Mounted 40m Rock Drilling Rig Blasting Mining 1

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 2

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 3



Crawler Mounted 40m Rock Drilling Rig Blasting Mining 4

>> Package & Shipment

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 5

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 6

>> Overseas Service&Project

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 7

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 8

>> Our Service

Crawler Mounted 40m Rock Drilling Rig Blasting Mining 9

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special requirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.

>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.



>> About JCDRILL


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.











>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.



A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
