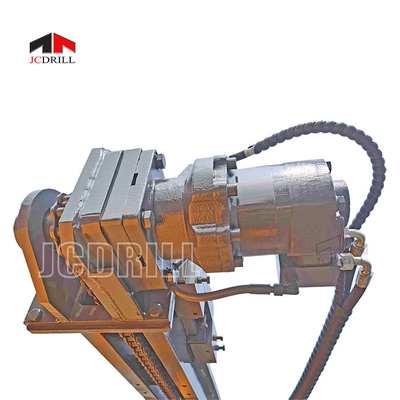

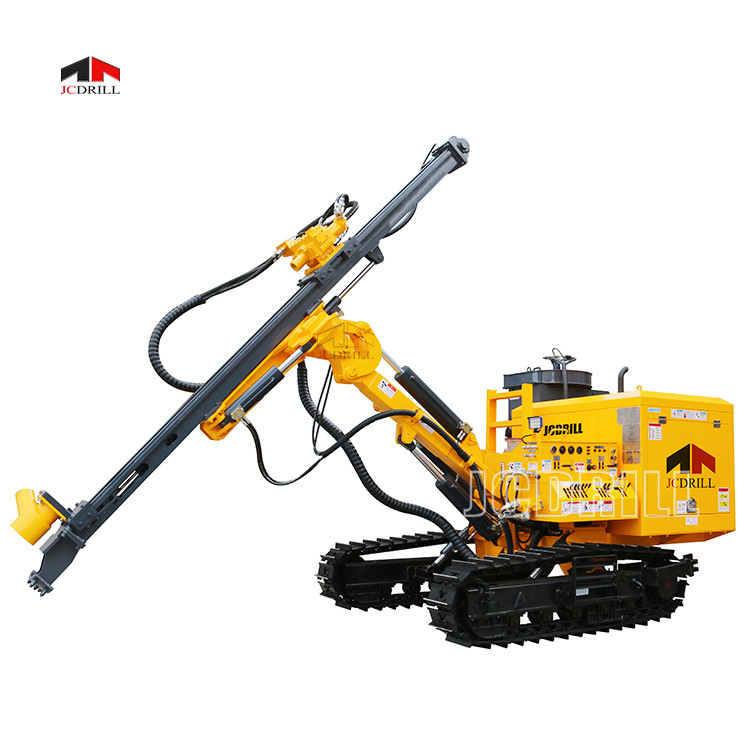

Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth

Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth
Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth
Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth

Large Image :  Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: JC860
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD28000-35000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets per year

Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Online Support,Video Technical Support,Engineers Available To Service Machinery Overseas Drilling Depth: 40m
Drilling Diameter: 90-152mm Application: Mining
Engine: 63Kw Diesel Engine Air Consumption: 11.3-21m2/min(1.4-2.4 Mpa)
Max Swing Of Boom: 45° Left / 45° Right Max Dump Of Boom: Up60 Down20
Max Swing Of Mast: 30(L) / 91(R) Or91(L) / 30(R) Shipping Dimension(L*W*H): 6000*2000*2480mm
High Light:

63Kw rock drill rig

,

dth rock drill rig

,

diesel engine dth drilling machine

Heavy duty crawler mounted hydraulic DTH rock blasting quarry and mining drilling rig machine for sales

>> Characteristics of the drilling rig

>> The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.

>> The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.

>> The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.

>> The carriage with rollers provides for minimal wear to the drill guide.

>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.

>> The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.

>> The special compensation device makes a full protection of drill rod threads.

>> Introduction of the drilling rig

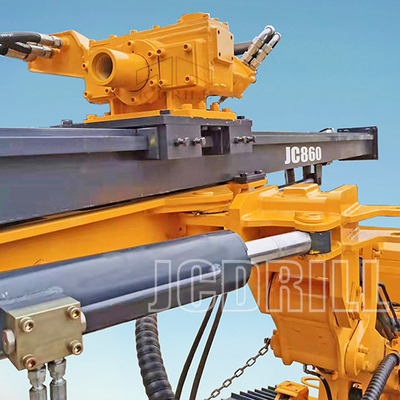

JC860 hydraulic down-hole drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate.

JC860 DTH drilling rig is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight.

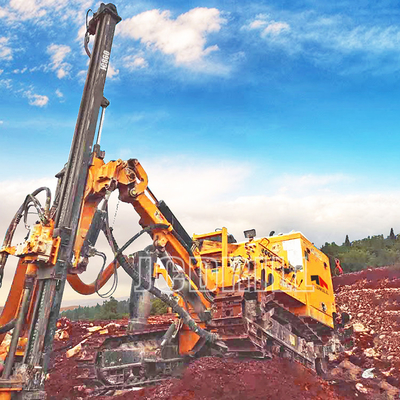

JC860 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.



The Rugged track was driven by hydraulic motor with high traveling ability.The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.

Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth 0



>> Specification of the drilling rig

Specification Unit JC860
Drilling Specification
Rock Hardness F=6-20
Hole Diameter mm 90-152
Hole Depth m 40
Drilling Rod Diameter mm 60,76,89
Rotary Head
Rotation Torque Nm 2650
Rotation Speed(Normal and Fast) rpm 0-82/0-112
Feeding System
Max. Feed force KN 25
Max. Lifting force KN 30
Max. Feed Speed M/min 15
Max. Lifting Speed M/min 15
Boom&Guide
Max Swing of Boom ° 45° left / 45° right
Max Dump of Boom ° up60 down20
Max Swing of Mast ° 30(L) / 91(R) or91(L) / 30(R)
Max Dump of Mast ° 180
Feed Stroke m 3.2
Engine
Manufacturer   YUCHAI
Rated Horse power Kw 63
Type   4Cylinder,water cooling
Air Compressor demand
Air Consumption M³/min 11.3-21m2/min(1.4-2.4 Mpa)
Compressor Type Rotary Screw/Movable
Dust Collector
Dry/Wet   Optional
General Specification
Max. Travel Speed(Slow/Fast) Km/h 2/3
Gradeability ° 24
Net Weight kgs 5500
Shipping Dimension(L*W*H) mm 6000*2000*2480
Ground Clearance mm 252



>> Our Service


Heavy Duty 63Kw Rock Drill Rig Crawler Mounted Hydraulic Dth 1

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special requirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.

>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
