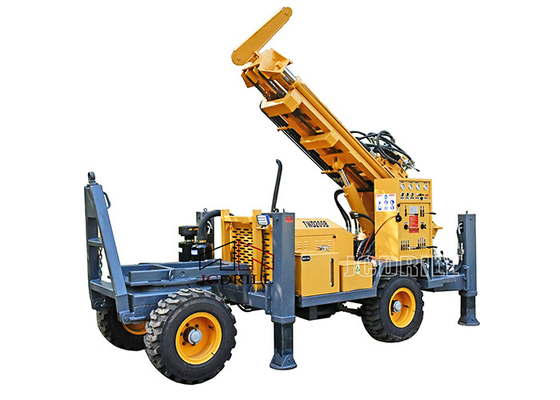

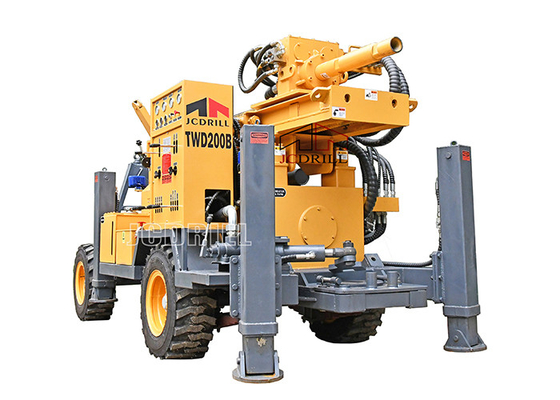

Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump

Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump
Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump
Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump

Large Image :  Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: TWD300B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD26000-28000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets per year

Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump

Description
Drilling Depth: 300M Drilling Diameter: 90-450MM
Dimension(l*w*h): 4300*1820*2150mm Warranty: 1 Year
Weight: 4300Kg After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training
Usage: Water Well Power Type: Diesel
Application: Drilling Well Color: Yellow
High Light:

300m rig water well drilling

,

air compressor rig water well drilling

,

300m hydraulic water well drilling rig



Multi-functional yellow water drilling rig working with air compressor and mud pump

>> Specification

Specification Unit TWD300B
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ450
Hole Depth m 300
Rotation Torque Nm 3500-8500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000/4500(Optional)
Max. Feed Speed M/min 2-17
Max. Lifting Speed M/min 1.5-12.4
Feed Stroke mm 450
Max. Pull back Capacity T 15
Lifting force of Winch T 1.2(Optional)
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   Yuchai
Rated Horse power Kw 90
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate)
Model   BW250/BW450
Displacement L/Min
Discharge pressure (Mpa) Mpa 2-5
Trailer
Trailer Type   4 wheels trailer,front wheels with steering
Mobility   Towed by pickup or light truck
Dimension
Net Weight T 4300
Shipping LxWXH mm 4300*1820*2150
Ground Clearance mm 320

Our Service

Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump 0

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.

>> About us

Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump 1

Multi Functional Yellow 300M Rig Water Well Drilling With Air Compressor And Mud Pump 2

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
