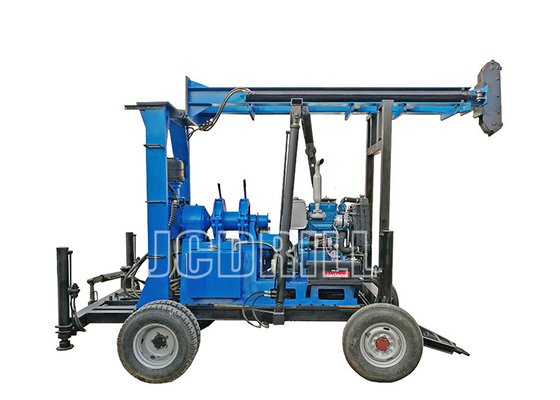

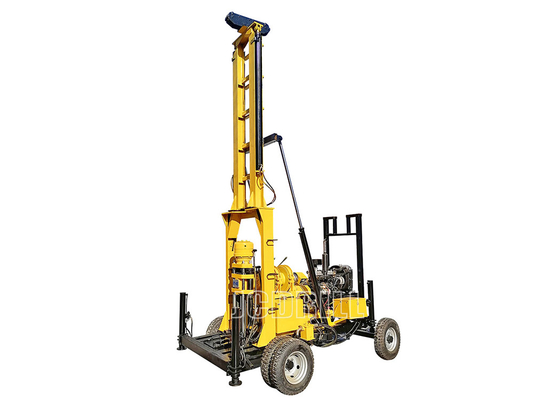

50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m

50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m
50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m
50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m 50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m 50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m

Large Image :  50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: JXY600T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD18500-25000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets per year

50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m

Description
Type: Rotary Drilling Rig After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training
Warranty: 1 Year Weight: 3000KG
Usage: Water Well Power Type: Diesel
Dimension(l*w*h): 3700×1850×3200MM Drilling Depth: 600M
Drilling Diameter: 60-600MM Product Name: 600m Borehole Drilling Machine /water Well Drilling Rig For Sale
Power(w): 55hp Color: Blue,Yellow
High Light:

50hp small water well drilling rig

,

borehole small water well drilling rig

,

600m trailer mounted drill rig



50HP diesel engine small size trailer type water Well drilling rig for 600m

>> Characteristics

The hydraulic control drill mast can be raised and put down by the hydraulic cylinders,which increases labor safety; saves time and labor usage.The drilling rig adopts automatic telescopic mast, hydraulic cylinder support, hydraulic control drilling tower up and down, the operation saves time and labor, is safe and reliable.
>> Four long hydraulic stands can lift the machine to Max. height 1.3m so that the rig can be loaded and unload from the truck.
>> 24V electric start for diesel engine permits the rig to work in all kind of extreme weather condition.
>> The hydraulic tube twist machine can be installed, which saves time and increases the working efficiency to unload the rod.

>> Falling tower for hydraulic operation, convenient and reliable
>> Diesel engine with electric start, reduce labor intensity.

>> It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.
>> High efficiency and low cost.

>> Specification

Drilling depth m 75 219 273 500 600
Drilling Dia. mm 600 210 150 80 60
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42,50,60,76
Drilling angle   65-90°
Rotary Spindle
Spindle forward speed r/min 30-1050
Spindle reverse speed r/min 29-137
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity Kg 6000
Spindle Max.Torque N/M 3800
Main Winch (Hydraulic)
Single line lifting speed m/s 0.5-1.9
Tightrope diameter mm 12.5
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure m 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure m 450
Drilling rig Power(choose one between the following two)
Diesel engine kw/hp 38/50
Electric motor KW 22kw
Trailer
Loading Capacity T 4
Walking Speed km/h 25
Mini turning radius m 6.8
Weight&Size
Weight kg 3000
Dimension mm 3700×1850×3200

50hp Small Water Well Drilling Rig Diesel Engine Trailer Type 600m 0

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.





>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
