Product Details:
|
| Type: | Hydrualic Drilling Rig | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training |
|---|---|---|---|
| Weight: | 3000KG | Dimension(l*w*h): | 3700×1850×3200MM |
| Drilling Depth: | 600M | Drilling Diameter: | 60-600MM |
| Warranty: | 12 Months | Power Type: | Diesel |
| Product Name: | Water Well Drilling Rig | Application: | Water Well Drilling Rig Mobile Drilling Rig |
| High Light: | 600m water well drilling rig,rotary spindle water well drilling rig,600m water well rotary drilling machine |
||
trailer type rotary spindle water Well drilling rig working with mud pump

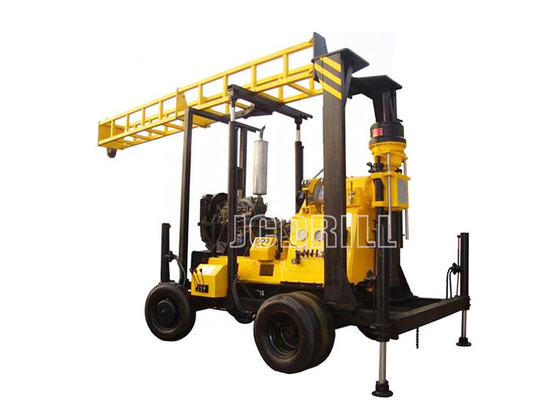

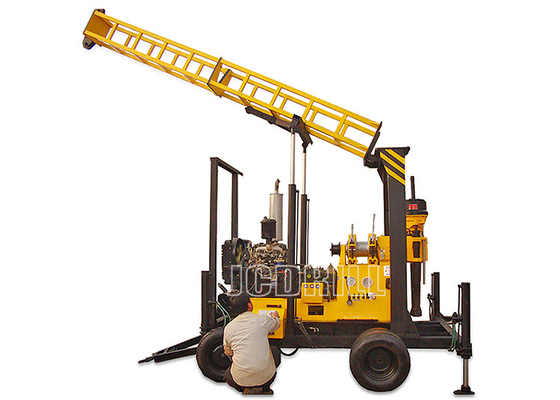

>> The JXY600T trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar,
transferring, convenient and easy to drill horizontal adjustment.
>> With hydraulic feed mechanism, improve drilling efficiency.
>> Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation,
flexible and reliable; Can realize remote speed change, more humanization operation;
>> It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.
>> The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
>> Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good
rigidity.
>> Specification
| Drilling depth | m | 75 | 219 | 273 | 500 | 600 |
| Drilling Dia. | mm | 600 | 210 | 150 | 80 | 60 |
| Open hole Dia. | mm | 600 | ||||
| End hole Dia. | mm | 75 | ||||
| Drilling rod | mm | 42,50,60,76 | ||||
| Drilling angle | 65-90° | |||||
| Rotary Spindle | ||||||
| Spindle forward speed | r/min | 30-1050 | ||||
| Spindle reverse speed | r/min | 29-137 | ||||
| Spindle stroke | mm | 560 | ||||
| Spindle inner diameter | mm | 96 | ||||
| Spindle lifting capacity | Kg | 6000 | ||||
| Spindle Max.Torque | N/M | 3800 | ||||
| Main Winch (Hydraulic) | ||||||
| Single line lifting speed | m/s | 0.5-1.9 | ||||
| Tightrope diameter | mm | 12.5 | ||||
| Hoist single line lifting capacity | Kg | 4000 | ||||
| Roller diameter | mm | 300 | ||||
| Roller cubic measure | m | 50 | ||||
| Tools Winch | ||||||
| Tightrope diameter | mm | 6 | ||||
| Roller diameter | mm | 140 | ||||
| Roller cubic measure | m | 450 | ||||
| Drilling rig Power(choose one between the following two) | ||||||
| Diesel engine | kw/hp | 38/50 | ||||
| Electric motor | KW | 22kw | ||||
| Trailer | ||||||
| Loading Capacity | T | 4 | ||||
| Walking Speed | km/h | 25 | ||||
| Mini turning radius | m | 6.8 | ||||
| Weight&Size | ||||||
| Weight | kg | 3000 | ||||
| Dimension | mm | 3700×1850×3200 |
||||
