Light Weight 400m Small Bore Well Drilling Machine Trailer Vertical Spline

small size light weight 400m trailer vertical spline water well drilling machine

>> Application

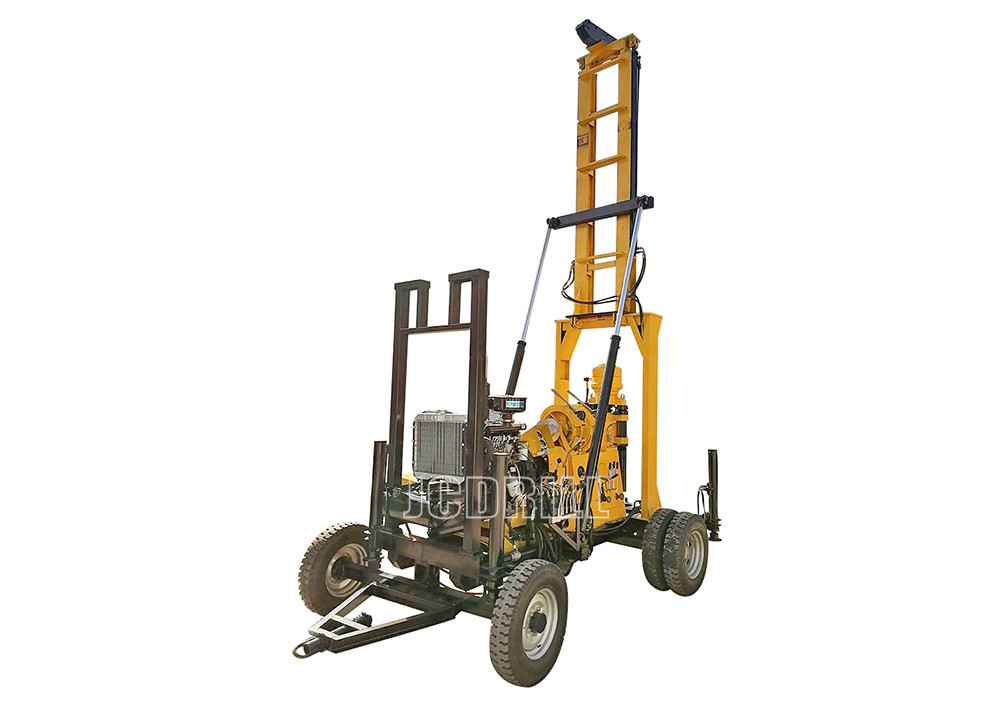

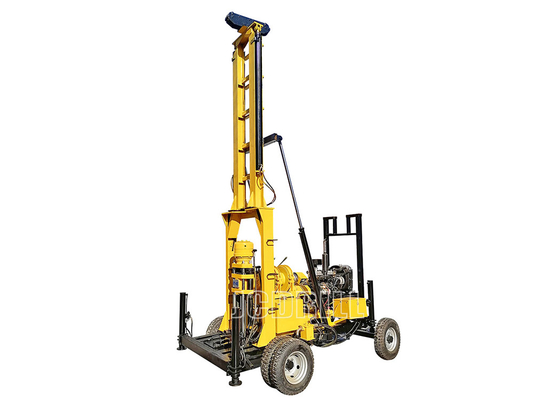

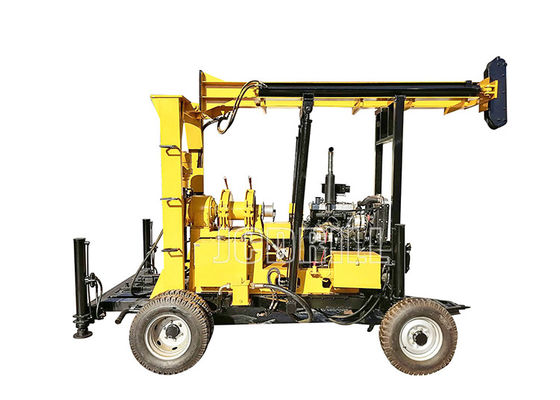

The JXY400T trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment. With hydraulic feed mechanism, improve drilling efficiency.
Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization operation;
It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.

The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

Falling tower for hydraulic operation, convenient and reliable
Diesel engine with electric start, reduce labor intensity.

It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.

Exploration for foundation engineering;
Construction;
Water well or geotechnical survey drilling for caliber within diameter 600mm;
Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;

>> Specification

Drilling depth	M	75	219	273	400	600
Drilling Dia.	mm	400	160	130	100	30
Open hole Dia.	mm	600
End hole Dia.	mm	75
Drilling rod	mm	42, 50, 60, 76
Drilling angle		0-90°
Rotary Spindle
Spindle forward speed	R/min	50-1150
Spindle reverse speed	R/min	29-137
Spindle stroke	mm	600
Spindle inner diameter	mm	62
Spindle lifting capacity	Kg	6000
Spindle Max. Torque	N/M	2800
Main Winch (Hydraulic)
Single line lifting speed	M/s	0.5-1.9
Tightrope diameter	mm	14
Hoist single line lifting capacity	Kg	4000
Roller diameter	mm	300
Roller cubic measure	M	50
Tools Winch
Tightrope diameter	mm	6
Roller diameter	mm	140
Roller cubic measure	M	450
Drilling rig Power(choose one between the following two)
Diesel engine	Kw/HP	17.6/24
Electric motor	KW	Y160L, 18.5kw
Trailer
Loading Capacity	T	8.5
Weight&Size
Weight	Kg	3000
Dimension	mm	3980×1950×2750
