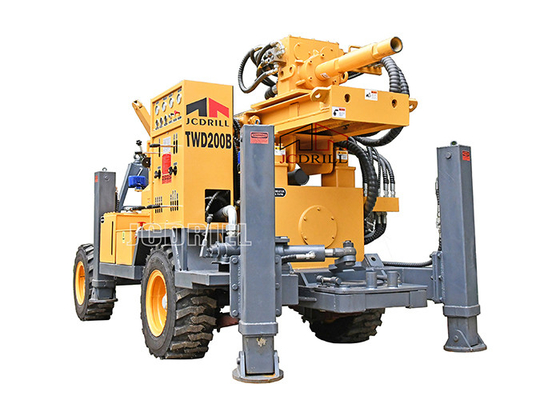

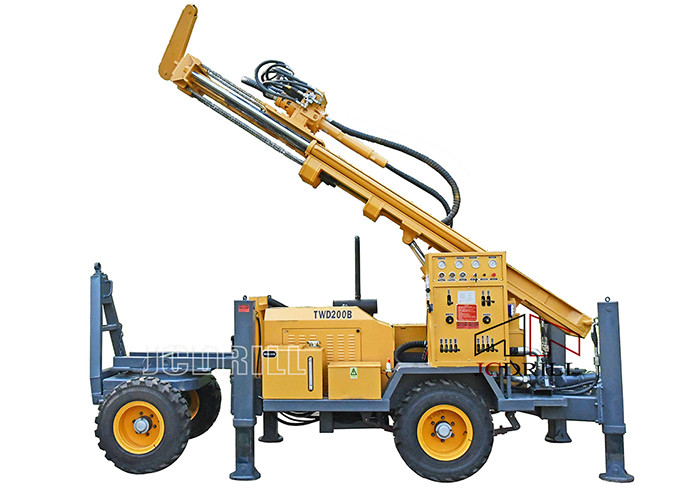

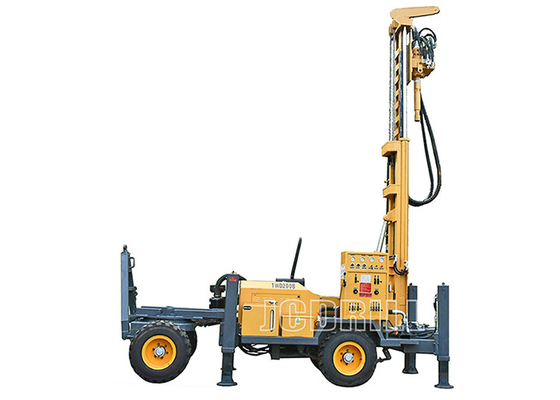

300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock

300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock
300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock
300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock 300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock 300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock 300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock

Large Image :  300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD300B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

300meter Deep Dth Water Well Drilling Rigs Diesel Engine Hard Rock

Description
Model Number: TWD300B Diesel Water Well Drilling Rig Drilling Depth: 300m
Drilling Diameter: 405mm Drill Pipe Length: 3000mm 4500mm
Usage: Drilling Water Well Drilling Methold: DTH Drilling MUD Drilling
Engine Power: 85KW Or Others Mud Pump: BW450
Warranty: 1year
High Light:

300meter dth water well drilling rigs

,

diesel dth water well drilling rigs

,

300meter deep dth borewell machine

Deep diesel engine DTH hard rock water well drilling machine







>> Introduction

TWD Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

>> TWD series trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

>> TWD series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.


>> Characteristic


85KW,4Cylinder,water cooling Diesel Engine



Famous Brand Hydraulic System

Big Torque

&

Fast Rotation Speed

gear box.jpg
c.jpg >> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a diesel engine,High power diesel engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 0-80 and115rpm stepless adjustment and the drilling rigs with high rotary torque.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>> Specification


Specification Unit TWD300B
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ450
Hole Depth m 300
Rotation Torque Nm 3500-8500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000/4500(Optional)
Max. Feed Speed M/min 2-17
Max. Lifting Speed M/min 1.5-12.4
Feed Stroke mm 450
Max. Pull back Capacity T 15
Lifting force of Winch T 1.2(Optional)
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   Yuchai
Rated Horse power Kw 90
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate)
Model   BW250/BW450
Displacement L/Min
Discharge pressure (Mpa) Mpa 2-5
Trailer
Trailer Type   4 wheels trailer,front wheels with steering
Mobility   Towed by pickup or light truck
Dimension
Net Weight T 4300
Shipping LxWXH mm 4300*1820*2150
Ground Clearance mm 320
