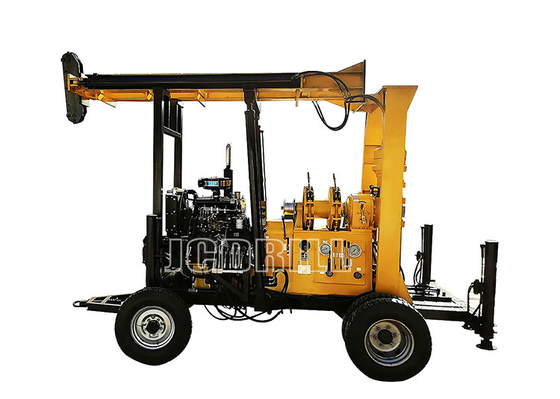

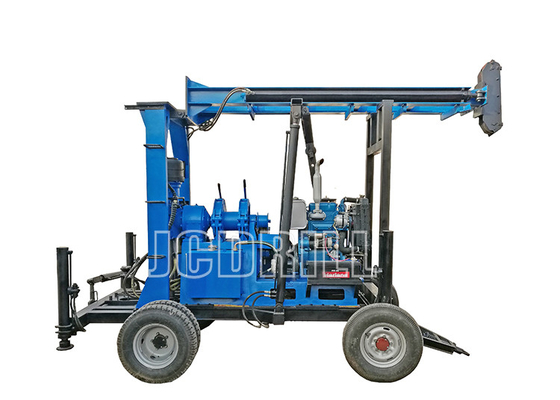

24hp Diesel Engine 400m Mud Pump Drilling Rig

24hp Diesel Engine 400m Mud Pump Drilling Rig
24hp Diesel Engine 400m Mud Pump Drilling Rig
24hp Diesel Engine 400m Mud Pump Drilling Rig 24hp Diesel Engine 400m Mud Pump Drilling Rig 24hp Diesel Engine 400m Mud Pump Drilling Rig

Large Image :  24hp Diesel Engine 400m Mud Pump Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: JXY400T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD15000-18000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets per year

24hp Diesel Engine 400m Mud Pump Drilling Rig

Description
Condition: New Product Name: 400M Water Well Drilling Rig
Drilling Depth: 400M Drilling Diameter: 30-400mm
Color: Yellow,bule Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Power Type: Diesel Weight: 3000KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training Warranty: 12 Months
High Light:

24hp mud pump drilling rig

,

diesel engine mud pump drilling rig

,

400m mud pump drilling rig

24hp diesel engine 400m mud pump drilling water well drilling machine

>> About us
1. Power Supply
It can be driven by either electric motor or diesel engine.
2. Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
3. Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
4. Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
5. Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
6. Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.

>> Specification
Drilling depth M 75 219 273 400 600
Drilling Dia. mm 400 160 130 100 30
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42, 50, 60, 76
Drilling angle   0-90°
Rotary Spindle
Spindle forward speed R/min 50-1150
Spindle reverse speed R/min 29-137
Spindle stroke mm 600
Spindle inner diameter mm 62
Spindle lifting capacity Kg 6000
Spindle Max. Torque N/M 2800
Main Winch (Hydraulic)
Single line lifting speed M/s 0.5-1.9
Tightrope diameter mm 14
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure M 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure M 450
Drilling rig Power(choose one between the following two)
Diesel engine Kw/HP 17.6/24
Electric motor KW Y160L, 18.5kw
Trailer
Loading Capacity T 8.5
Weight&Size
Weight Kg 3000
Dimension mm 3980×1950×2750

>> Package & Shipment

24hp Diesel Engine 400m Mud Pump Drilling Rig 0

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
