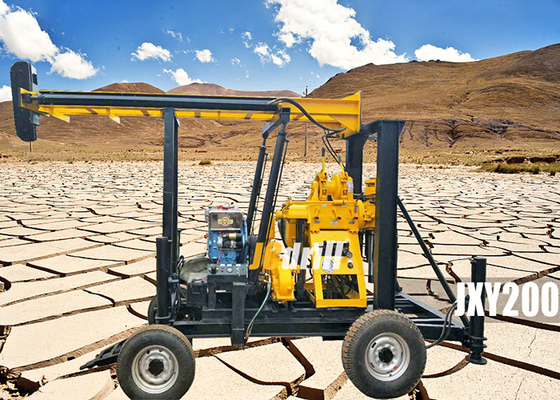

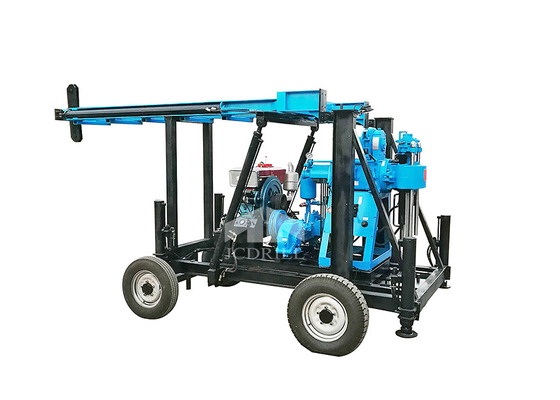

Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump

Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump

Brand Name:	JCDRILL
Model Number:	JXY200T
MOQ:	1 set
Price:	USD9990-12000
Payment Terms:	L/C, T/T
Supply Ability:	2000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2008

Type:

Hydrualic Rotary Drilling Rig

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training

Warranty:

One Year

Weight:

2400kg

Power Type:

Diesel

Dimension(l*w*h):

2750*950*1600mm

Product Name:

200m Borehole Drilling Machine /water Well Drilling Rig For Sale

Usage:

Water Well

Power(w):

22HP

Application:

Drilling Well

Packaging Details:

drilling rig in nude package,spare parts in standard export wooden box

Supply Ability:

2000 sets per year

Highlight:

200m water well drilling rig

light weight water well drilling rig

200m mud pump drilling rig

Product Description

Light weight 200m four wheels type mud pump drilling water well drilling machine

>> Specification

1.Overall parameters
Drilling depth	200m
Maximum open hole caliber	400mm
End hole caliber	75mm
Diameter of drill rod	50mm
Drilling angle	90~75
Weight(not include power)	760kg
Dimension	27509501600mm
2. Vertical shaft
Rotating speed	71,142, ,310,,620r/min
Feeding stroke	450mm
3.Hoist
Maximum. single line hoisting capacity	2400Kg
Diameter of wire rope	13mm
Volume of winding drum	35m
Hug floodgate caliber	230mm
Hug floodgate belt width	70mm
4.Mud pump
Type	Horizontal single urn twin-action
Rate of flow	180L/min
Maximum. pressure	1.5MPa
Working pressure	0.7MPa
Diameter of water inlet tube	50mm
Diameter of water outlet tube	45mm
5.Power
Diesel engine	22HP, 2200r/min
Electrical motor	15KW, 1460r/min

>> Our Service

Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump 0

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.

>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.

>> Package & Shipment

Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump 1
