22hp Diesel Engine 200m Hydraulic Well Drilling Rig Blue Colour

Brand Name:	JCDRILL
Model Number:	JXY200T
MOQ:	1 set
Price:	USD9990-12000
Payment Terms:	L/C, T/T
Supply Ability:	2000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2008

Condition:

New

Product Name:

200M Water Well Drilling Rig

Drilling Depth:

200M

Drilling Diameter:

75-500mm

Color:

Yellow

Application:

Water Well Drilling Rig Mobile Drilling Rig,drilling Well

Power Type:

Diesel

Weight:

2400KG

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training

Warranty:

12 Months

Packaging Details:

drilling rig in nude package,spare parts in standard export wooden box

Supply Ability:

2000 sets per year

Highlight:

22hp hydraulic well drilling rig

200m hydraulic well drilling rig

diesel engine hydraulic water drilling machine

Product Description

22hp diesel engine 200m yellow colour hydraulic drilling water well drilling machine

>> Specification

1.Overall parameters
Drilling depth	200m
Maximum open hole caliber	400mm
End hole caliber	75mm
Diameter of drill rod	50mm
Drilling angle	90~75
Weight(not include power)	760kg
Dimension	27509501600mm
2. Vertical shaft
Rotating speed	71,142, ,310,,620r/min
Feeding stroke	450mm
3.Hoist
Maximum. single line hoisting capacity	2400Kg
Diameter of wire rope	13mm
Volume of winding drum	35m
Hug floodgate caliber	230mm
Hug floodgate belt width	70mm
4.Mud pump
Type	Horizontal single urn twin-action
Rate of flow	180L/min
Maximum. pressure	1.5MPa
Working pressure	0.7MPa
Diameter of water inlet tube	50mm
Diameter of water outlet tube	45mm
5.Power
Diesel engine	22HP, 2200r/min
Electrical motor	15KW, 1460r/min

>> Characteristics

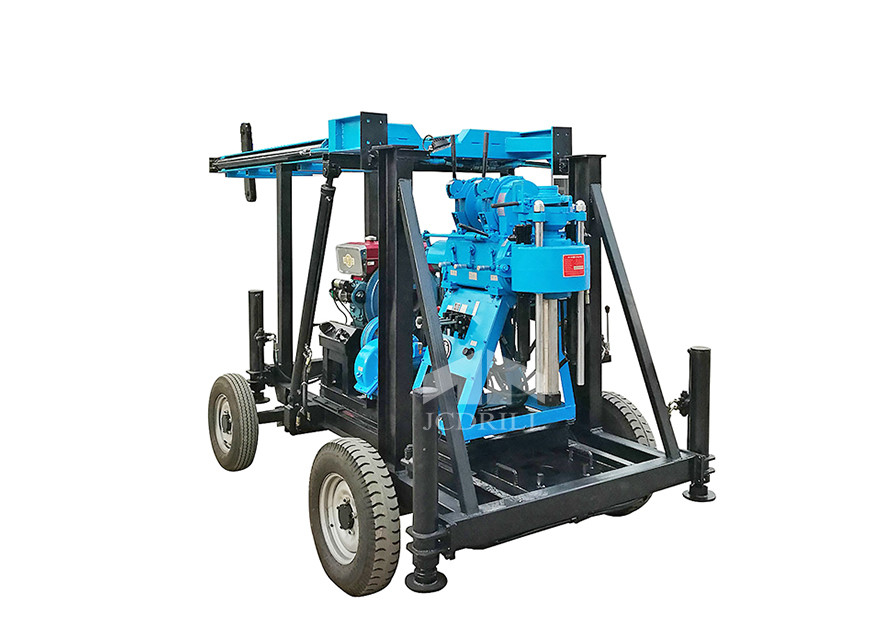

22hp Diesel Engine 200m Hydraulic Well Drilling Rig Blue Colour 0

22hp Diesel Engine 200m Hydraulic Well Drilling Rig Blue Colour 1

22hp Diesel Engine 200m Hydraulic Well Drilling Rig Blue Colour 2

>> FAQ

Q: Are you original manufacturer?	Q: Which payment terms are available to us?	Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.	A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.	A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?	Q: How about after sales service?	Q:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.	A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."	A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
