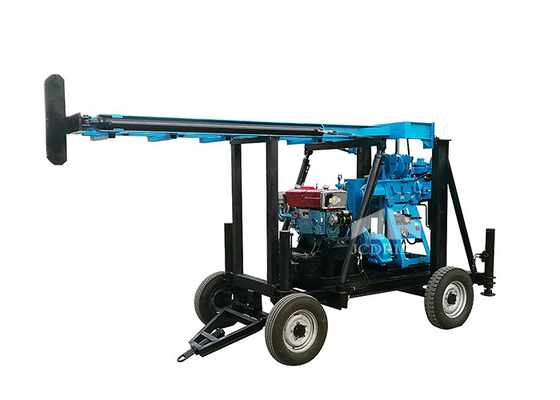

200m Hydraulic Water Drilling Machine Small Size Trailer Mounted

200m Hydraulic Water Drilling Machine Small Size Trailer Mounted

Brand Name:	JCDRILL
Model Number:	JXY200T
MOQ:	1 set
Price:	USD9990-12000
Payment Terms:	L/C, T/T
Supply Ability:	2000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2008

Type:

Rotary Drilling Rig

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training

Warranty:

1 Year

Weight:

2400KG

Usage:

Water Well

Power Type:

Diesel

Dimension(l*w*h):

2750*950*1600mm

Product Name:

Water Well Drilling Rig

Drilling Depth:

200m

Drilling Diameter:

75-400MM

Packaging Details:

drilling rig in nude package,spare parts in standard export wooden box

Supply Ability:

2000 sets per year

Highlight:

hydraulic water drilling machine 200m

water well drilling rig 200m

trailer mounted hydraulic water drilling machine

Product Description

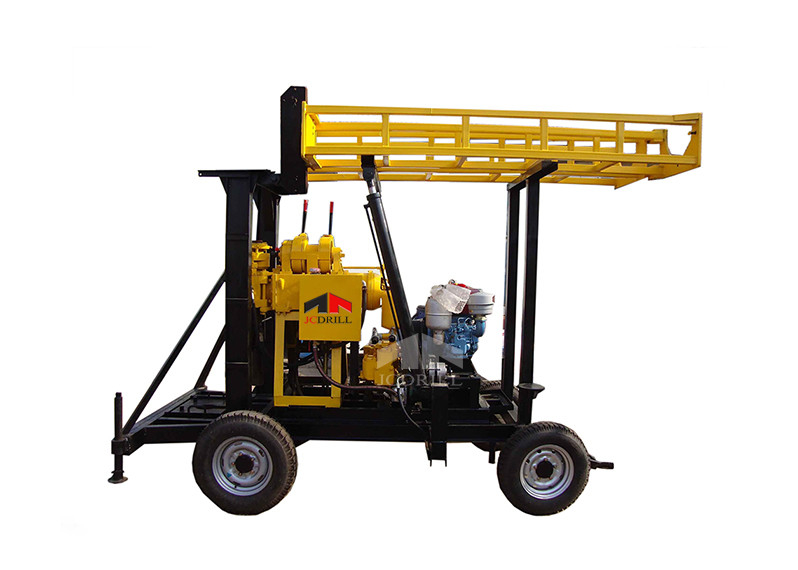

200m small size trailer mounted hydraulic water well drilling machine

JXY200 Hydraulic drilling rig machine adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

>> Characteristics

1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
Power Supply
It can be driven by either electric motor or diesel engine.

Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.

Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.

Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.

Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.

Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.

>> Specification

1.Overall parameters
Drilling depth	200m
Maximum open hole caliber	400mm
End hole caliber	75mm
Diameter of drill rod	50mm
Drilling angle	90~75
Weight(not include power)	760kg
Dimension	27509501600mm
2. Vertical shaft
Rotating speed	71,142, ,310,,620r/min
Feeding stroke	450mm
3.Hoist
Maximum. single line hoisting capacity	2400Kg
Diameter of wire rope	13mm
Volume of winding drum	35m
Hug floodgate caliber	230mm
Hug floodgate belt width	70mm
4.Mud pump
Type	Horizontal single urn twin-action
Rate of flow	180L/min
Maximum. pressure	1.5MPa
Working pressure	0.7MPa
Diameter of water inlet tube	50mm
Diameter of water outlet tube	45mm
5.Power
Diesel engine	22HP, 2200r/min
Electrical motor	15KW, 1460r/min

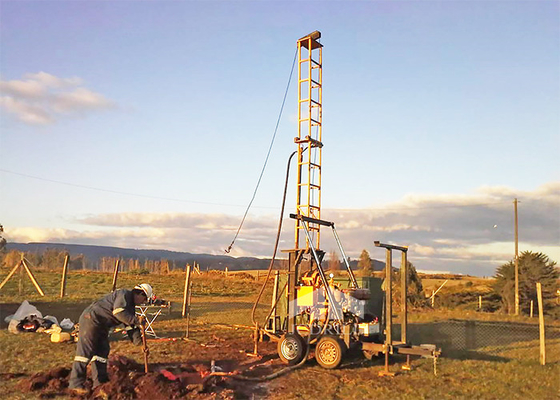

>> Overseas Service&Project

200m Hydraulic Water Drilling Machine Small Size Trailer Mounted 1
