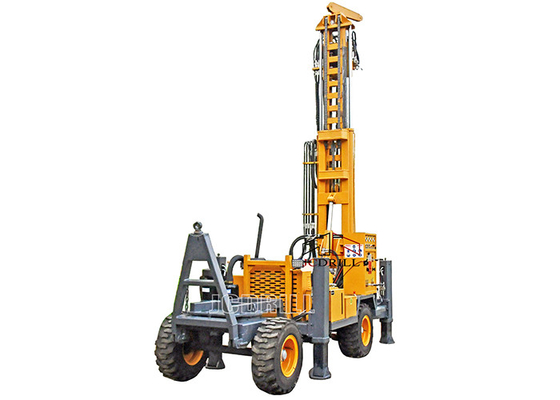

4 Cylinder Water Well Drilling Rig Quanchai Diesel Engine 180m

4 Cylinder Water Well Drilling Rig Quanchai Diesel Engine 180m

Brand Name:	JCDRILL
Model Number:	TWD180
MOQ:	1 set
Price:	USD15500-17000
Payment Terms:	T/T
Supply Ability:	2000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2008

Type:

Hydraulic Drilling Machine

Warranty:

One Year

Weight:

3750kg

Dimension(l*w*h):

4000*1820*2150mm

Condition:

New

Product Name:

Water Well Drilling Rig

Drilling Diameter:

90-305mm

Color:

Yellow

Engine:

Quanchai Diesel Engine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training

Packaging Details:

drilling rig in nude package,spare parts in standard export wooden box

Supply Ability:

2000 sets per year

Highlight:

4 cylinder water well drilling rig

quanchai engine water well drilling rig

water drilling machine 180m

Product Description

4 cylinder quanchai diesel engine 180m drilling water well drilling machine

>> Specification

Specification	Unit	TWD180	TWD200
Geology drilled		All Kind	All Kind
Drilling Type		DTH&MUD	DTH&MUD
Drill system and operation		Hydraulic	Hydraulic
Hole Diameter	mm	Φ90—Φ305	Φ90—Φ355
Hole Depth	m	180	200
Rotation Torque	Nm	4200-5600	4200-5600
Rotatin Speed	rpm	45-115	0-115
Drill pipe diameter	mm	76/89/102	76/89/102
Drill pipe length	mm	3000	3000
Max.Feed Speed	M/min	2-17	2-17
Max.lifting Speed	M/min	1.5-12.4	1.5-12.4
Feed Stroke	mm	350	350
Max.Pull back Capacity	T	12	14
lifting force of Winch	T	1.2(Optional)	1.5
Engine
Diesel Engine type		4Cylinder,water cooling	4Cylinder,water cooling
Diesel Engine Brand		Quanchai	Yuchai
Rated Horse power	Kw	55	77
Compressor required (Optional)
Pressure Required	Mpa	15-30	15-30
Air consumption	m³/min	1.5-2.5	1.5-2.5
Mud Pump(Optional/Separate)
Model		BW250	BW250/BW450
Displacement	L/Min		250/450
Discharge pressure(Mpa)	Mpa	2.5-7	2.5-7/2-5
Trailer
Trailer Type	4 wheels trailer,front wheels with steering
Mobility		Towed by pickup or light truck
Dimension
Net Weight	T	3750	4100
Shipping LXWXH	mm	400018202150	415018502160
Ground Clearance	mm	300	305

>> Package & Delivery

4 Cylinder Water Well Drilling Rig Quanchai Diesel Engine 180m 0

Our Service

4 Cylinder Water Well Drilling Rig Quanchai Diesel Engine 180m 1

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.

>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.

>> Overseas Service&Project

4 Cylinder Water Well Drilling Rig Quanchai Diesel Engine 180m 2
