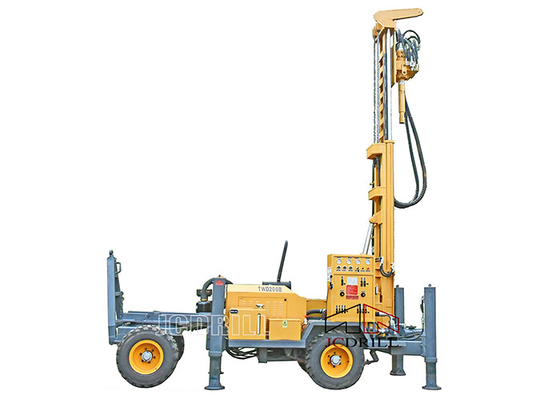

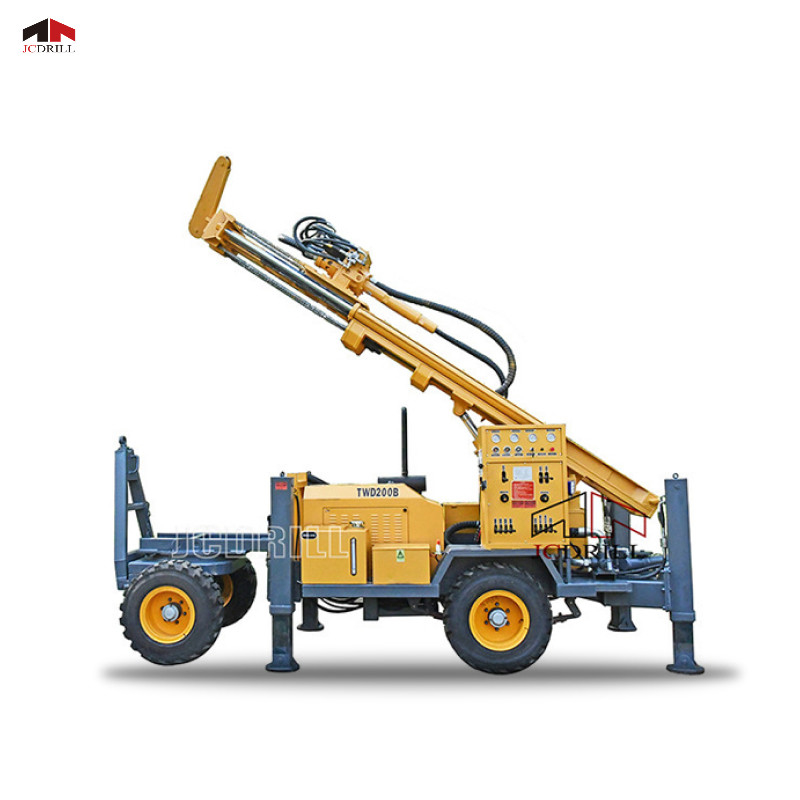

4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted

4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted
4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted 4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted

Large Image :  4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: TWD180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD15500-17000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets per year

4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted

Description
Type: Rotary Drilling Rig Weight: 3750KG
Condition: New Product Name: 180m Borehole Drilling Machine /water Well Drilling Rig For Sale
Drilling Depth: 180M Drilling Diameter: 90-305MM
Dimension(l*w*h): 4000*1820*2150MM Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas,commissioning And Training Usage: Water Well
High Light:

180m portable hydraulic water well drilling rig

,

4 wheels portable hydraulic drilling machine

,

trailer portable hydraulic water well drilling rig



4 wheels 180m trailer mounted hydraulic water well drilling machine



>> Specification

Specification Unit TWD180 TWD200
Geology drilled   All Kind All Kind
Drilling Type   DTH&MUD DTH&MUD
Drill system and operation   Hydraulic Hydraulic
Hole Diameter mm Φ90—Φ305 Φ90—Φ355
Hole Depth m 180 200
Rotation Torque Nm 4200-5600 4200-5600
Rotatin Speed rpm 45-115 0-115
Drill pipe diameter mm 76/89/102 76/89/102
Drill pipe length mm 3000 3000
Max.Feed Speed M/min 2-17 2-17
Max.lifting Speed M/min 1.5-12.4 1.5-12.4
Feed Stroke mm 350 350
Max.Pull back Capacity T 12 14
lifting force of Winch T 1.2(Optional) 1.5
Engine
Diesel Engine type   4Cylinder,water cooling 4Cylinder,water cooling
Diesel Engine Brand   Quanchai Yuchai
Rated Horse power Kw 55 77
Compressor required (Optional)
Pressure Required Mpa 15-30 15-30
Air consumption m³/min 1.5-2.5 1.5-2.5
Mud Pump(Optional/Separate)
Model   BW250 BW250/BW450
Displacement L/Min   250/450
Discharge pressure(Mpa) Mpa 2.5-7 2.5-7/2-5
Trailer
Trailer Type 4 wheels trailer,front wheels with steering
Mobility   Towed by pickup or light truck
Dimension
Net Weight T 3750 4100
Shipping LXWXH mm 4000*1820*2150 4150*1850*2160
Ground Clearance mm 300 305

>> Characteristic

4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted 0

55KW,4Cylinder,water cooling Diesel Engine



Famous Brand Hydraulic System

Big Torque

&

Fast Rotation Speed

4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted 1



4 Wheels 180m Portable Hydraulic Water Well Drilling Rig Trailer Mounted 2

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
