Product Details:
|
Model Number: | JXY600T | Drilling Depth: | 0-600m |
---|---|---|---|
Drilling Diameter: | 75-600mm | Drill Pipe Length: | 4.2m |
Usage: | Water Well Drilling | Drilling Methold: | DTH Drilling & Mud Drilling |
Rotation Speed: | 0-100rpm | Drill Pipe: | 50/60mm |
Mud Pump: | BW450 | Warranty: | 1year |
Highlight: | 100rpm rotary water well drilling rig,100rpm portable hydraulic drilling machine,mud rotary water well drilling rig |
Hydraulic Mud Rotary Water Well Drilling Rig Rock Drilling Rig

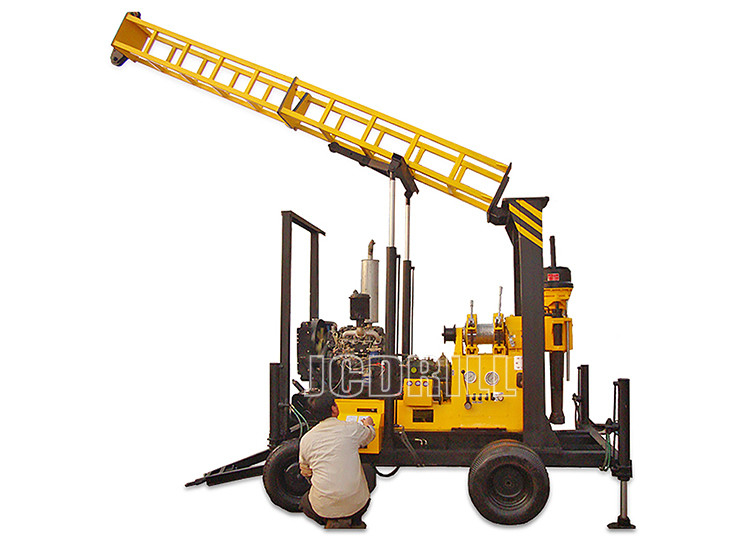

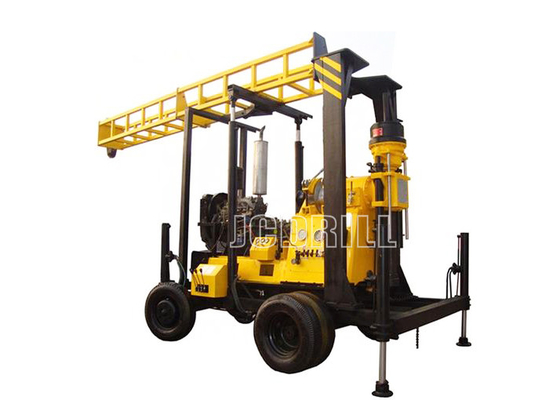

>> The JXY600T trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment. >> It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole. >> The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range. >> Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity. |
![]() |
>> Characteristics
The hydraulic control drill mast can be raised and put down by the hydraulic cylinders,which increases labor safety; saves time and labor usage.The drilling rig adopts automatic telescopic mast, hydraulic cylinder support, hydraulic control drilling tower up and down, the operation saves time and labor, is safe and reliable.
>> Four long hydraulic stands can lift the machine to Max. height 1.3m so that the rig can be loaded and unload from the truck.
>> 24V electric start for diesel engine permits the rig to work in all kind of extreme weather condition.
>> The hydraulic tube twist machine can be installed, which saves time and increases the working efficiency to unload the rod.
>> Falling tower for hydraulic operation, convenient and reliable
>> Diesel engine with electric start, reduce labor intensity.
>> It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.
>> High efficiency and low cost.
>> Specification
Drilling depth | m | 75 | 219 | 273 | 500 | 600 |
Drilling Dia. | mm | 600 | 210 | 150 | 80 | 60 |
Open hole Dia. | mm | 600 | ||||
End hole Dia. | mm | 75 | ||||
Drilling rod | mm | 42,50,60,76 | ||||
Drilling angle | 65-90° | |||||
Rotary Spindle | ||||||
Spindle forward speed | r/min | 30-1050 | ||||
Spindle reverse speed | r/min | 29-137 | ||||
Spindle stroke | mm | 560 | ||||
Spindle inner diameter | mm | 96 | ||||
Spindle lifting capacity | Kg | 6000 | ||||
Spindle Max.Torque | N/M | 3800 | ||||
Main Winch (Hydraulic) | ||||||
Single line lifting speed | m/s | 0.5-1.9 | ||||
Tightrope diameter | mm | 12.5 | ||||
Hoist single line lifting capacity | Kg | 4000 | ||||
Roller diameter | mm | 300 | ||||
Roller cubic measure | m | 50 | ||||
Tools Winch | ||||||
Tightrope diameter | mm | 6 | ||||
Roller diameter | mm | 140 | ||||
Roller cubic measure | m | 450 | ||||
Drilling rig Power(choose one between the following two) | ||||||
Diesel engine | kw/hp | 38/50 | ||||
Electric motor | KW | 22kw | ||||
Trailer | ||||||
Loading Capacity | T | 4 | ||||
Walking Speed | km/h | 25 | ||||
Mini turning radius | m | 6.8 | ||||
Weight&Size | ||||||
Weight | kg | 3000 | ||||
Dimension | mm | 3700×1850×3200 |
>> Overseas Service&Project
>> FAQ
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." |
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
|
