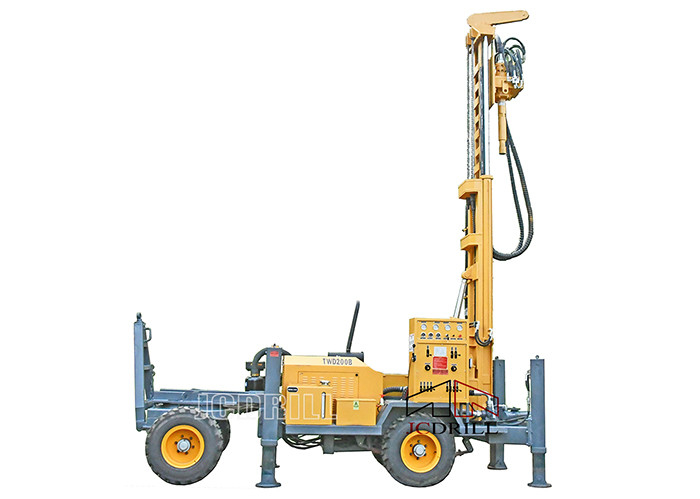

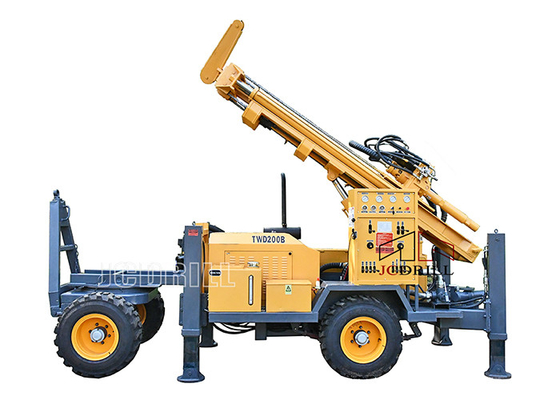

Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine

Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine
Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine
Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine

Large Image :  Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: TWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD18500-22000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 2000 sets per year

Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine

Description
Type: Hydraulic Drilling Machine Warranty: One Year
Weight: 4100kg Dimension(l*w*h): 4150*1850*2160mm
Condition: New Product Name: Water Well Drilling Rig
Drilling Diameter: 90-355mm Color: Yellow
Engine: Yuchai Diesel Engine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training
High Light:

diesel dth water well drilling rig

,

4 cylinder water well drilling rig

,

mud trailer mounted drill rig

4 cylinder diesel engine DTH&MUD drilling water well drilling machine



>> Specification

Specification Unit TWD180 TWD200
Geology drilled   All Kind All Kind
Drilling Type   DTH&MUD DTH&MUD
Drill system and operation   Hydraulic Hydraulic
Hole Diameter mm Φ90—Φ305 Φ90—Φ355
Hole Depth m 180 200
Rotation Torque Nm 4200-5600 4200-5600
Rotatin Speed rpm 45-115 0-115
Drill pipe diameter mm 76/89/102 76/89/102
Drill pipe length mm 3000 3000
Max.Feed Speed M/min 2-17 2-17
Max.lifting Speed M/min 1.5-12.4 1.5-12.4
Feed Stroke mm 350 350
Max.Pull back Capacity T 12 14
lifting force of Winch T 1.2(Optional) 1.5
Engine
Diesel Engine type   4Cylinder,water cooling 4Cylinder,water cooling
Diesel Engine Brand   Quanchai Yuchai
Rated Horse power Kw 55 77
Compressor required (Optional)
Pressure Required Mpa 15-30 15-30
Air consumption m³/min 1.5-2.5 1.5-2.5
Mud Pump(Optional/Separate)
Model   BW250 BW250/BW450
Displacement L/Min   250/450
Discharge pressure(Mpa) Mpa 2.5-7 2.5-7/2-5
Trailer
Trailer Type 4 wheels trailer,front wheels with steering
Mobility   Towed by pickup or light truck
Dimension
Net Weight T 3750 4100
Shipping LXWXH mm 4000*1820*2150 4150*1850*2160
Ground Clearance mm 300 305

>> Package & Delivery

Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine 0

Our Service

Dth Mud Water Well Drilling Rig 4 Cylinder Diesel Engine 1

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
