130m water well drilling rigs,
multifunctional water well drilling rigs,
borewell water well drilling rigs

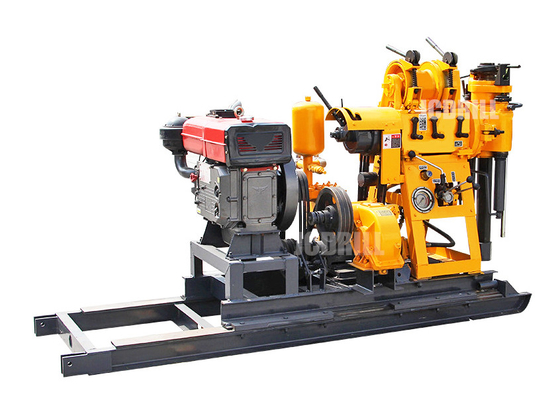

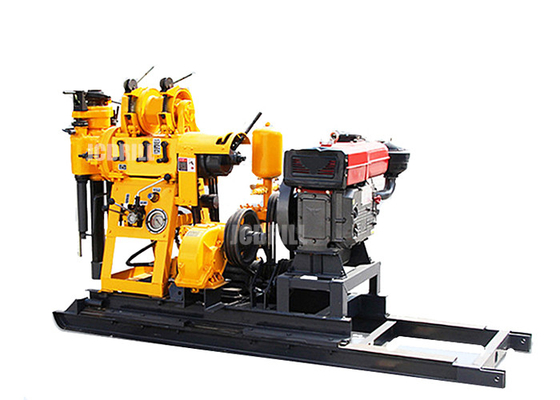

Borewell water drilling rig multifunctional drilling rig for water and core sample rock drilling rig

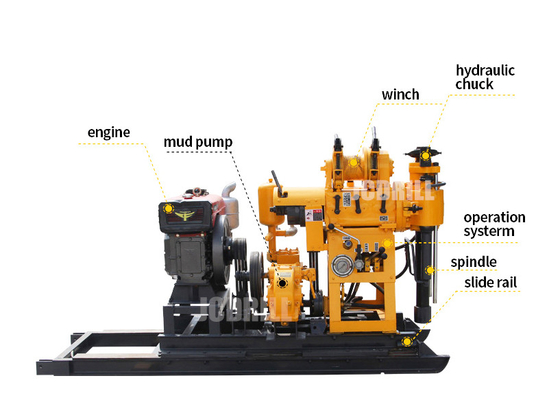

JXY130 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.
Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.
Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.
The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.
|Max.Hole dia soil/rock(mm)||500, 220||500, 220||500, 273|
|End Hole Diameter(mm)||75||75||75|
|Drill Rod diameter(mm)||42, 60||42, 60||42, 50, 60|
|Weight without engine(kg)||600/740||620/750||880/970|
|Single rope lift force(kg)||1800||2100||2500|
|Single rope lift speed(m/s)||0.41-1.64||0.35-2.23||0.12-0.95|
|Rated load (Kgs)||2000||2000||5000|
|Back and forth times/min||93||93||93|
|Inlet hose dia.(mm)||51||51||51|
|Outlet hose dia.(mm)||32||32||32|
