Borehole Diesel 400mm Hydraulic Water Well Drilling Rig

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig
Borehole Diesel 400mm Hydraulic Water Well Drilling Rig Borehole Diesel 400mm Hydraulic Water Well Drilling Rig Borehole Diesel 400mm Hydraulic Water Well Drilling Rig Borehole Diesel 400mm Hydraulic Water Well Drilling Rig

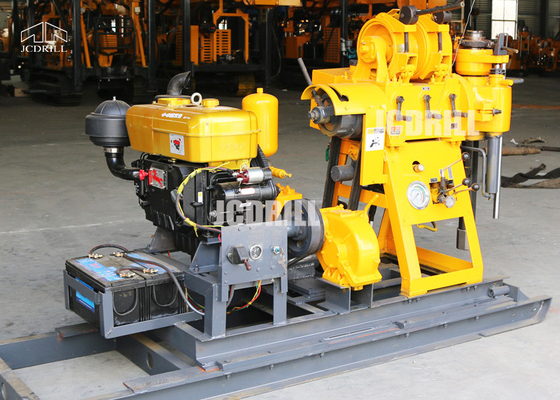

Large Image :  Borehole Diesel 400mm Hydraulic Water Well Drilling Rig

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: JXY130
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Nude
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig

Description
Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 2000kg
Warranty: 1year Hole Depth: 130m
Usage: Water Well Dimension(L*W*H): 2400*800*1300mm
Hole Diameter: 75-400mm
High Light:

bore hydraulic water well drilling rig

,

400mm hydraulic water well drilling rig

,

400mm borehole drilling machine

Cheap price borehole water well drilling rig diesel water well drilling rig for sales



>> Introduction

JXY130 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig 0

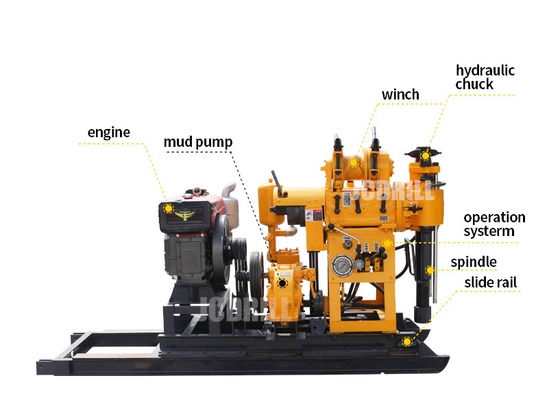

>> Characteristic

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig 1

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig 2

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig 3

Borehole Diesel 400mm Hydraulic Water Well Drilling Rig 4

>> Specification

Item. JXY130 JXY180 JXY200
Drilling depth(m) 130m 180m 200m
Max.Hole dia soil/rock(mm) 500, 220 500, 220 500, 273
End Hole Diameter(mm) 75 75 75
Drill Rod diameter(mm) 42, 60 42, 60 42, 50, 60
Drill Angle 90-75 90-75 90-75
Weight without engine(kg) 600/740 620/750 880/970
Machine Dimension(m) 2.4*0.8*1.3 2.4*0.8*1.4 2.7*0.9*1.5
Power
Engine power(KW) 13.2 13.2 15
Spindle
Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Stroke(mm) 450 450 450
Hoist
Single rope lift force(kg) 1800 2100 2500
Single rope lift speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope diameter(mm) 9.3 9.3 12.5
Rope capacity(m) 27 27 35
Drill Mast
Rated load (Kgs) 2000 2000 5000
Effective height(m) 6 6 6
Mud Pump
Flow(L/MIN) 95 95 145
Max. pressure(Mpa) 1.2 1.2 2
Back and forth times/min 93 93 93
Inlet hose dia.(mm) 51 51 51
Outlet hose dia.(mm) 32 32 32
