Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine
Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine

Large Image :  Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: JXY180
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Nude
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine

Description
Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 2000kg
Warranty: 1year Hole Depth: 180m
Usage: Water Well Dimension(L*W*H): 2400*800*1400mm
Hole Diameter: 75-400mm
High Light:

180m borehole drilling equipment

,

mud pump borehole drilling equipment

,

diesel engine borehole drilling equipment

Air borehole drilling machine mud pump drilling machine diesel engine drilling mahine for water well



>> Introduction

JXY180 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

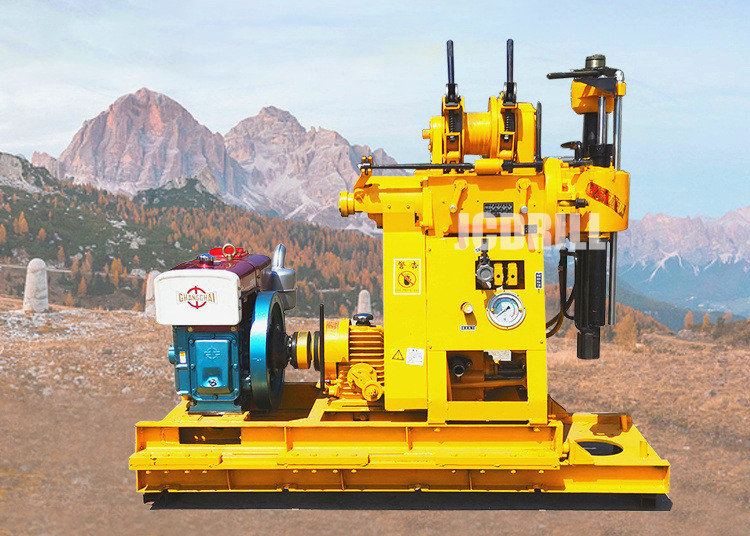

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 0

>> Characteristic

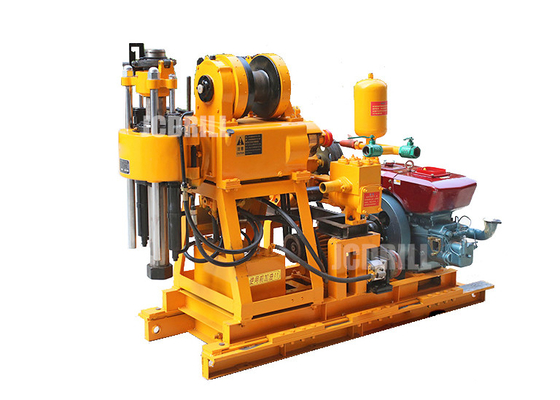

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 1

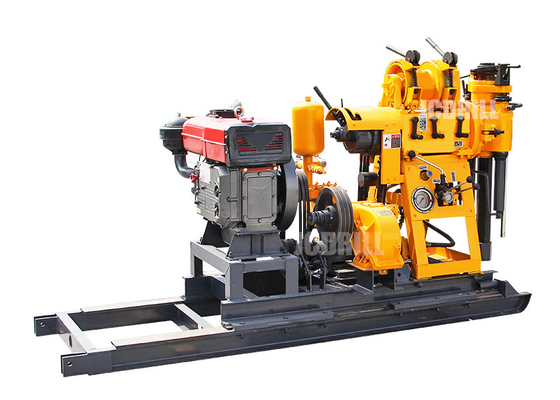

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 2

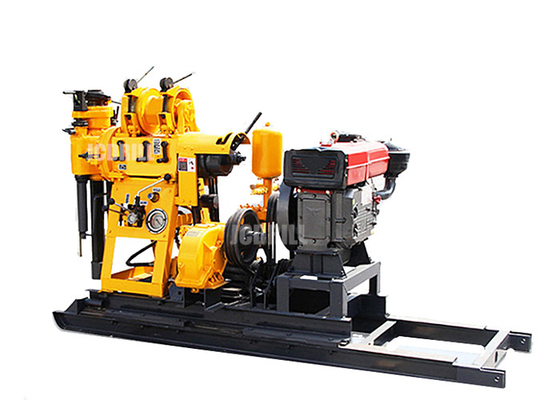

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 3

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 4

>> Specification

Item. JXY130 JXY180 JXY200
Drilling depth(m) 130m 180m 200m
Max.Hole dia soil/rock(mm) 500, 220 500, 220 500, 273
End Hole Diameter(mm) 75 75 75
Drill Rod diameter(mm) 42, 60 42, 60 42, 50, 60
Drill Angle 90-75 90-75 90-75
Weight without engine(kg) 600/740 620/750 880/970
Machine Dimension(m) 2.4*0.8*1.3 2.4*0.8*1.4 2.7*0.9*1.5
Power
Engine power(KW) 13.2 13.2 15
Spindle
Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Stroke(mm) 450 450 450
Hoist
Single rope lift force(kg) 1800 2100 2500
Single rope lift speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope diameter(mm) 9.3 9.3 12.5
Rope capacity(m) 27 27 35
Drill Mast
Rated load (Kgs) 2000 2000 5000
Effective height(m) 6 6 6
Mud Pump
Flow(L/MIN) 95 95 145
Max. pressure(Mpa) 1.2 1.2 2
Back and forth times/min 93 93 93
Inlet hose dia.(mm) 51 51 51
Outlet hose dia.(mm) 32 32 32

>> Package & Shipment

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 5

>> Overseas Service&Project

Air 180m Borehole Drilling Equipment Mud Pump Diesel Engine 6



>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
