Product Details:
|
| Brand: | JCDRILL | Condition: | New |
|---|---|---|---|
| Power Type: | Diesel | Weight: | 2000kg |
| Warranty: | 1year | Hole Depth: | 180m |
| Usage: | Water Well | Dimension(L*W*H): | 2400*800*1400mm |
| Hole Diameter: | 75-400mm | ||
| Highlight: | borehole portable water well drilling rig,portable water well drilling rig 180m,rock portable hydraulic drilling machine |
||
Cheap price spline vertical water well drilling rig hydraulic water well drilling rig borehole water well drilling rig
>> Introduction
JXY180 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.
It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.
Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.
Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.
The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

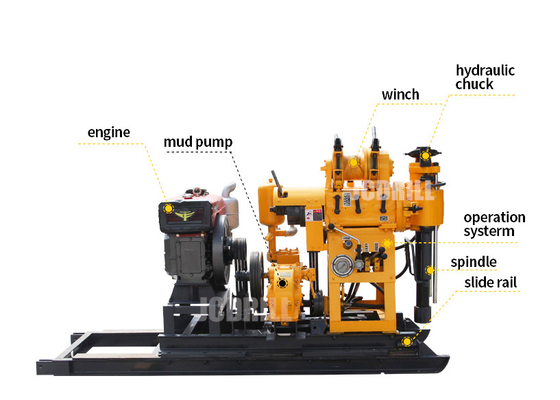

>> Characteristic
>> Specification
| Item. | JXY130 | JXY180 | JXY200 |
| Drilling depth(m) | 130m | 180m | 200m |
| Max.Hole dia soil/rock(mm) | 500, 220 | 500, 220 | 500, 273 |
| End Hole Diameter(mm) | 75 | 75 | 75 |
| Drill Rod diameter(mm) | 42, 60 | 42, 60 | 42, 50, 60 |
| Drill Angle | 90-75 | 90-75 | 90-75 |
| Weight without engine(kg) | 600/740 | 620/750 | 880/970 |
| Machine Dimension(m) | 2.4*0.8*1.3 | 2.4*0.8*1.4 | 2.7*0.9*1.5 |
| Power | |||
| Engine power(KW) | 13.2 | 13.2 | 15 |
| Spindle | |||
| Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Hoist | |||
| Single rope lift force(kg) | 1800 | 2100 | 2500 |
| Single rope lift speed(m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope diameter(mm) | 9.3 | 9.3 | 12.5 |
| Rope capacity(m) | 27 | 27 | 35 |
| Drill Mast | |||
| Rated load (Kgs) | 2000 | 2000 | 5000 |
| Effective height(m) | 6 | 6 | 6 |
| Mud Pump | |||
| Flow(L/MIN) | 95 | 95 | 145 |
| Max. pressure(Mpa) | 1.2 | 1.2 | 2 |
| Back and forth times/min | 93 | 93 | 93 |
| Inlet hose dia.(mm) | 51 | 51 | 51 |
| Outlet hose dia.(mm) | 32 | 32 | 32 |
>> Package & Shipment
>> Overseas Service&Project
>> Our Service
|
>> Pre-sale service |
>> Service During Sales |
|
>> About us
 |
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''. With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also. |
>> FAQ
|
Q: Are you original manufacturer? |
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. |
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP. |
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. |
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." |
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week. |
