Jxy200 Skid Mounted 200m Soil Test Drilling Machine

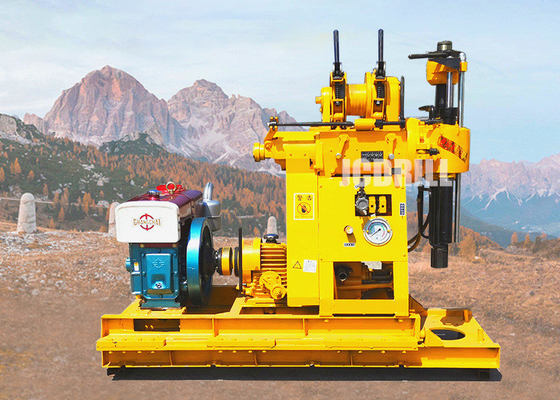

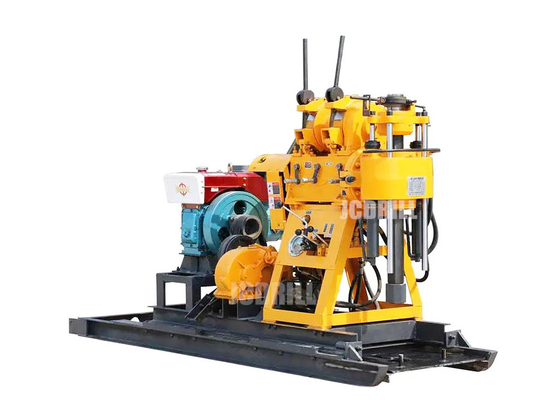

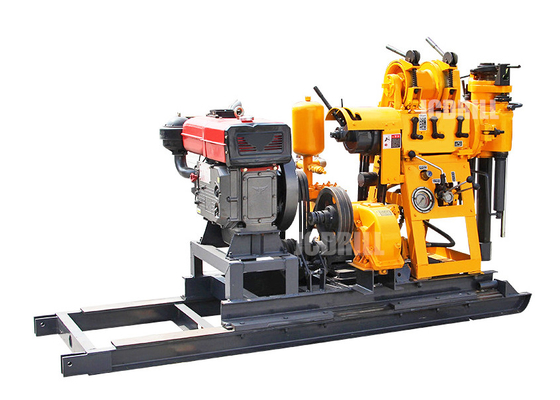

Jxy200 Skid Mounted 200m Soil Test Drilling Machine
Jxy200 Skid Mounted 200m Soil Test Drilling Machine Jxy200 Skid Mounted 200m Soil Test Drilling Machine Jxy200 Skid Mounted 200m Soil Test Drilling Machine

Large Image :  Jxy200 Skid Mounted 200m Soil Test Drilling Machine

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: JXY200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Nude
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

Jxy200 Skid Mounted 200m Soil Test Drilling Machine

Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 2000kg
Warranty: 1year Hole Depth: 200m
Usage: Water Well Dimension(L*W*H): 2700*900*1500mm
Hole Diameter: 75-400mm
High Light:

200m soil test drilling machine


skid mounted soil test drilling machine


skid mounted 200m soil investigation rig

JXY200 Skid Mounted Water Borehole Drilling Equipment With 200m Drilling



>> Introduction

JXY200 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 0

>> Characteristic

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 1

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 2

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 3

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 4

>> Specification

Item. JXY130 JXY180 JXY200
Drilling depth(m) 130m 180m 200m
Max.Hole dia soil/rock(mm) 500, 220 500, 220 500, 273
End Hole Diameter(mm) 75 75 75
Drill Rod diameter(mm) 42, 60 42, 60 42, 50, 60
Drill Angle 90-75 90-75 90-75
Weight without engine(kg) 600/740 620/750 880/970
Machine Dimension(m) 2.4*0.8*1.3 2.4*0.8*1.4 2.7*0.9*1.5
Engine power(KW) 13.2 13.2 15
Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Stroke(mm) 450 450 450
Single rope lift force(kg) 1800 2100 2500
Single rope lift speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope diameter(mm) 9.3 9.3 12.5
Rope capacity(m) 27 27 35
Drill Mast
Rated load (Kgs) 2000 2000 5000
Effective height(m) 6 6 6
Mud Pump
Flow(L/MIN) 95 95 145
Max. pressure(Mpa) 1.2 1.2 2
Back and forth times/min 93 93 93
Inlet hose dia.(mm) 51 51 51
Outlet hose dia.(mm) 32 32 32


>> Package & Shipment

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 5

>> Overseas Service&Project

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 6

>> Our Service

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 7

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.





>> About us

Jxy200 Skid Mounted 200m Soil Test Drilling Machine 8

Borehole hydraulic multifunctional core water well drilling machine for sales 200m water well drilling machine

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.


We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.


With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

>> FAQ

Q: Are you original manufacturer?


Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.



A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.


A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
