|Level:||High Pressure||Flow Rate:||5M3/min|
|Pressure:||7 Bar||Engine Power:||33kw|

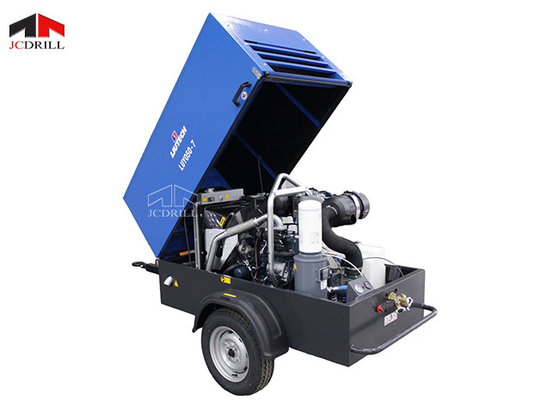

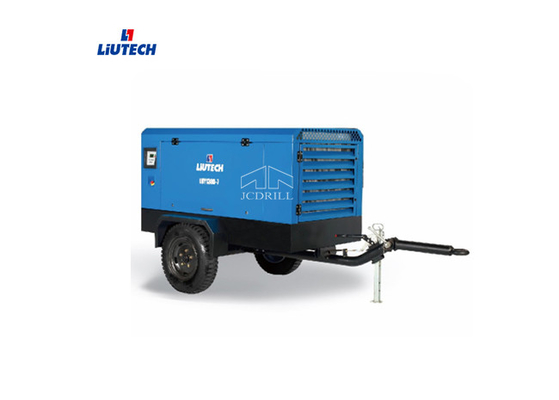

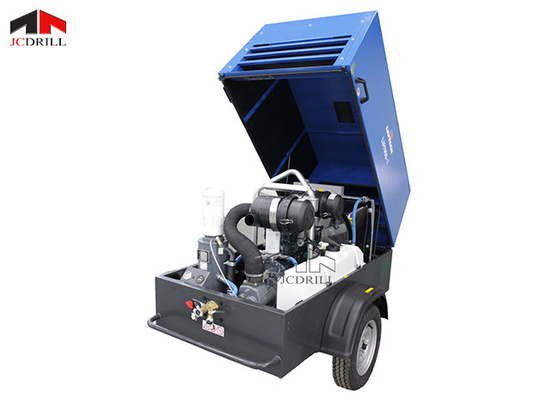

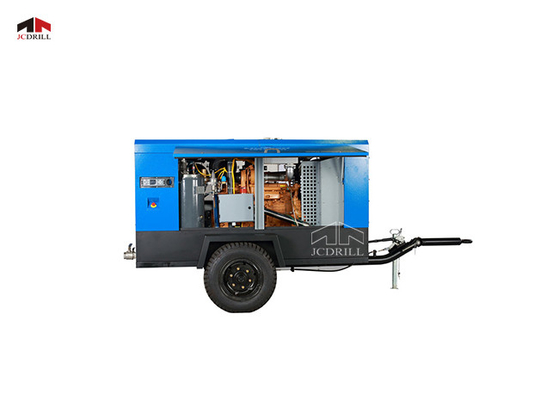

diesel portable screw compressor,
7 bar portable screw compressor,
diesel portable screw air compressor
Factory price compair parts 3000 btu air conditioner compressor with high quality
For the demolition for building and road maintenance, compressed air is essential on the job site to power the tools. Liutech offers compressor in a wide size of range to fit air flow and pressure requirements of the job - all designed to be robust and reliable to meet the needs of tough, demanding construction environments.
APPLICATIONS: On construction sites, Liutech portable air compressors are typically used to power hand-held pneumatic breakers, jack hammers, air guns, shotcrete equipment, pneumatic wrenches, nut runners and more.
They are commonly used in applications such as building sites, road maintenance, bridges, tunnels, concrete pumping and shotcreting.

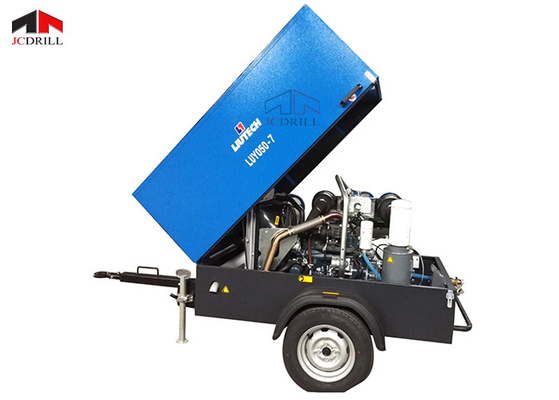

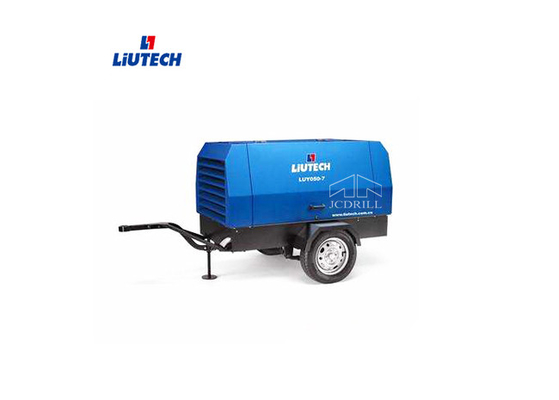

LUY050-7, LUY120-7, LUY085-14, LUY100-10, LUY130D-7
Nominal Working Pressure: 7~14bar (100~205psi)
Free Air Delivery Range:5~13m3/min (176 ~460cfm)
Ground Engineering Drilling
Dimension stone quarries, stabilization projects and foundation excavation demand equipment that can stand up to hot, dusty working conditions. Liutech compressors are designed to do just that. High-performance engines deliver the power margin to work in tough environments. Large fuel tanks allow uninterrupted operation for a full work shift. Plus, an oversized cooler pack helps ensure reliable performance in high ambient temperatures. The compressor controller, plus electrotonic engine, makes the user experience more easier, more convenient and faster. Improving working efficiency.
APPLICATIONS: Liutech compressors provide portable power for pneumatic rock drills, block cutters, dewatering pumps and hand-held pneumatic breakers. They are suited for stabilization projects on roads and building sites, as well as basement and foundation excavation for apartment blocks and other buildings.
Nominal Working Pressure: 7 to 17 bar (100 to 250 psi)
Free Air Delivery Range: 12 to 28 m3/min (400 to 988 cfm)
Utility, Abrasive Blasting
For large abrasive blasting jobs in shipyards and industrial sites, robust equipment is a must. Demanding applications such as sand blasting ships and steel require a high volume of air and equipment with which allowed you to extend working hours. Liutech compressors are the outstanding match, with a range that's suited to different blasting nozzle applications. Large fuel tanks also allow long periods of uninterrupted operation, and an after-cooler option is available for moisture-free operation in dry ice blasting applications.
RECOMMENDED MODELS: LUY100-10, LUY100-12,LUY120-7,LUY200-10, LUY220-8
Nominal Working Pressure: 7 to 10 bar (100 to 150 psi)
Free Air Delivery Range: 10 to 22 m3/min (350 to 777 cfm)
Blast Hole Drilling
Blast hole drilling jobs are often located in tough, remote areas. These conditions require rugged equipment that's up to the task – Liutech has the solution. Liutech compressors feature high-power engines to run reliably in high and low temperature environments along with high-altitude starting aid options. Large fuel tanks allow extended periods of uninterrupted operation. The machine's controls and components are easy to use and service, providing maximum uptime.
APPLICATIONS: Liutech compressors provide portable power for rock drills, dewatering pumps and hand-held breakers. Common applications include aggregate production for construction stabilization, cement production in limestone quarries and open pit mining.
Nominal Working Pressure: 14 to 21 bar (205 to 300 psi)
Free Air Delivery Range: 12 to 29 m3/min (423 to 1023 cfm)
High Pressure Drilling
Water wells and geotechnical applications that require very deep drilling depend on high-powered air compressors to drive the drill rig. Liutech compressors are designed to get the job done. They feature an efficient, fast-reacting speed regulator that delivers consistent outlet pressure for stable hammer/drill operation and a high penetration rate. High pressure air ensures faster operation, while high flow ensures performance in large drill diameter applica-tions. High ambient temperature operation is standard for reliable performance in demanding conditions, job after job.
APPLICATIONS: The Liutech range is suitable for Down The Hole (DTH) and rotary drilling, offering a comfortable operating zone for drill hole diameters from 4.5 to 15 in (114 to 381 mm). Common applications include drilling for water wells and foundations for high-rise buildings, along with geotechnical/geothermal applications.
RECOMMENDED MODELS: LUY180-19,LUY310-25,LUY390-25,LUY390-30, LUY340-34
Nominal Working Pressure: 19 to 34 bar (275 to 495 psi)
Free Air Delivery Range: 18 to 39 m3/min (635 to 1376 cfm)
Manufacture &Overseas Products
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
>> Pre-sale service
Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.
>> Select suitable model & matched equipment.
>> Strong technical support. Reply clients' questions within 24 hours.
>> Service During Sales
We have responsible team from raw material to finished products, and guarantee 100% pass rate.
>> Design and manufacture products basis of client's special equirement
>> Inspect each machine & matched accessories strictly before delivery
>> Timely inform client of production progress.
>> After Sales Service
We're always with you in after-sale service.
>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
Q: Are you original manufacturer?
|Q: Which payment terms are available to us?||Q: Which Incoterms 2010 terms can we work?|
|A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.||
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|Q: How long will the delivery time take?||Q: How about after sales service?|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."||
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
